14ga Stainless Steel Lacing Anchors Hooks Washers For Thermal Insulation
14ga Stainless Steel Lacing Achors(Hooks)&Washers For Thermal Insulation
Quick details of 14ga stainless steel lacing anchors :
Lacing anchors(Hooks) :
- Provide strong ,durable fixings even in elevated temperature applicaitons
- Used to maintain internal insulation between outer and inner liners
- Used to retain the blankets under metal cladding and jacketing
Washers :
- Used to maintain insulation in place
- Galvanized or stainless steel
- Bevelled edges
Stainless steel lacing anchors (hooks) and washers are used for thermal insulation products, we can
supply lacing anchors ,lacing washer ,lacing rings
14 ga stainless steel lacing anchors specification:
| Product name | 14 ga Stainless steel lacing anchors |
| Material | stainless steel 304,stainless steel 316 |
| Base size | 22mm (1") |
| Base thickness | 1mm |
| Pin diameter | 2mm (14ga ) |
| Pin length | 65mm (1-1/2 ") |
| self-locking washer | 25mmx0.4mm |
stainless steel lacing anchors :
 |

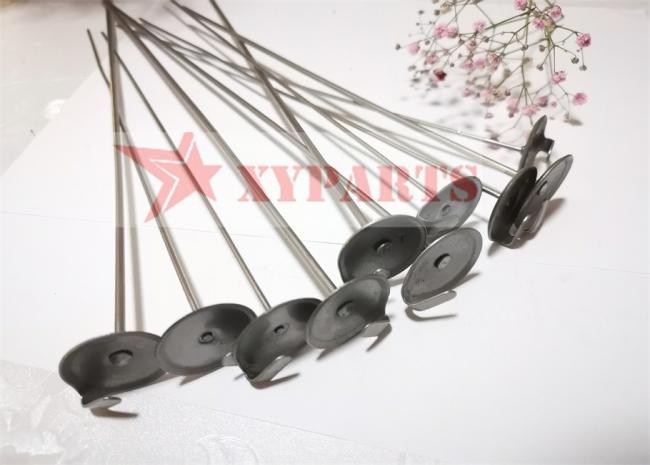

Type1 22mm Round Head Lacing Anchor 12 ga,14ga,3mm pin diameter Pin length 38mm-300mm |
 |
Type 2 30mm Round Head Head Lacing Anchor 12ga,14ga,,3mm pin diameter Pin length 38mm-300mm |
 |
Type 3 Rectangle Head Lacing Anchor 12ga,14ga ,3mm pin diameter Pin length 38mm-300mm
|
lacing anchors washer & ring
 |
 |
|

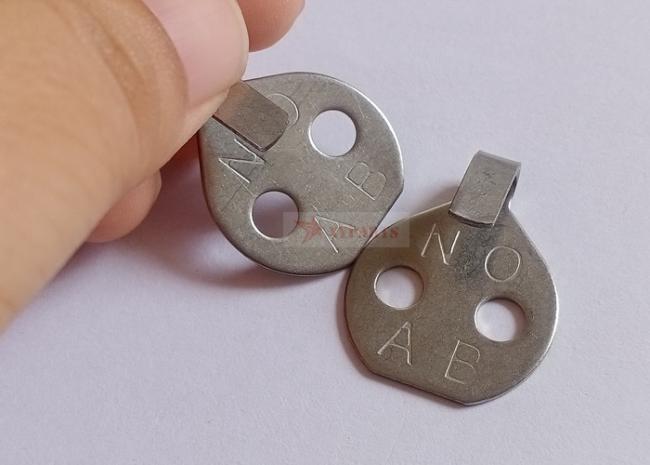

lacing washer with two hole material:ss304,316 size :25mm,22mm Thickness :1mm |
lacing washer with one hole material:ss304,316 size :25mm ,22mm Thickness :1mm |
 |
 |
|

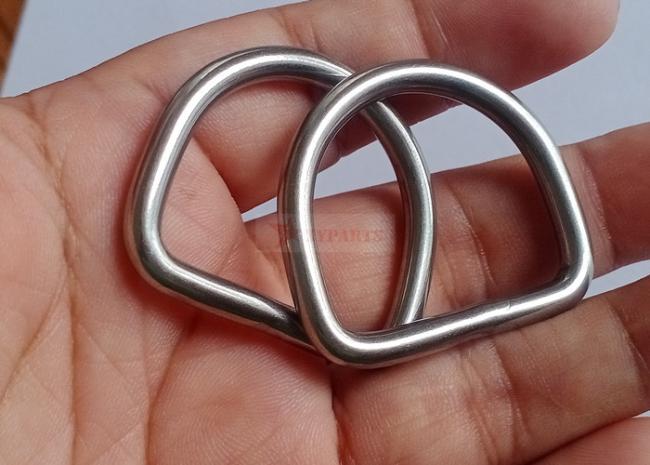

D ring material:ss304 wire diameter :3mm ,4mm size:25x30mm |
O ring material:ss304 wire diameter:3mm,4mm Thickness :40mm,50mm,60mm |
Applications of stainless steel insulation lacing anchors :
|
· Rooftop insulation (can be applied under shingles) · Process piping and tanks · Petrochemical processing · Refineries and manufacturing plants · Hot and cold food processing · Wine tank insulation · Retort ovens · Refrigerated rooms and buildings · Heat conservation applications · Boats and ships |
How to choose suitable pin length for fixing insulation material ?
=38mm insulation pin fixing for 15mm-25mm insulation materials
=63mm insulation pin fixing for 25mm-45mm insulation materials
=90mm insulation pin fixing for 45mm-70mm insulation materials
=110mm insulation pin fixing for 40mm--70mm insulation board
=145mm insulation anchors for 75mm-105mm insulation slabs
=170mm fireproof fixing for 105-130mm insulation panels
=200mm metal fasteners for 135mm-160mm insulation boards

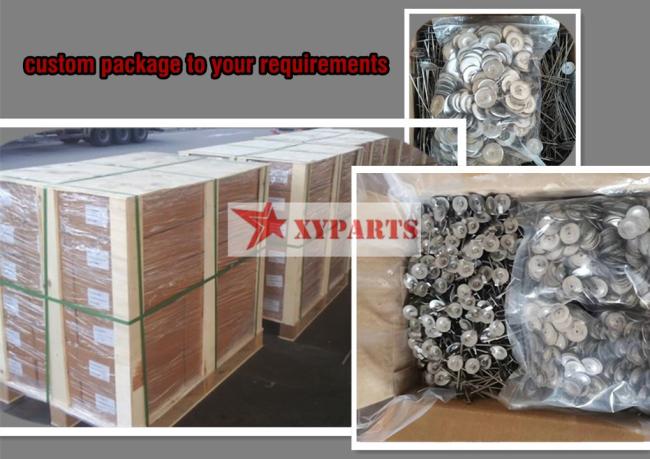

The package of lacing anchors :
>> Package
1. 500 pcs/800pcs/1000 pcs per carton. 64 cartons per pallet.
2. to be your requirements.
>>> Delivery
Sample: DHL/EMS/UPS/TNT/EXPRESS
Large Order: we recommend you by SEA ,or by AIR if in an emergency.
