63.5 MM Square Shape Metal Speed Clips For Fixing Insulaton Metal Nails
63.5 MM Square Shape Metal Speed Clips For Fixing Insulaton Metal Nails
Quick details of the Square Speed Clips
- Name :Square speed clips , also named square self locking washers. square speedfix clips
- Material: Stainless steel in common . also could be mild steel or aluminum alloy.
- Thickness of the material:0.4mm-1.0mm, 0.4mm & 0.5mm in common
- Shape : square shape
- Size : 30mm,32mm,40mm, 50mm,63.5mm in common
- Hole size :0.105'', due to the fixing pins diameter.
- Features: Enough hard; firm locking; no burr and smooth
- Surface treatment: Polished finished for stainless steel material washer, zinc coated for mild steel material, UV coated for aluminum.
|
Name: 2.5" Galvanized Steel Square Self Locking Washers Material: Galvanized Steel, Stainless Steel , Aluminum Size: 2-1/2" x 2-1/2" (63.5mm x 63.5mm),30mm,40mm,50mm etc Thickness: 0.5mm To Fix: 1. perforated base insulation pins 2. self adhesive insulation pins 3. metal lacing anchors 4. CD weld pins 5. Bi-metallic pins
|
 |

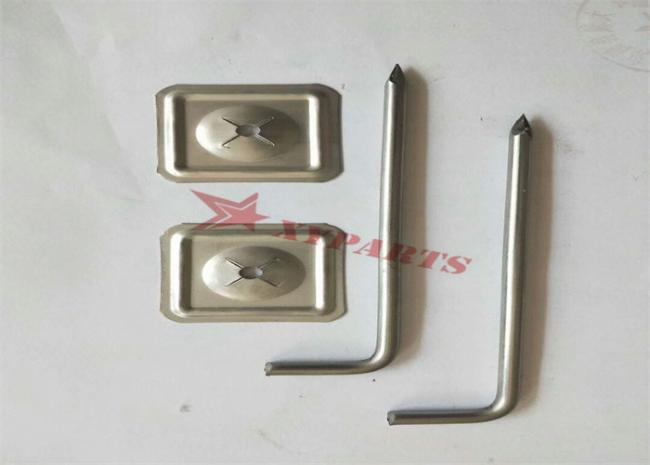

Ref photos of the Square Speed Clips
Specifications of the types of the metal speed clips
 |
Name: Square speed clips Material: Galvanized steel or stainless steel or aluminum Thickness: 0.4mm, 0.5mm, 0.6mm Diameter: 29x31mm, 32mm, 50mm, 63.5mm etc. |
  |
Name: Round Speed Clips Material: Galvanized steel or stainless steel or aluminum Thickness: 0.4mm, 0.5mm, 0.6mm Diameter: 20mm, 25mm, 30mm, 32mm, 35mm, 38mm, 50mm etc. |
   |
Name: Dome cap self locking washers Material: Galvanized steel or stainless steel or aluminum Thickness: 0.4mm, 0.5mm, 0.6mm Diameter: 22mm, 27mm, 30mm, 32mm, 38mm, 40mm, 50mm etc. |
Application of the Square Speed Clips
1. Simply press the self-locking washer onto the pin up to the insulation until the desired
position is reached.
2. Then clip off, (or bend over) the remaining portion of pin for a permanent attachment.
3. Both Round or Square self-locking washers are available as a matter of design or application
preference.
4. The domed, multi-lanced hole design provides for ease of locating washer on pin and positive
locking.
5. Most styles of washers are manufactured with a beveled edge to prevent the washer from
cutting into the insulation facing.
FAQ Of Xiangyi Metal Product Co.,Ltd
1. Are you a manufacture or a trader?
We are a manufacture, located in Hebei province, China.
2. Do you support product customization?
Yes, the material, the surface finish, the thickness, the center hole size all could be customized.
3. Can i get samples?
Yes, samples for quality confirm are supported in our company.
4. How do you control and ensure product quality?
1) Confirm with you every details before quoting.
2) Before production, we will reconfirm all the details again.
3) During production, we strictly implement "IATF 16949 Quality Management System" standard.
4) We will send you videos and pictures during the production and shipment process.
5. Advantage Of Xiangyi Parts
Cooperate with us, we can ensure:
1) Competitive price: we sale what we manufacture.
2) On-time delivery: we have the auto-production line to ensure the on-time delivery.
3) Excellent quality: we have rich experience for the cd weld pins, our products are in line with
international standard.
4) Good after-sale service: we offer good after-sale service for each order.
