Steam Trap Heat Shield Thermal Insulation Jacket SS Metal Lacing Anchors
Steam Trap Heat Shield Thermal Insulation Jacket SS Metal Lacing Anchors
QUICK DETAILS OF LACING ANCHORS
- Material: stainless steel 304/316 in common
- pin thickness: 2mm, 2.2mm in common
- pin length: 65mm-250mm in common
- lacing anchor types: US standard, EU standard and AU standard
- Head types: 22m round head hook and 30mm round head hook
- Other parts: self speed clips, dome cap washer, Lacing wire, lacing ring, lacing hook and lacing washer
DESCRIPTION OF LACING ANCHORS
Lacing Anchors are used in the fabrication of insulation blankets or removable covers/pads. The nail is pressed through the insulation material, so the hook portion sits on the top edge and the nail is secured on the opposite side of the insulation with a washer. The two sides of the blanket can then be "laced" together by the hooks with tie wire.
Technical date of lacing anchors
|
pin diameter |
head diameter |
head material thickness |
hook length |
length of the lacing anchor |
|
14 ga (.080) |
7/8"/30mm |
1mm |
11mm |
1"-4-7/8" |
|
12 ga (.106) |
7/8"/30mm |
1mm |
11mm |
1"-4-7/8" |
|
US Standard of lacing anchor |
EU standard of lacing anchors |
Australia standard of lacing anchors |
|
The head diameter is 1", |
The head diameter is 30mm, |
People in Australia will need the US standard or EU standard weld pins, someone will need the 14Ga pin. |

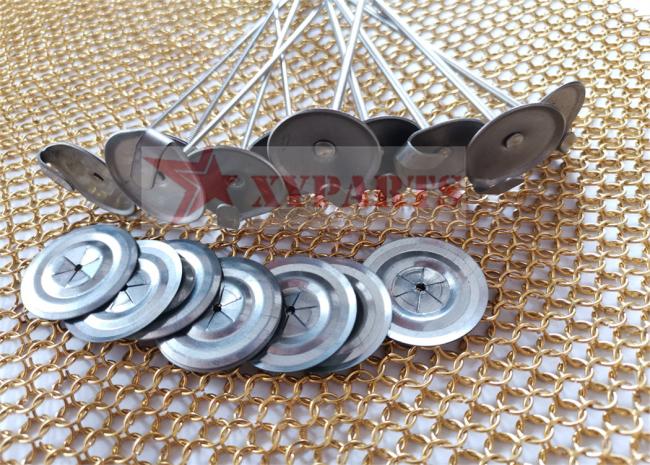

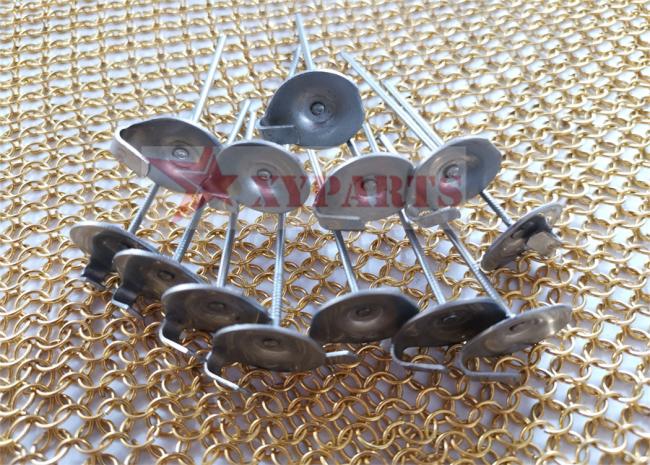

Images of lacing anchors
Other fixing parts for lacing anchor- Self locking washer, dome cap , lacing hook, lacing rings
Applications of the lacing anchors
- Rooftop insulation (can be applied under shingles)
- Process piping and tanks
- Petrochemical processing
- Refineries and manufacturing plants
- Hot and cold food processing
- Wine tank insulation
- Retort ovens
- Refrigerated rooms and buildings
- Heat conservation applications
- Boats and ships
