Thermal Insulation Stainless Steel Metal CD Weld Pins For HAVC Air Ducting
Price:
Negotiable
MOQ:
10000SETS
Delivery Time:
10 WORK DAYS
Brand:
HUIHAOCUSTOM
Product Description
Thermal Insulation Stainless Steel Metal CD Weld Pins For HAVC Air Ducting
Quick details of the CD weld pins
- Types including: Weld nails, cupped head pins, duct pins, bi-metallic pins
- Material: mild steel, stainless steel, aluminum alloy
- Surface treratment: copper plated or zinc coated for mild steel pins. polished for stainless steel and aluminum pins.
- Pin diameter: 2.7mm and 3mm
- Length: 19mm-300mm
 |
||||
| Simple construction | high fficiency | saving labors | Eeasy weld to fasten the insulation | Pins sharp for easy go through any insulation |
Specification of the CD weld pins
| Photo | CD CUP HEAD PINS | |||
 |
Part No. | pin diameter | round base size | pin Length |
| HH-12 | 2.7mm | 1-1/2" | Stnd up to 6" | |
| HH-10 | 3.4mm | 1-1/2" | Special Order | |
| ZG-14 | 2.0mm | 1-3/16" | Up to 2-1/2" | |
| ZG-12 | 2.7mm | 1-3/16" | Stnd up to 6" | |
|
WELD PIN |
|||||
|---|---|---|---|---|---|
 |
SIZE | D | STEEL FD | ALUM. FD | L-Length |
| 14 GA | .080 | .160 | --- | 38mm-280mm | |
| 12 GA | .105 | .180 | .230 | 55mm-300mm | |
| 10 GA | .135 | .195 | .250 | 65mm-300mm | |
| 9 GA | .148 | .230 | --- | 90mm-300mm | |
| photo | name | Specifications of the Bimetallic Insulation Pins |
 |
Material | Aluminum base material +Stainless steel /Copper/Zinged steel |
| Base size | 6*13mm in common | |
| Pin diameter | 3.0mm in common , Customized diameter is also available | |
| Pin types | sharp point and flat head | |
| Length | 25-300mm, length could be customized . |

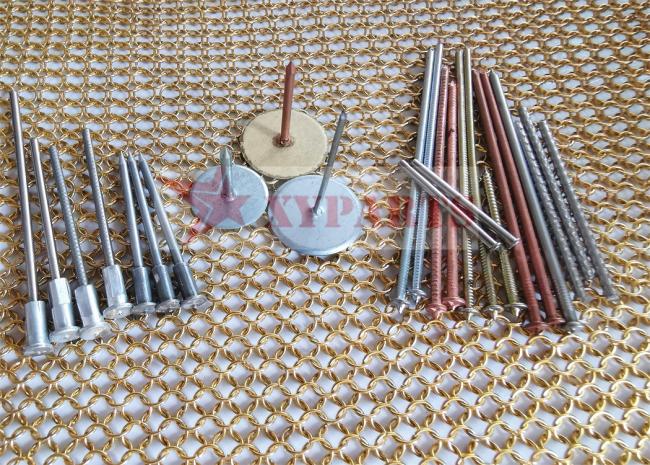

Images of the CD weld pins

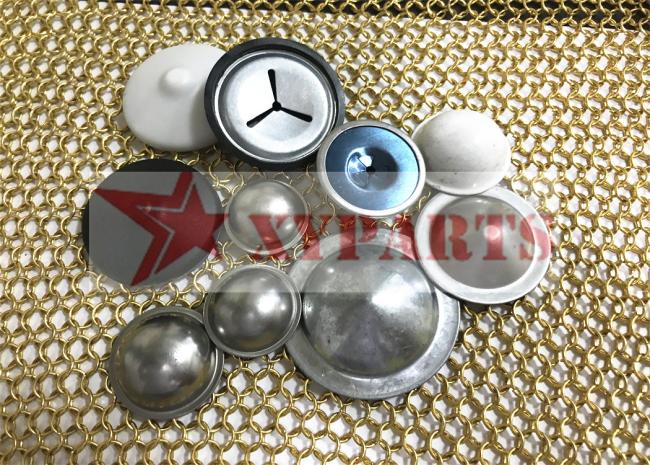

Installation parts-self locking washer / dome cap washers
application equipments of CD weld pins
-
PowerPinner 7100 Light Duty, Hand Welder
-
PowerPinner 7200 Heavy Duty, Portable Hand Welder
-
PowerPinner 7005 Rapid Fire Fixed Head Welder
-
PowerPinner 7105 Rapid Fire Moving Head Welder
-
PowerPinner 50 Multi-head Welder
-
SAM Replacement Controller for Coil Line Pinners
| recommended for | pin length before welding |
| 1/2" insulation(all densities) | 12.67mm |
| 1" insulation(1-1/2"ib density) | 17.63mm |
| 1" foam | 25.55mm |
| 1"insulation(3ib densities) | 23.72mm |
| 1-1/2" insulation(all densities) | 28.42mm |
| 2"insulation(1-1/2"-2" ib density) | 37.95mm |
| 2"insulation(3ib densities) | 48.77mm |
| 3"insulation(all densities) | 69.85mm |
| 4" insulation(all densities) | 95.00mm |
|
