Metal Stainless Steel Cup Head CD Weld Pins Install With Automatic Pin Welder

Specification of the cup head CD weld pins

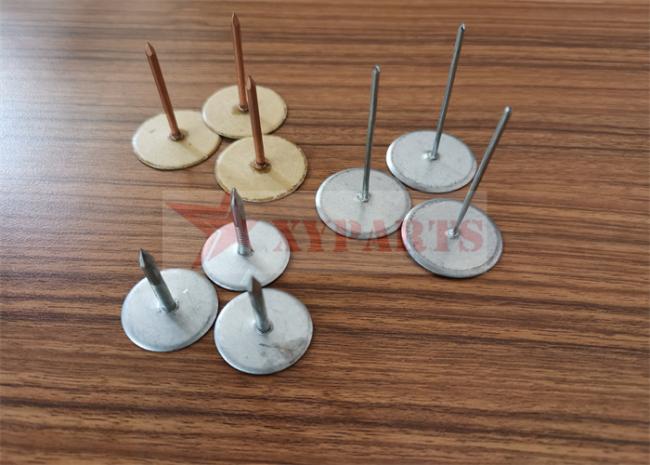

Photo	CD CUP HEAD PINS
	Part No.	pin diameter	round base size	pin Length
	HH-12	2.7mm	1-1/2"	Stnd up to 6"
	HH-10	3.4mm	1-1/2"	Special Order
	ZG-14	2.0mm	1-3/16"	Up to 2-1/2"
	ZG-12	2.7mm	1-3/16"	Stnd up to 6"

---

Features of the Cup head CD weld pins

• Beveled Edge Cap: Prevents tearing of duct liner
• Faster Welds: Forged diamond point design creates more electrical resistance for faster
• Better Plating:Zinc and Chromate plating exceeds SMACNA standards and gives a more professional appearance.
• Reduced Down Time:Consistent point quality reduces frequency of machine adjustments.
• Stronger Welds: Hardened steel point assures positive electrical contact for complete sheet to pin fusion.
• Applied with Standard Equipment: Easily applied with Automatic Pin Welder or most standard hand held or hopper fed resistance welders

Installation introduction of the cup head cd weld pins with welders

1. CD welding pins is a insulation fastener which is used to fasten the insulation materials to sheet metal of air duct, other heating, ventilating or air conditioning.

2. A fabricated part made up of a weld pin and a staked on retaining washer,it is usually applied with a capacitor discharge stud welder.

3. The method of application is to place the insulation onto a metal surface, push the Cup Head weld pin through the insulation, and weld affix (mount) the entire fabricationin one step. Now it is widely accepted as labor saving fasteners in the thermal and acoustical insulation markets for use in industrial and commercial applications.

Images of the cup head CD weld pins

application equipments of cup head CD weld pins

• PowerPinner 7100 Light Duty, Hand Welder

• PowerPinner 7200 Heavy Duty, Portable Hand Welder

• PowerPinner 7005 Rapid Fire Fixed Head Welder

• PowerPinner 7105 Rapid Fire Moving Head Welder

• PowerPinner 50 Multi-head Welder

• SAM Replacement Controller for Coil Line Pinners

Package details of cup head weld pins
