Description details of round cupped head cd weld nails
Cup Head Capacitor Discharge CD weld nails are manufactured to be a single robust fastener. The precision attachment of cap and shank allows for better contact when welding. The optional protected adhesive on the underside of the cap acts as a superior insulator over traditional paper washers. The coating substantially reduces arcing when fastening foil face insulation, while the forged diamond point defines the standard of sharpness to cleanly pierce the toughest insulation.
Specification of the cup head CD weld pins
| cup head diameter | cup head material | pin diameter | pin length | pin material |
| 20mm | mild steel, stainless steel, copper | 2.7mm, 3mm | 10mm-120mm | mild steel, stainless steel, copper |
| 25mm | mild steel, stainless steel, copper | 2.7mm, 3mm | 10mm-120mm | mild steel, stainless steel, copper |
| 30mm | mild steel, stainless steel, copper | 2.7mm, 3mm | 10mm-120mm | mild steel, stainless steel, copper |
| accept custom | mild steel, stainless steel, copper | accept custom | accept custom |
| standard types | details of standard |
| For US, Canada | the standard washer diameter is 1.187"(30mm), the pin diameter is 12GA(2.7mm), the washer can with or without kraft paper. the length from 3/8" to 4-7/8" |
| For EU countries | the washer diameter is 30mm, 38mm, The pin diameter is 12GA(2.7mm) and 14GA(2.0mm). |
| noted | the washer can with or without kraft paper, the pin can be with or without plastic sleeve. the length from 9.5mm to 140mm. we also accept the special order for other lengths. |
| Features of cupped head CD weld nails |
|

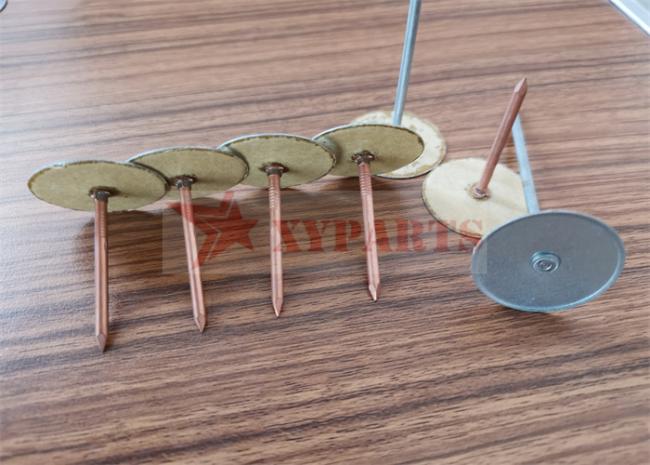

Images of the cup head CD weld pins
application equipments of cup head CD weld pins
The method of application is to place the insulation onto a metal surface, push the Cup Head weld nails through the insulation, and weld affix (mount) the entire fabricationin one step. Now it is widely accepted as labor saving fasteners in the thermal and acoustical insulation markets for use in industrial and commercial applications.
| recommended for | nail length before welding |
| 1/2" insulation(all densities) | 12.67mm |
| 1" insulation(1-1/2"ib density) | 17.63mm |
| 1" foam | 25.55mm |
| 1"insulation(3ib densities) | 23.72mm |
| 1-1/2" insulation(all densities) | 28.42mm |
| 2"insulation(1-1/2"-2" ib density) | 37.95mm |
| 2"insulation(3ib densities) | 48.77mm |
| 3"insulation(all densities) | 69.85mm |
| 4" insulation(all densities) | 95.00mm |
Package details of cup head weld pins
| 12Gauge *2.5”cupped head pins | 1000Pcs | 26×26×18CM | 5.5KG |
| 12Gauge *4.5”cupped head pins | 1000Pcs | 26×26×32CM | 7.5KG |
| 14Gauge *2.5”cupped head pins | 1000Pcs | 26×26×18CM | 4.5KG |
| 14Gauge *4.5”cupped head pins | 1000Pcs | 26×26×32CM | 6.0KG |
