Fiberglass Rigid Board Cupped Head Capacitor Discharge Weld Pins
Price:
Negotiable
MOQ:
10000SETS
Delivery Time:
10 WORK DAYS
Brand:
HUIHAOCUSTOM
Product Description
Fiberglass Rigid Board Capacitor Discharge Cupped Head Weld Pins Fasteners
Rock wool cupped head weld pins fasteners
| Product Name: | cupped head Weld pins fasteners |
| Brand Name: | HUIHAOCUSTOM |
| Model Number: | CD/25/30 |
| Place of Origin: | RAOYANG city, China (Mainland) |
| Diameter: | 12ga, 14ga |
| Head size: | 25.4mm,30mm,38mm As required |
| Length: | mix 3/8" max16",As required |
| Material: | Galvanized Steel, Stainless Steel available on special orders |
| Packaging Details | Packing can be customized as per equirements |
| Production workmanship: | Automated production |
| Surface treatment: | zinc coated/ copper plated |
| Washer Dia.: | 25mm/30mm for your choose |
| Type: | rock wool insulation manufacturer |
| application equipments of Thermal CD Weld Nails |
|
Specification of Capacitor Discharge Cupped Head Weld Pins fasteners
| base size | base material | pin diameter | pin length | pin material | finished |
| 20MM | mild steel, stainless steel, copper | 2.7MM,3MM, 3.4MM | 10MM, 25MM, 38MM | mild steel, stainless steel, copper | zinc/ copper plating |
| 25mm | mild steel, stainless steel, copper | 3mm | 10mm-65mm | mild steel, stainless steel, copper | zinc/ copper plating |
| 30mm | mild steel, stainless steel, copper | 3.4mm | 10mm-65mm | mild steel, stainless steel, copper | zinc copper plating |
| custom | support custom | support custom |
Features of Capacitor Discharge Cupped Head Weld Pins fasteners
- Beveled Edge Cap: Prevents tearing of duct liner
- Faster Welds: Forged diamond point design creates more electrical resistance for faster
- Better Plating:Zinc and Chromate plating exceeds SMACNA standards and gives a more professional appearance.
- Reduced Down Time:Consistent point quality reduces frequency of machine adjustments.
- Stronger Welds: Hardened steel point assures positive electrical contact for complete sheet to pin fusion.
- Applied with Standard Equipment: Easily applied with Automatic Pin Welder or most standard hand held or hopper fed resistance welders
Installation introduction of Capacitor Discharge Cupped Head Weld Pins
| recommended for thickness of the insulation | pin length before welding |
| 1/2" insulation(all densities) | 12.67mm |
| 1" insulation(1-1/2"ib density) | 17.63mm |
| 1" foam | 25.55mm |
| 1"insulation(3ib densities) | 23.72mm |
| 1-1/2" insulation(all densities) | 28.42mm |
| 2"insulation(1-1/2"-2" ib density) | 37.95mm |
| 2"insulation(3ib densities) | 48.77mm |
| 3"insulation(all densities) | 69.85mm |
| 4" insulation(all densities) | 95.00mm |

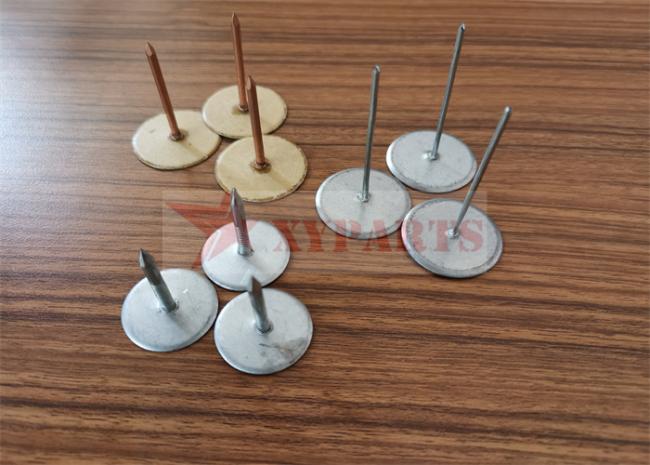

Images of Duct Liner cupped head weld pins fasteners
