22mm Metal Stainless Steel Lacing Hooks For Fasten Insulation Blankets
22mm Metal Stainless Steel Lacing Hooks For Fasten Insulation Blankets
Quick details of the stainless steel lacing hooks
- name: lacing hooks , lacing washer, connecting metal hook
- standard size: 22mm
- material: 1mm thickness hardnessn stainless steel material
- hook size: 5mm x11mm
- one side is stamped " A " " B "
- Lacing hook with two holes
- Material hardness data : A2-80,A4-80
Technical specification details of the stainless steel lacing hooks
|
specification of Stainless Steel Lacing Hook
|
|||
|
material
|
materil thickness
|
size
|
hole size
|
|
stainless steel 304
|
1mm
|
22mm
|
5mm
|
|
type
|
hook length
|
hook width
|
custom
|
|
one hole type,
two holes type
hook type
washer type
|
|
|
we can be according to your requirements to design the types
|
| Lacing Hook and Two-Hole Washer System provides an even lower cost and the same easy-to-lace design. The tie wire application provides more blanket flexibility with equally secure performance. The Series 80 Lacing Hook is similar in function and appearance to the Lacing Anchors. The Series 80 Lacing Hook is stocked in mild steel, cadmium plated and stainless steel. All Series 80 Lacing Hooks are stamped "NO AB" to indicate no asbestos at no additional cost. | |||
| Usages for |
|
||

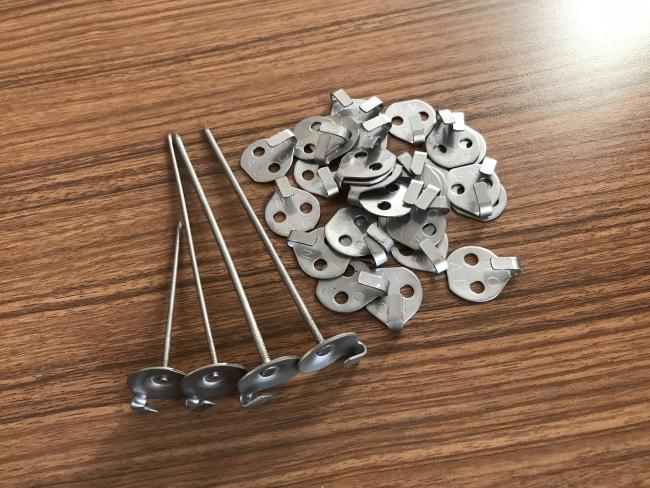

Images details of the stainless steel lacing hooks
Applications of the stainless steel lacing hooks
Lacing hooks can also be used with a Lacing Ring and a second L100 lacing washer, which are fastened to the insulation blanket with a tie wire. One advantage with the lacing system is the positive detention of the lacing wire. The insulation blanket can be loosened for access or repositioning, without having to worry about the lacing wire falling away from the hooks
- Removable and Reusable
- Simple and Quick Installation
- Long Lasting and Durable
- No Tools Required
- Weatherproof, Chemical Resistant, UV Resistant
- No Equipment Downtime
- Blocks the Flame Path and Retards Heat Flow
How to Install the insulation lacing hooks
1: prepare the insulation blanket or removable cover
2: press the lacing anchor through the insulation
3: press the self locking washer into the pin to fasten the insulation
4: bend over or clip off the pin
5: install the insulation blanket or removable cover
6: Lace the hook by lacing tie in order to fasten the insulation.
