3mm diameter Metal CD (Capacitor Discharge) weld pins for power plant insulation

Quick details of the CD (Capacitor Discharge) weld pins

CD (Capacitor Discharge) weld pins is one kinds of welding nails used for thermal insulation of a boiler in a power plant, which is used to fix the thermal insulation material. The nail is welded to the surface of the boiler in the power plant through a capacitive discharge welder, the thermal insulation material is installed on the welded nail, the thermal insulation material is fixed with self locking washers , and finally bent to cut off the excess nail tip, or locked on the top with a general cap to achieve  protective effect.

• Material treatment : Mild steel and stainless steel in common
• Diameter of the CD weld pins: 3.0mm in common , and other diameter is also ok for large order .
• Length of the CD weld pins : 40mm, 50mm,65mm,70mm,75mm,90mm,110mm ,140mm in common , customized length is also ok.
• Surface treatment : copper plated , zinc coated for MS material, polished for stainless steel material
• Application: On marine/boat for fixing board material , fixing rock woool in power plant, etc
• Features: easy welding, easy bending, easy installing, and much more competitive than bimetallic pins

Technical data of the CD (Capacitor Discharge) weld pins

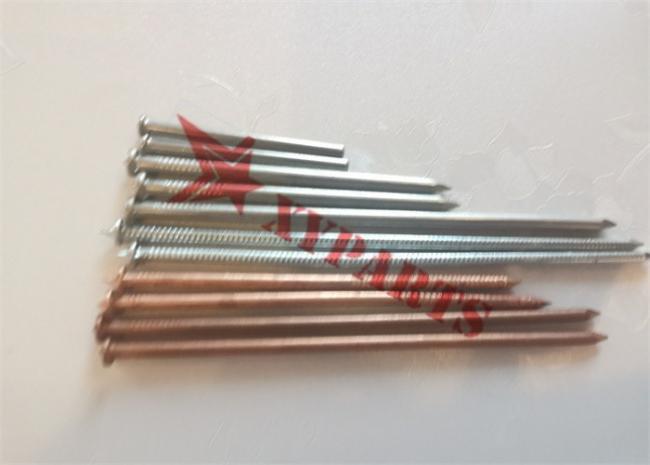

Images of the CD (Capacitor Discharge) weld pins

Applications of the CD (Capacitor Discharge) weld pins

The CD weld pins are primarily designed as welded fasteners to secure blanket and board insulation to metal heating and air conditioning ducts, ovens, tanks and other hot or cold equipment.

The fixing parts of the CD (Capacitor Discharge) weld pins could be round self locking washers , square self locking washers, also could be dome cap washers .

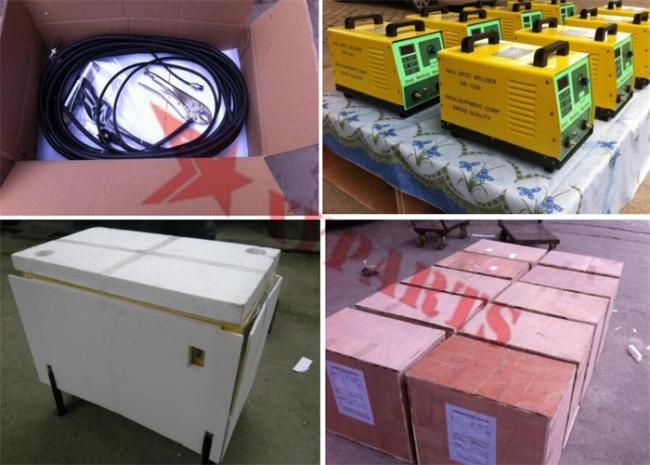

The welding machines for the CD (Capacitor Discharge) weld pins
