12ga Galvanized Steel Marine Weld Pins With Self Locking Wahser For Thermal Insulation

Quick details of the Marine Weld Pins

 Marine weld pins are mainly used in industries such as ship pipe insulation welding, air conditioning and ventilation pipe insulation welding, and offshore oil platform insulation welding.

• Material treatment : Mild steel
• Diameter of the CD weld pins: 2.7mm,3.0mm,3.4mm in common
• Length of the CD weld pins : 40mm, 50mm,65mm,70mm,75mm,90mm,110mm ,140mm in common , the length could be made accordfing to the customers' requirements.
• Surface treatment : Zinc coated , galvanized /galvanised ,
• Application: On marine/boat for fixing board material , fixing rock woool in power plant, etc
• Features: easy welding, easy bending, easy installing, and much more competitive than bimetallic pins

Technical data of the Marine Weld Pins

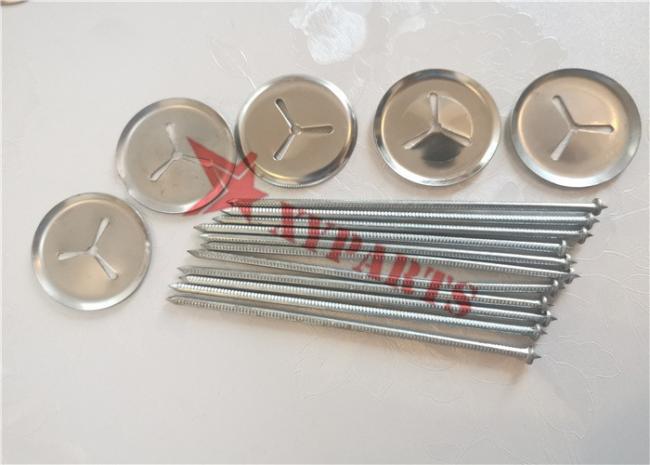

Images of the Marine Weld Pins

How to use the Marine weld pins

Using method: Use a welding nail gun to directly weld to the equipment when installing the insulation layer on the body. The solder joints are very small, and the temperature effect on the body surface can be ignored.

Marine Weld Pins are divided into two parts consisting of weld pins & washers  The weld pins could be mild steel material and stainless steel material . the surface is plated with copper or galvanized, and the lock plates are stamped from galvanized sheets. The product's load-bearing and compressive performance is very good, not easy to deform, moisture-proof, noise-proof and other advantages. The overall effect can be quite good.

We also could provide the Welding machine for installing .

The packing of the Marine Weld Pins

The Marine weld pins usuallly packing with plastic bags +cartons+wooden case /pallet.

It also could be packing according to the customers requirements.
