Galvanized Steel Perforated Insulation Support Nails To Attached Wood Fiber Poured Gypsum Deck
Price:
Negotiable
MOQ:
10000 pcs
Delivery Time:
10 work days
Brand:
HUIHAOCUSTOM
Product Description
Galvanized Steel Perforated Insulation Support Nails To Attached Wood Fiber Poured Gypsum Deck
Descripition details of perforated insulation support nails
perforated insulation support nails are also named perforated base pins, perforated base insulation hangers and rock wool insulation pins. it is made of softly nails and hardness metal base. XIANGYI peforated base insulation support nails Include three types design currently. but we slao accept customized orders.
Specification details of the perforated base insulation support nails
TYPE1-50MM Square type peforated base insulation support nails
| modle | BASE TYPE | SUPPORT NAIL DIA | LENGTH OF NAILS |
| SQ-50-55 | 0.5MM X50MM | 2.7MM, 3MM | 55MM |
| SQ-50-63 | 0.5MM X50MM | 2.7MM, 3MM | 63MM |
| SQ-50-70 | 0.5MM X50MM | 2.7MM, 3MM | 70MM |
| SQ-50-90 | 0.5MM X50MM | 2.7MM, 3MM | 90MM |
| SQ-50-100 | 0.5MM X50MM | 2.7MM, 3MM | 100MM |
| SQ-50-110 | 0.5MM X50MM | 2.7MM, 3MM | 110MM |
| SQ-50-120 | 0.5MM X50MM | 2.7MM, 3MM | 120MM |
| SQ-50-130 | 0.5MM X50MM | 2.7MM, 3MM | 130MM |
| SQ-50-140 | 0.5MM X50MM | 2.7MM, 3MM | 140MM |
| SQ-50-160 | 0.5MM X50MM | 2.7MM, 3MM | 160MM |
| SQ-50-180 | 0.5MM X50MM | 2.7MM, 3MM | 180MM |
| SQ-50-203 | 0.5MM X50MM | 2.7MM, 3MM | 203MM |
| SQ-50-230 | 0.5MM X50MM | 2.7MM, 3MM | 230MM |
| SQ-50-250 | 0.5MM X50MM | 2.7MM, 3MM | 250MM |
TYPE2-40MM Square type perforated base insulation support nails
| modle | BASE TYPE | SUPPORT NAIL DIA | LENGTH OF NAILS |
| SQ-40-15 | 0.4MM X40MM | 2.5MM, | 15MM |
| SQ-40-25 | 0.4MM X40MM | 2.5MM, | 25MM |
| SQ-40-35 | 0.4MM X40MM | 2.5MM, | 35MM |
| SQ-40-40 | 0.4MM X40MM | 2.5MM, | 40MM |
| SQ-40-45 | 0.4MM X40MM | 2.5MM, | 45MM |
| SQ-40-55 | 0.4MM X40MM | 2.5MM, | 55MM |
| SQ-40-63 | 0.4MM X40MM | 2.5MM, | 63MM |
TYPE3-40MM Rouind base perforated insulation support nails
| modle | BASE TYPE | SUPPORT NAIL DIA | LENGTH OF NAILS |
| R-40-38 | 0.5MM X50MM | 2.7MM, 3MM | 38MM |
| R-40-45 | 0.5MM X50MM | 2.7MM, 3MM | 45MM |
| R-40-50 | 0.5MM X50MM | 2.7MM, 3MM | 50MM |
| R-40-55 | 0.5MM X50MM | 2.7MM, 3MM | 55MM |
| R-40-63 | 0.5MM X50MM | 2.7MM, 3MM | 63MM |
| R-40-70 | 0.5MM X50MM | 2.7MM, 3MM | 70MM |
| R-40-90 | 0.5MM X50MM | 2.7MM, 3MM | 90MM |

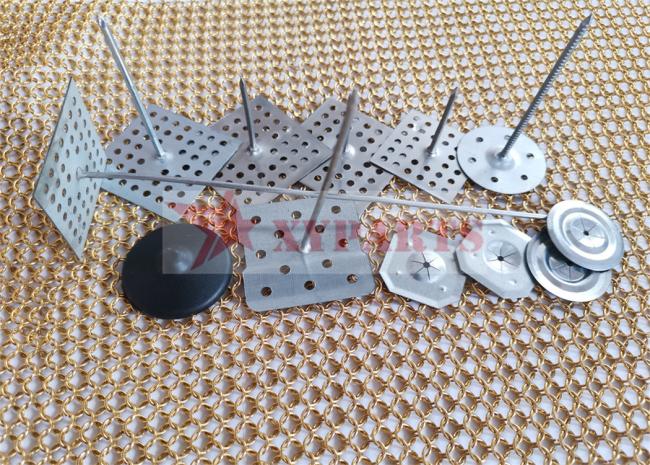

Image details of the perforated base insulation support nails
| Material | Pin: Mild steel, Aluminum, Stainless steel |
| Base: High strength galvanized steel, Aluminum, Stainless steel | |
| Surface treatment | Polishing, Galvanzied plating |
| Product features | Firm conjunction between bases and pins |
| Pins are soft, easy bending over | |
| Porous base designed for permeating glue easily | |
| Length tolerance ±0.1mm |
Application of perforated base insulation support nails
An all metal fire resistant anchor that is both fast and easy to install.
Suitable for fixing all types of insulation to concrete, brick, stone or block base material.Insulation fastening solutions for concrete and masonry, suitable for insulation materials such as mineral wool, EPS, XPS and fibreglass.
