Stainless Steel Capped Starlock Washers For Imperial Round Shafts
Stainless Steel Capped Star Lock Washers For Imperial Round Shafts
Specifications Of The Stainless Steel Capped Star Lock Washers:
Star lock washers for use not only on precision-machined shafts but also on tubes, cast parts,
plastic shafts and studs.
Available for shaft sizes 1.5mm to 25mm. The washers are pushed on to the shaft causing
the prongs to grip the shaft tightly, locking the washers in place with initial tension.
 |
|
|
Outside D |
Height H |
Shaft Penetration T max |
Number Of Legs |
Shaft d |
|
10.6mm |
3mm |
2.5mm |
4 |
1/16" 3/32" 1/8" |
|
12.3mm |
3.8mm |
3mm |
5 |
5/32" |
|
12.3mm |
3.8mm |
3mm |
6 |
3/16" 7/32" |
|
16.1mm |
5.1mm |
4mm |
6 |
1/4" 9/32" 5/16" |
|
19.7mm |
5.8mm |
4.5mm |
6 |
11/32" 3/8" 13/32" |
|
26mm |
7.5mm |
6mm |
6 |
7/16" 1/2" 17/32" 5/8" |
|
38.2mm |
11.7mm |
8.7mm |
9 |
3/4" |
|
39.8mm |
13mm |
9.5mm |
9 |
7/8" |
|
43mm |
12.5mm |
9.5mm |
9 |
1" |
Detailed Images Of The Capped Starlock Washers:
|

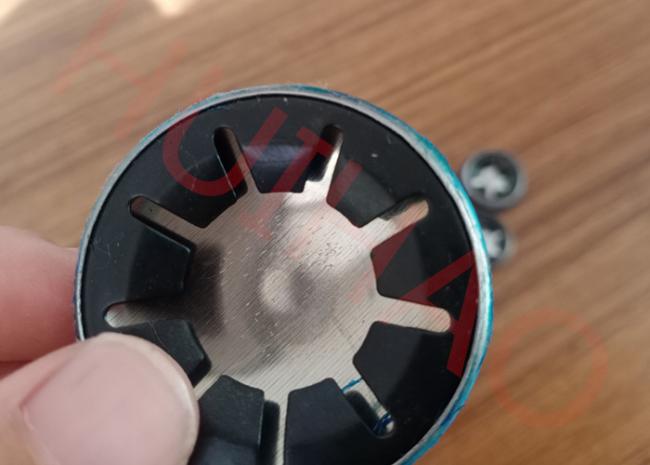

Capped star lock washer with carbon steel insert |

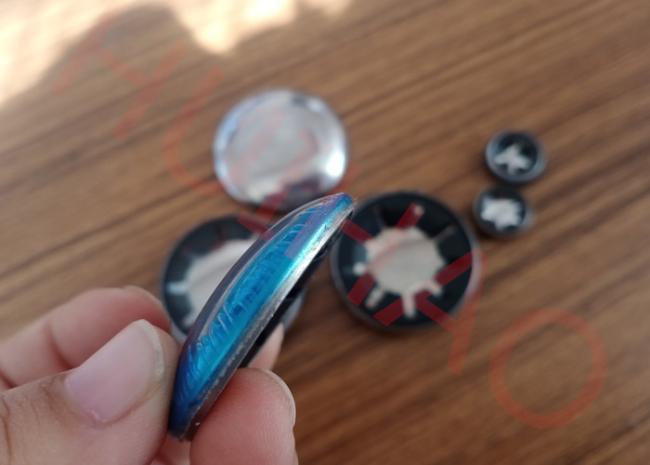

Capped star lock washer with ss material cap |
 |
 |
Application Of The Stainless Steel Capped Starlock Washers:
Automotive
Window installation
Transportation
Medical technology
Heating systems
Conveyor systems
A/C and ventilation applications
