Technical Datas Of The Self Stick Insulation Pins

Foam Density: 182 kg/m3
Liner Release Value: 10N/m
Peel Adhesion(23℃): 20 N/25mm
Application Temperature: +10℃ - Advisory
Static Shear: >1000 Hrs(PSTC)
Service Temperature(Minimum): -35℃
Service Temperature(Maximum): +90℃
Tensile Strength: (L)113 N/m2 (CNS10487)(C)85N/m2
Elongation: (L)170% (CNS 10487) (C) 150%
Shelf Life: 2years (20℃ 65%RH)

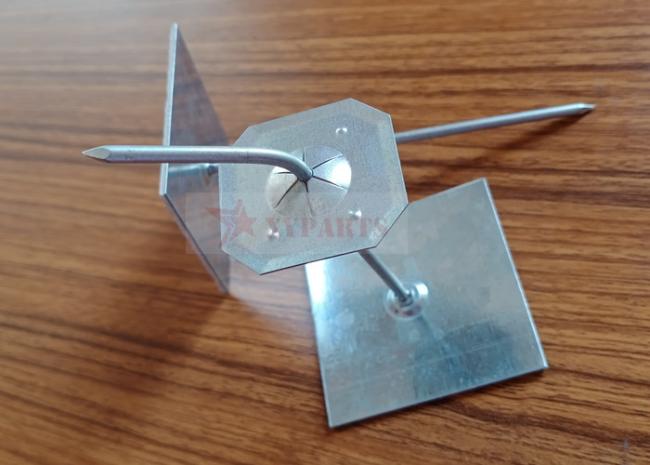

Application Of The Self Stick Pins

1. Pins are very sharp and easy go through any insulation. 2. Pins are soft and easy to be bent over 3. The tape has a good stickness, every pin could load 1.5kg 4. The tape can work at 5℃ - 80℃

Package Details Of Insulation Stick Pins

Why choose our HEBEI XIANGYI insulation fasteners?

1.We choose the best quality materials for making insulation fasteners
2.We do copper plating, zinc coated and phosphating pretreatment for the raw material using
drawing machine.
3.We purchase the multi-station cold forging machine to ensure the better mechanical property
of shear connector to match the standard (BS EN ISO13918:2008, AWS D1.1, etc.),
or as per customer's special requirement.
4.We use the automatic riveting machine to install .
5.After rust prevention, XIANGYI insulation fasteners can suitable for long time ship on the sea.
6.Short delivery time because of our reasonable production flow management
