Copper Plated Steel 4.8 Capacitor Discharge Weld Stud Pins With Speed Clips
Copper plated Steel 4.8 capacitor discharge weld stud pins with speed clips
Quick Details Of Steel 4.8 capacitor discharge weld stud pins :
| Material treatment | Mild steel and stainless steel in common |
| Diameter of the CD weld pins | 3.0mm in common , and other diameter is also ok for large order |
| Length of the CD weld pins | 40mm, 50mm,65mm,70mm,75mm,90mm,110mm ,140mm in common , customized length is also ok. |
| Surface treatment | copper plated , zinc coated for MS material, polished for stainless steel material |
| Application | On marine/boat for fixing board material , fixing rock woool in power plant, etc |
| Features | easy welding, easy bending, easy installing, and much more competitive than bimetallic pins |
CD (Capacitor Discharge) weld pins is one kinds of welding nails used for thermal insulation of a boiler
in a power plant, which is used to fix the thermal insulation material. The nail is welded to the surface of
the boiler in the power plant through a capacitive discharge welder, the thermal insulation material is
installed on the welded nail, the thermal insulation material is fixed with self locking washers , and finally
bent to cut off the excess nail tip, or locked on the top with a general cap to achieve protective effect.
Steel 4.8 capacitor discharge weld stud pins Specification :
10 Ga. (0.135") Capacitor Discharge ( CD ) Welding Pins
| Material | Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter | 10 Ga. (0.135") |
| Length | 1" 1-1/2" 2" 2-1/2" 3" 3-1/2" 4" 4-1/2" 5" 5-1/2" 6" 7" 8" 9" |
12 Ga. (0.105") Capacitor Discharge ( CD ) Welding Pins
| Material | Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter | 12 Ga. (0.105") |
| Length | 3/4" 1" 1-1/2" 2" 2-1/2" 3" 3-1/2" 4" 4-1/2" 5" 5-1/2" 6" 7" 8" |
14 Ga, 2mm (0.080") Capacitor Discharge ( CD ) Welding Pins
| Material | Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter | 14 Ga, 2mm (0.080") |
| Length | 3/4" 1" 1-1/2" 2" 2-1/2" 3" |
3mm Capacitor Discharge ( CD ) Welding Pins
| Material | Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter | 3mm |
| Length | 25mm 30mm 35mm 40mm 45mm 50mm 55mm 60mm 65mm 70mm 75mm 100mm 125mm 150mm |
4 mm Capacitor Discharge ( CD ) Welding Pins
| Material | Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter | 4mm |
| Length | 30mm 35mm 40mm 45mm 50mm 55mm 60mm 65mm 70mm 75mm 100mm 125mm 150mm ,240mm,270mm,370mm ect |

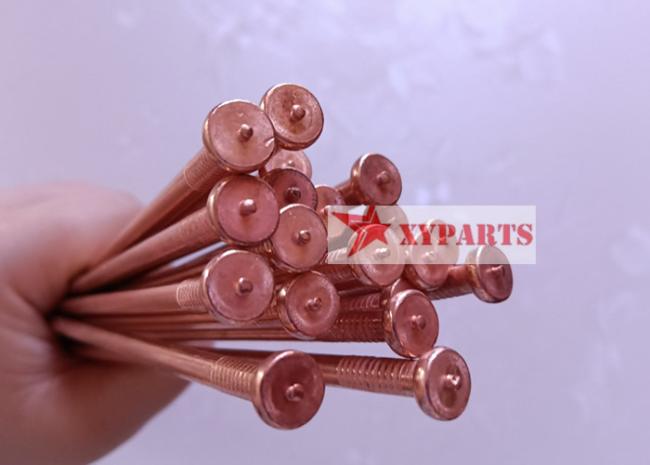

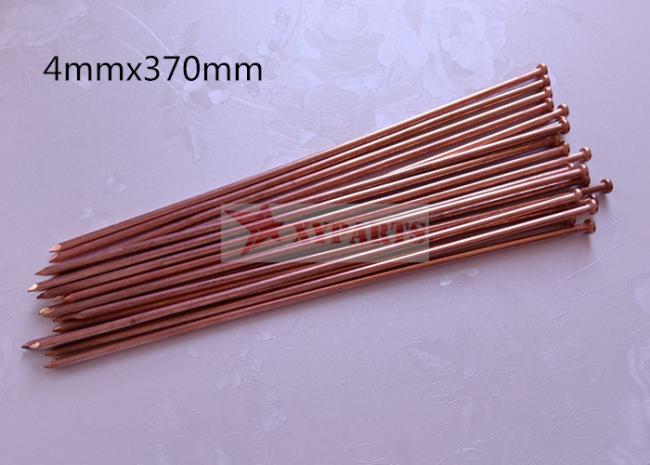

Pic Of Steel 4.8 capacitor discharge weld stud pins :
Featurer Of Steel 4.8 capacitor discharge weld stud pins :
BETTER PLATING:weld pin shanks Zinc and Chromate plated exceeding SMACNA standards and providing
a professional appearance.Climatech weldpin shanks are copper plated.
REDUCED DOWN TIME:Consistent point quality reduces frequency of machine adjustments.
STRONGER WELDS:Hardened steel point assures positive electrical contact for complete sheet to pin fusion.
CORROSION RESISTANCE:Plating exceeds current SMACNA standards for corrosion resistance.
TEMPERATURE RANGE:CD Weld pins function properly over normally accepted operating range of
temperatures of 0 degrees C to 121degrees C and are not adversely affected at temperatures of 0 degrees
C to 287 degrees C.
VIBRATIONS:CD Weld pins will not fatigue or be physically affected by vibrations normally found in high
velocity air handling systems.
Application Of Steel 4.8 capacitor discharge weld stud pins :
The CD copper coating weld pin is a capacitor discharge weld insulation fastener, these insulation weld pins
work with a stud welding machine, weld the pins on the sheet metal, then put the insulation material through
the weld pins, press a self locking washer or metal clips or dome caps onto the pin, bend over or clip off the
pin to finish fastening insulation installation. Weld nails are usually used shipping industry.
Package Of Steel 4.8 capacitor discharge weld stud pins :
>> Package
1. 500 pcs per bag, 10 bags per carton. 64 cartons per pallet.
2. to be your requirements.
>>> Delivery
Sample: DHL/EMS/UPS/TNT/EXPRESS
Large Order: we recommend you by SEA ,or by AIR if in an emergency.
