Al6005 T5 Solar Tile Roof Hook For Various Metal Roof Solar System Installation
Al6005-T5 Material Solar Roof Tile Hooks For Various Metal Roof Solar System Installation
Descrpition of Al6005-T5 Material Solar Roof Tile Hooks
Solar roof tile hook is applicable to install the usual module to flush with the pitched roof. Makes the installation easy and quick to save your labor cost and time.This mounting system are suitable for Corrugated roof sheet, Trapezoidal metal roof and Standing seam roofs.
c)Waterproof Silicone rubber intergrated
d)Fasteners and rall nut confignrated to save extra parts purchasing
specification details of Al6005-T5 Material Solar Roof Tile Hooks
| name | Al6005-T5 Material Solar Roof Tile Hooks |
| Install Site: | Rooftop |
| Module Orientation: | Portrait or Landscape |
| Max. Wind Speed: | ≤60m/s |
| Max. Snow Load: | ≤1.4kn/m2 |
| Tilt Angle: | As Per Your Requirements |
| Anti-corrosive Treatment: | Shot Blasting or Anodize |
| Color: | Silver or according your requirements |
| Warranty: | 12 years |
| Duration: | more than 20 years |
| Quality standard of roof tile hooks | Anodizing layer ≥ 12 μm Tensile Strength≥ 260N/MM2 Non-proportional elongation strength ≥ 240N/MM2 Elongation after break ≥8% |

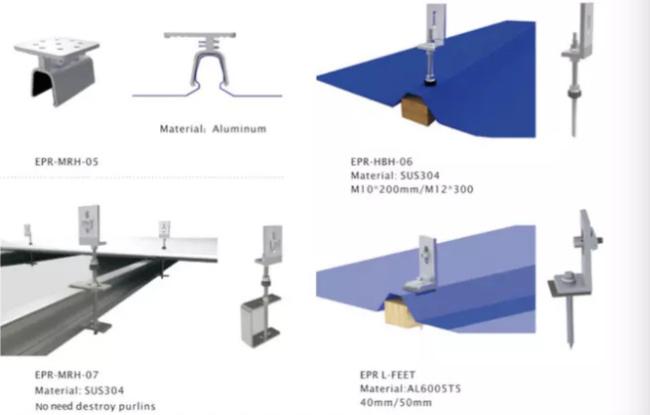

images details of Al6005-T5 Material Solar Roof Tile Hooks
Application of Al6005-T5 Material Solar Roof Tile Hooks
solar roof tile hooks have been widely used on universal corrugated metal sheet roof. It can fix to the roof rafter directly. Also, it can be applied with hanger bolts and roof clamps.
