ASTM A554 Customized Size Stainless Steel Pipes 304L 309S 316 316L Mirror Polished Tube Seamless Chemical Industry Pipe
ASTM A554 Customized Size Stainless Steel Pipes 304L 309S 316 316L Mirror Polished Tube Seamless Chemical Industry Pipe
Product Details
Stainless steel pipe is an economical section steel and an important product in the steel industry. It can be widely used in life decoration and industry. Many people in the market use it to make stair handrails, window guards, railings, furniture, etc. Two common materials are 201 and 304.
|
Product Name
|
Stainless Steel Pipe/Tube
|
|||
|
Technology
|
Hot Rolled Industrial Stainless Steel Tube
Cold Rolled Decorative Stainless Steel Pipe |
|||
|
Material
|
201, 202, 301, 302, 304, 304L, 310S, 316, 316L, 321, 430, 430A, 309S, 2205, 2507, 2520, 430 , 410, 440, 904Lect, Or Customized
|
|||
|
Thickness
|
0.4-50 mm
|
|||
|
Length
|
1-12 m
|
|||
|
Outer Diameter(OD)
|
10-2000mm
|
|||
|
Standard
|
ASTM, JIS, GB, AISI, DIN, BS,EN
|
|||
|
Certifications
|
ISO 9001 BV SGS
|
|||
|
Packing
|
Industry standard packaging or according to client's requirement
|
|||
|
Brand
|
TISCO,ZPSS,Baosteel,POSCO,LISCO,YUSCO,Ansteel, QPSS,JISCO,HXSCO,
Chengde,Yongjin,Tsingshan,Shouyang,HW |
|||
|
Payment terms
|
30%T/T in advance, the balance against the B/L copy
|
|||
|
Delivery time
|
Fast delievery in 7 days,up to order quantity
|
|||
|
Warehose Stcok
|
500 tons per month
|
|||
Stainless Steel Hardness
| 1/4H | 1/2H | 3/4H | H | EH | ||
| SUS 201 | ≤HV220 | HV200-230 | HV240-290 | HV300-350 | HV360-410 | ≥HV420 |
| SUS 304 | ≤HV190 | HV190-250 | HV250-310 | HV310-370 | HV370-430 | ≥HV430 |
| SUS 316 | ≤HV160 | HV180-220 | HV240-290 | HV300-350 | ≥HV360 | |
| SUS 316L | ≤HV190 | HV190-250 | HV250-310 | HV310-370 | HV370-430 | ≥HV430 |
| SUS 301 | ≤HV220 | HV250-310 | HV310-370 | HV370-430 | HV430-490 | ≥HV490 |
| SUS 430 | ≤HV160 | HV170-210 | HV210-250 | HV250-290 | ≥HV290 |
Chemical Composition
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | ≤0 .15 | ≤0 .75 | 5. 5-7. 5 | ≤0.06 | ≤ 0.03 | 3.5 -5.5 | 16 .0 -18.0 | - |
| 202 | ≤0 .15 | ≤l.0 | 7.5-10.0 | ≤0.06 | ≤ 0.03 | 4.0-6.0 | 17.0-19.0 | - |
| 301 | ≤0 .15 | ≤l.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 6.0-8.0 | 16.0-18.0 | - |
| 302 | ≤0 .15 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 8.0-10.0 | 17.0-19.0 | - |
| 304 | ≤0 .0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 8.0-10.5 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | ≤ 0.03 | 19.0-22.0 | 24.0-26.0 | |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 10.0-14.0 | 16.0-18.0 | 2.0- |
| 316L | ≤0 .03 | ≤1.0 | ≤2.0 | ≤0.045 | ≤ 0.03 | 12.0 - 15.0 | 16 .0 -1 8.0 | 2.0 - |
| 321 | ≤ 0 .08 | ≤1.0 | ≤2.0 | ≤0.035 | ≤ 0.03 | 9.0 - 13 .0 | 17.0 -1 9.0 | - |
| 630 | ≤ 0 .07 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | 3.0-5.0 | 15.5-17.5 | - |
| 631 | ≤0.09 | ≤1.0 | ≤1.0 | ≤0.030 | ≤0.035 | 6.50-7.75 | 16.0-18.0 | - |
| 904L | ≤ 2 .0 | ≤0.045 | ≤1.0 | ≤0.035 | - | 23.0·28.0 | 19.0-23.0 | 4.0-5.0 |
| 2205 | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.030 | ≤0.02 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 |
| 2507 | ≤0.03 | ≤0.8 | ≤1.2 | ≤0.035 | ≤0.02 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 |
| 2520 | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.045 | ≤ 0.03 | 0.19 -0. 22 | 0. 24 -0 . 26 | - |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | ≤ 0.03 | - | 11.5-13.5 | - |
| 430 | ≤0.1 2 | ≤0.75 | ≤1.0 | ≤ 0.040 | ≤ 0.03 | ≤0.60 | 16.0 -18.0 | - |

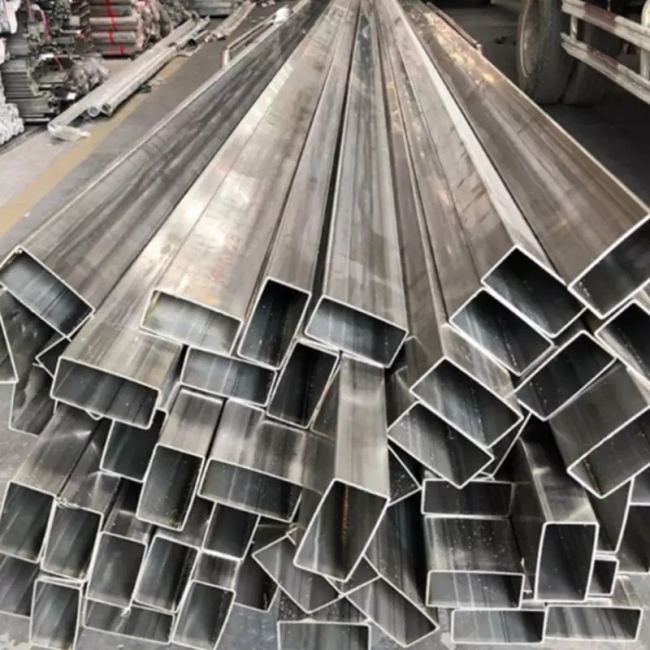

Product Show
Packing & Delivery
Export standard package,bundled or be required. The inner size of container is below:
Certification
Application
FAQ
Q1.What's your advantage?
A2: Honest business with competitive price and professional service on export process.
Q2.Can you give warranty of your products?
A2: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
Q3.Where are you? Can I visit you?
A3: Sure,welcome to you visit our factory at any time.
Q4.How about the delivery time?
A4: Within 3-10 days after we confirm you requirement.
Q5.What kind of payment does your company support?
A5: T/T, L/C , Western Union are all accepted if you have other payment, please contact me.
