Inconel Round Bar Titanium Alloy Rod Gr2 Gr5 100MM 200MM 201 304 316L
ASTM B348 Titanium Bar Rod Bar Gr2 Gr5 Wholesale Titanium
Titanium alloy has high strength, low density, good mechanical properties, toughness and corrosion resistance. In addition, titanium alloys have poor process performance and are difficult to cut. In hot processing, it is very easy to absorb impurities such as hydrogen, oxygen, nitrogen, and carbon. There is also poor abrasion resistance and complex production processes. Industrial production of titanium began in 1948. The development of the aviation industry requires the titanium industry to develop at an average annual growth rate of about 8%.
Product Description
|
Product Name
|

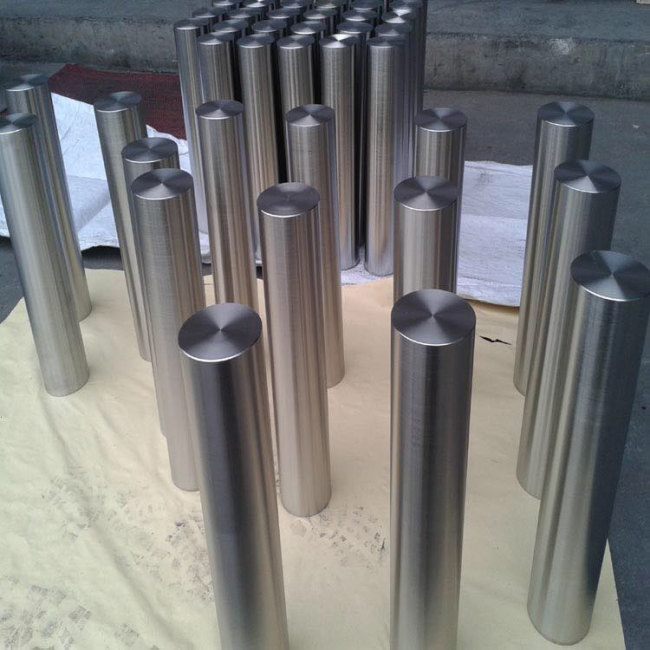

Titanium Bar
|
|
Standard
|
ASTM B 348
|
|
Grade
|
gr1, gr2, gr3,gr4, gr5,gr7, gr9, gr10,
|
|
Diameter
|
0.8mm-200mm
|
|
Length
|
6000mm max
|
|
Origin
|
BaoJi,China
|
Chemical Composition
| Grade | chemical composition, weight percent (%) | ||||||||||
| C | H | O | N | Fe | Al | V | Pd | Ni | Mo | Ti | |
| (≤) | (≤) | (≤) | (≤) | (≤) | - | - | - | - | - | bal | |
| GR1 | 0.08 | 0.015 | 0.18 | 0.03 | 0.2 | - | - | - | - | - | bal |
| GR2 | 0.08 | 0.015 | 0.25 | 0.03 | 0.3 | - | - | - | - | - | bal |
| GR4 | 0.08 | 0.015 | 0.25 | 0.03 | 0.3 | - | - | - | - | - | bal |
| GR5 | 0.08 | 0.015 | 0.2 | 0.05 | 0.4 | 5.5~6.75 | 3.5~4.5 | - | - | - | bal |
| GR7 | 0.08 | 0.015 | 0.25 | 0.03 | 0.3 | - | - | 0.12~0.25 | 0.12~0.25 | - | bal |
| GR9 | 0.08 | 0.015 | 0.15 | 0.03 | 0.25 | 2.5~3.5 | 2.5~3.5 | - | - | - | bal |
| GR11 | 0.08 | 0.15 | 0.18 | 0.03 | 0.2 | - | - | 0.12~0.25 | - | - | bal |
| GR12 | 0.08 | 0.15 | 0.25 | 0.03 | 0.3 | - | - | - | 0.6~0.9 | 0.2~0.4 | bal |
| GR23 | 0.08 | 0.125 | 0.13 | 0.03 | 0.25 | 5.5~6.5 | 3.5~4.5 | - | - | - | bal |
Physical Properties
| Grade | Physical properties | |||||
| Tensile strength | Yield strength | Elongation in 4D | Reduction of Area | |||
| Min | Min (0.2%, offset) | Min (%) | Min (%) | |||
| ksi | MPa | ksi | MPa | |||
| Gr1 | 35 | 240 | 20 | 138 | 24 | 30 |
| Gr2 | 50 | 345 | 40 | 275 | 20 | 30 |
| Gr4 | 80 | 550 | 70 | 483 | 15 | 25 |
| Gr5 | 130 | 895 | 120 | 828 | 10 | 25 |
| Gr7 | 50 | 345 | 40 | 275 | 20 | 30 |
| Gr9 | 90 | 620 | 70 | 483 | 15 | 25 |
| Gr12 | 70 | 483 | 50 | 345 | 18 | 25 |
| Gr23 | 120 | 828 | 110 | 759 | 10 | 15 |

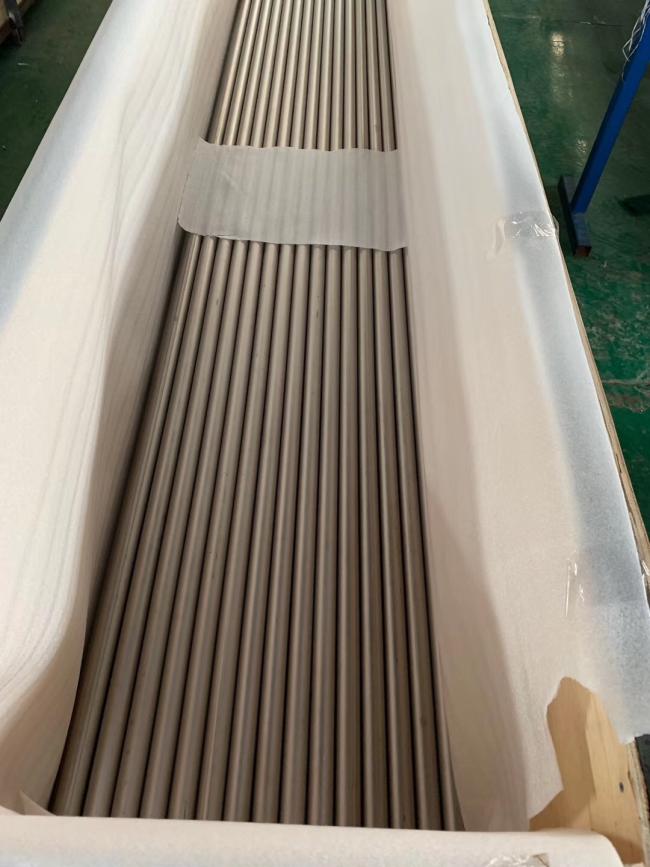

Packaging & Shipping
