SS 2B 201 430 420 303 2205 2507 904l 630 316l Stainless Steel Hexagonal Bar / Rod
SS 2B 201 430 420 303 2205 2507 904l 630 316l Stainless Steel hexagonal Bar/ Rod
Hexagonal steel is a type of section steel, also known as hexagonal bar, with a regular hexagonal cross-section. Take the opposite side length S as the nominal size
Hexagonal steel bars are often used as raw materials for machining stainless steel hexagonal bolts, nuts, pipe joints, etc.
Product Paramenters
| Type | Stainless Steel Hexagonal bar |
| Diameter | 10mm, 20mm, 30mm, 50 mm,80mm, 100mm, 150mm, 200mm, 500 mm,etc. |
| Grade | 600 Series |
| Steel Grade | 301L, S30815, 301, 304N, 310S, S32305, 410, 204C3, 316Ti, 316L, 441, 316, etc. |
| Length | Customers' Requirements |
| Tolerance | ±1% |
| Technique | Hot rolled, forged, cold drawn |
| Surface Finsh | 2B |
| Standard | ASME, ASTM, EN ,BS,GB,DIN, JIS etc. |
| Certification | BV, ISO, CE, SGS etc. |
| Processing Service | Welding, Cutting |
| MOQ | 500 Kilograms |
| Sample | We can provide it for free but not including sea freight |
| Applications | Construction, Industry, Building |
| Package | Standard Seaworthy Package-wooden |
| Delivery Time | within 7 days after deposit |
| Payment terms | 30%T/T, L/C |
| Price Term | FOB, CFR, CIF, EXW |
Product photo
Chemical Ingredient
| No | Grade (EN) | Grade (ASTM/UNS) | C | N | Cr | Ni | Mo | Others |
| 1 | 1.4301 | 304 | 0.04 | - | 18.1 | 8.3 | - | - |
| 2 | 1.4307 | 304L | 0.02 | - | 18.2 | 10.1 | - | - |
| 3 | 1.4311 | 304LN | 0.02 | 0.14 | 18.5 | 8.6 | - | - |
| 4 | 1.4541 | 321 | 0.04 | - | 17.3 | 9.1 | - | Ti 0.24 |
| 5 | 1.4550 | 347 | 0.05 | - | 17.5 | 9.5 | - | Nb 0.012 |
| 6 | 1.4567 | S30430 | 0.01 | - | 17.7 | 9.7 | - | Cu 3 |
| 7 | 1.4401 | 316 | 0.04 | - | 17.2 | 10.2 | 2.1 | - |
| 8 | 1.4404 | 316L/S31603 | 0.02 | - | 17.2 | 10.2 | 2.1 | - |
| 9 | 1.4436 | 316/316LN | 0.04 | - | 17 | 10.2 | 2.6 | - |
| 10 | 1.4429 | S31653 | 0.02 | 0.14 | 17.3 | 12.5 | 2.6 | - |
| 11 | 1.4432 | 316TI/S31635 | 0.04 | - | 17 | 10.6 | 2.1 | Ti 0.30 |
| 12 | 1.4438 | 317L/S31703 | 0.02 | - | 18.2 | 13.5 | 3.1 | - |
| 13 | 1.4439 | 317LMN | 0.02 | 0.14 | 17.8 | 12.6 | 4.1 | - |
| 14 | 1.4435 | 316LMOD /724L | 0.02 | 0.06 | 17.3 | 13.2 | 2.6 | - |
| 15 | 1.4539 | 904L/N08904 | 0.01 | - | 20 | 25 | 4.3 | Cu 1.5 |
| 16 | 1.4547 | S31254/254SMO | 0.01 | 0.02 | 20 | 18 | 6.1 | Cu 0.8-1.0 |
| 17 | 1.4529 | N08926 Alloy25-6mo | 0.02 | 0.15 | 20 | 25 | 6.5 | Cu 1.0 |
| 18 | 1.4565 | S34565 | 0.02 | 0.45 | 24 | 17 | 4.5 | Mn3.5-6.5 Nb 0.05 |
| 19 | 1.4652 | S32654/654SMO | 0.01 | 0.45 | 23 | 21 | 7 | Mn3.5-6.5 Nb 0.3-0.6 |
| 20 | 1.4162 | S32101/LDX2101 | 0.03 | 0.22 | 21.5 | 1.5 | 0.3 | Mn4-6 Cu0.1-0.8 |
| 21 | 1.4362 | S32304/SAF2304 | 0.02 | 0.1 | 23 | 4.8 | 0.3 | - |
| 22 | 1.4462 | 2205/ S32205 /S31803 | 0.02 | 0.16 | 22.5 | 5.7 | 3 | - |
| 23 | 1.4410 | S32750/SAF2507 | 0.02 | 0.27 | 25 | 7 | 4 | - |
| 24 | 1.4501 | S32760 | 0.02 | 0.27 | 25.4 | 6.9 | 3.5 | W 0.5-1.0 Cu0.5-1.0 |
| 25 | 1.4948 | 304H | 0.05 | - | 18.1 | 8.3 | - | - |
| 26 | 1.4878 | 321H/S32169/S32109 | 0.05 | - | 17.3 | 9 | - | Ti 0.2-0.7 |
| 27 | 1.4818 | S30415 | 0.15 | 0.05 | 18.5 | 9.5 | - | Si 1-2 Ce 0.03-0.08 |
| 28 | 1.4833 | 309S S30908 | 0.06 | - | 22.8 | 12.6 | - | - |
| 29 | 1.4835 | 30815/253MA | 0.09 | 0.17 | 21 | 11 | - | Si1.4-2.0 Ce 0.03-0.08 |
| 30 | 1.4845 | 310S/S31008 | 0.05 | - | 25 | 20 | - | - |
| 31 | 1.4542 | 630 | 0.07 | - | 16 | 4.8 | - | Cu3.0-5.0 Nb0.15-0.45 |
Surface treatment

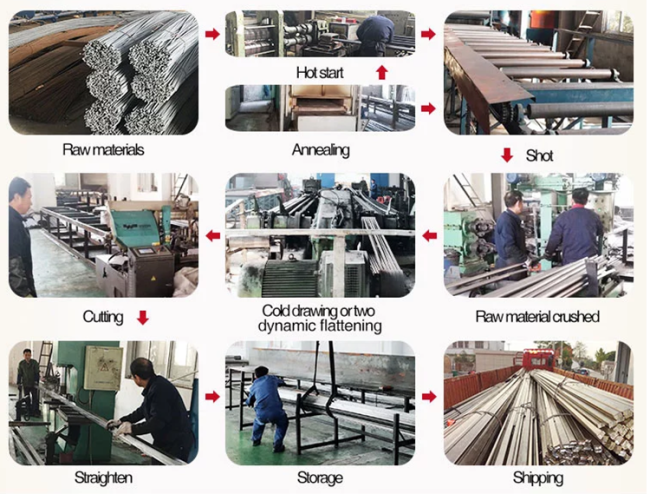

Product process
Certificate
Application
Packing & Delivery
FAQ
Q1: How about the delivery time?
A1: 3-10 days.
Q2: Do you have any protection when packing?
A2: Cover with PE film , wrap with waterproof paper, pack with wooden plate,belt by steel strip, fasten on pallet.
Q3: Are you a factory?
A3: We are a factory setted up more than 10 years and export more than 5 years, also a manufacturer.
Q4: How about the after service?
A4: Free of charge for one year's warranty, and if there is any problem, our technicianwill go to your place to check. if necessary, we will change the goods for you.
