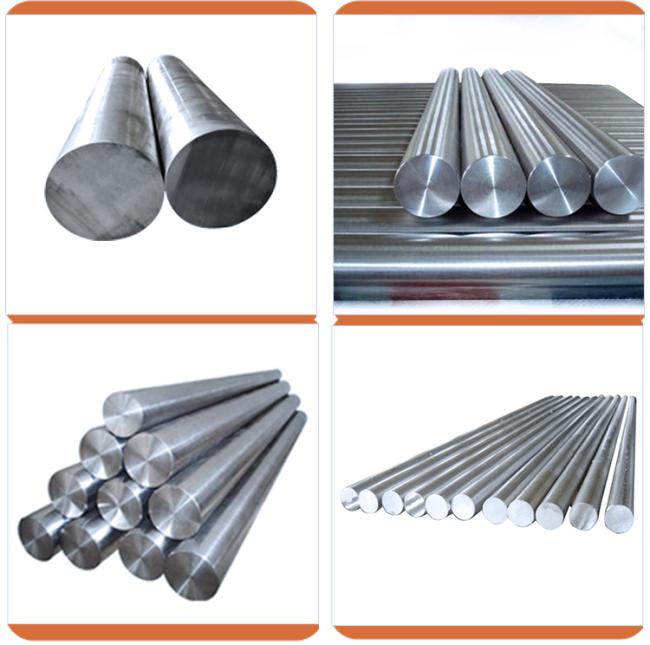

Inconel Alloy 718 Round Bar/ Inconel Rod UNS N07718 Inconel Bar
Inconel Alloy 718 Round Bar/ Inconel Rod UNS N07718 Inconel Bar
Character of Inconel Alloy 718
• Ending machinability
• Low at 700 ℃ has high tensile strength, fatigue strength, creep strength and fracture strength
• Low at 1000 ℃ has the high oxidation
• Both ends have stable chemical properties at low temperature
• Ending with good welding performance
| Product name | 718 Inconel Bar |
| Place of Origin | China |
| Type | Nickel Bar |
| Grade | Nickel Base Alloy |
| Shape | Round |
| Model Number | inconel 718 |
| Elongation (≥ %) | 30 % |
| Ni (Min) | 50% |
| Resistance (μΩ.m) | 1.15 |
| Ultimate Strength (≥ MPa) | 965 |
| Materials | Nickle Material |
| Surface | bright/ black |
| Standard | ASTM, JIS, DIN, GB, etc. |
| Certification | BV, ISO, CE, SGS, etc. |
| Surface treatment | according to customer's request |
| Thickness | 0.5mm-50mm or as required |
| Length | 3000mm,5800mm, 6000mm, or as required |
| Delivery Time | within 7 days after deposit |
| Applications | Industry |
| MOQ | 1 TON |
| Sample | We can provide it for free but not including sea freight |
| Payment terms | 30%T/T,L/C |
| Price Term | FOB, CFR, CIF, EXW |
Product Details
Chemical copmposition
| Ni | Cr | Fe | C | Mn | Si | Mo | Cu | Co | Al | Ti | Nb | B | P | S | |
| MIN | 50 | 17 | 2.8 | 0.2 | 0.65 | 4.75 | 0 | ||||||||
| MAX | 55 | 21 | Margin | 0.08 | 0.35 | 0.35 | 3.3 | 0.03 | 1.0 | 0.8 | 1.15 | 5.50 | 0.006 | 0.01 | 0.01 |
Heat conductivity
| θ/℃ | 11 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| λ/(W/(m·℃)) | 13.4 | 14.7 | 15.9 | 17.8 | 18.3 | 19.6 | 21.2 | 22.8 | 23.6 | 7.6 | 30.4 |
Chemical property
| θ/℃ | 600 | 700 | 800 | 900 | 1000 |
| oxidation date/(g/(m2·h)) | 0.0176 | 0.0277 | 0.0351 | 0.0961 |
|
Physical property
Density:ρ=8.24g/cm3
Melting temperature range:1260~1320℃
Application
Packing
FAQ
Q1: ARE YOU FACTORY OR TRADER?
A1: Our company is a cold rolling manufacturer of magnetic stainless steel coil since 2012. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Stainless Steel Coils / Strips, Stainless Steel Sheets / Plates, Stainless Steel Circles / Discs, Decorative Stainless Steel Sheets Incoloy 800 Inconel 600 Monel 400 K500 C276 Nickel Alloy Bar 825 Inconel Bar.
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4: HOW TO VISIT YOUR FACTORY?
A4: Most of the main cities have flights to Wuxi; you can take flight to Wuxi Shuofang International Airport.
If you come from Shanghai, it will take 2 hours by flight (every day 5 flights).
If you come from Hongkong, it will take 1 hour by flight (every day 1 flight around noon time).
