ASTM AISI Seamless 201 304 Stainless Steel Pipe Tube 150mm For Square Rectangle
ASTM AISI Seamless 201 304 Stainless Steel Pipe / Tube For Industry Round Square Rectangle
Product Description
1. Stainless steel pipes are durable and have a long service life, up to 100 years, which is the same as that of buildings, far surpassing plastic pipes and other traditional water pipes.
2. Stainless steel pipes are resistant to high temperature, high pressure and high strength. It can withstand the instantaneous pressure of 89Mpa, which is 10 times that of plastic pipes and 3 times that of copper pipes.
3. Stainless steel pipes do not have any harmful substances, and will not cause secondary pollution to the water source, which is more green and environmentally friendly. It can be recycled and is a real green pipe. There is no oxygen permeation phenomenon, it is an anaerobic pipeline.
4. The inner wall of the stainless steel water pipe is smooth, not easy to scale, does not grow moss, does not breed bacteria, and the water quality is more hygienic and healthy.
5. Stainless steel pipes are safe. It can be used safely in the temperature range of -40℃~150℃, with high strength and no pipe burst. Compared with the commonly used PPR pipes, stainless steel pipes do not produce plasticizers when heated. Eliminate the hidden danger of aging and rupture of plastic pipes, with good safety.
| Item | ASTM AISI Seamless 201 304 Stainless Steel Pipe / Tube For Industry Round Square Rectangle | ||
| Standard | ASTM A213,A312,ASTM A269,ASTM A778,ASTM A789 | ||
| Material |
304,304L,309S,310S,316,316Ti,317,317L,321,347,347H,304N,316L, 316N,201,202 |
||
| Surface | Pickling , Polished , Hairline , Mirror | ||
| Type | Hot Rolled , Cold Rolled , Extrusion | ||
| stainless steel round pipe/tube | |||
| Size | Wall thickness | 1mm-150mm(SCH10-XXS) | |
| Outer diameter | 6mm-2500mm (3/8"-100") | ||
| stainless steel square pipe/tube | |||
| Size | Wall thickness | 1mm-150mm(SCH10-XXS) | |
| Outer diameter | 4mm*4mm-800mm*800mm | ||
| stainless steel rectangular pipe/tube | |||
| Size | Wall thickness | 1mm-150mm(SCH10-XXS) | |
| Outer diameter | 6mm-2500mm (3/8"-100") | ||
| Length | 4000mm,5800mm,6000mm,12000mm,or as required. | ||
| Trade terms | Price terms | FOB,CIF,CFR,CNF,Ex-work | |
| Payment terms | T/T,L/C,westen union | ||
| Delivery time | 5-7 Days after confirming order | ||
| Package | Standard export seaworthy package,or as required. | ||
| Application | Widely used in petroleum,foodstuff,chemical industry,construction, electric power,nuclear,energy,machinery,biotechnology,shipbuilding,boiler fields. | ||
Chemical Composition
| Grade | C | Si | Mn | P | Ni | Cr | Mo |
| 201 | ≤0.15 | ≤0.75 | 5.5-7.5 | ≤0.06 | 3.5-5.5 | 16.0-18.0 | - |
| 202 | ≤0.15 | ≤1.0 | 7.5-10.0 | ≤0.06 | 4.-6.0 | 17.0-19.0 | - |
| 301 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.045 | 6.0-8.0 | 16.0-18.0 | - |
| 302 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.035 | 8.0-10.0 | 17.0-19.0 | - |
| 304 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | 8.0-10.5 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | 19.0-22.0 | 24.0-26.0 | - |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.045 | 12.0-15.0 | 16.0-18.0 | 2.0-3.0 |
| 321 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.035 | 9.0-13.0 | 17.0-19.0 | - |
| 630 | ≤0.07 | ≤1.0 | ≤1.0 | ≤0.035 | 3.0-5.0 | 15.5-17.5 | - |
| 631 | ≤0.09 | ≤1.0 | ≤1.0 | ≤0.030 | 6.50-7.75 | 16.0-18.0 | - |
| 904L | ≤2.0 | ≤0.045 | ≤1.0 | ≤0.035 | 23.0-28.0 | 19.0-23.0 | 4.0-5.0 |
| 2205 | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.030 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 |
| 2507 | ≤0.03 | ≤0.80 | ≤1.2 | ≤0.035 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 |
| 2520 | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.045 | 0.19-0.22 | 0.24-0.26 | - |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | - | 11.5-13.5 | - |
| 430 | ≤0.12 | ≤0.75 | ≤1.0 | ≤0.040 | ≤0.60 | 16.0-18.0 | - |
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elogation(%) | Hardness (HRB) |
| 201 | ≥655 | ≥310 | ≥40 | ≤100 |
| 202 | ≥620 | ≥260 | ≥40 | ≤100 |
| 301 | ≥520 | ≥205 | ≥40 | ≤90 |
| 304 | ≥515 | ≥205 | ≥40 | ≤92 |
| 304L | ≥485 | ≥170 | ≥40 | ≤88 |
| 316 | ≥515 | ≥205 | ≥40 | ≤95 |
| 316L | ≥485 | ≥170 | ≥40 | ≤95 |
| 321 | ≥515 | ≥205 | ≥40 | ≤95 |
| 409 | ≥380 | ≥205 | ≥20 | ≤80 |
| 409L | ≥350 | ≥185 | ≥22 | ≤80 |
| 430 | ≥450 | ≥205 | ≥22 | ≤80 |

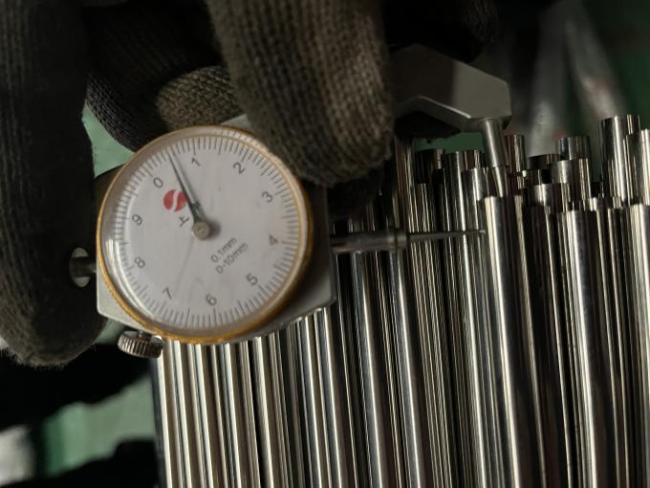

Detail Photos
Certification
Packing & Shipping
FAQ
Q1: ARE YOU FACTORY OR TRADER?
A1: Our company is a cold rolling manufacturer of magnetic stainless steel coil since 2009. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Stainless Steel Coils / Strips, Stainless Steel Sheets / Plates, Stainless Steel Circles / Discs, Decorative Stainless Steel Sheets.
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4: HOW TO VISIT YOUR FACTORY?
A4: Most of the main cities have flights to Wuxi; you can take flight to Wuxi Shuofang International Airport.
If you come from Shanghai, it will take 2 hours by flight (every day 5 flights).
If you come from Hongkong, it will take 1 hour by flight (every day 1 flight around noon time).
