0.5 Mm SS201 SS410 Stainless Steel Sheet Coil Mirror Polished ASTM Perforated Mesh
0.5 Mm Ss201 Ss410 Mirror Polished Stainless Steel Sheet Coil Astm Perforated Mesh For Architectural Feature Panels
Product Application
Our perforated metals have been used in
• Sunscreens
• Balustrade panels
• Fencing and gate infill panels
• Ceiling panels
• Architectural feature panels
• Building facades
• Acoustic wall panels
• Filters
• Shop fitting wall panels
Product Details
|
Product name
|
Perforated sheet (as well known as metal sheet, punch sheet)
|
|||
|
Material
|
Stainless steel 304,316,201 or aluminum sheet
|
|||
|
Size
|
1220*2440mm,1200*2400mm,1000*2000mm or customized
|
|||
|
Thickness
|
0.5-2mm as per customer request
|
|||
|

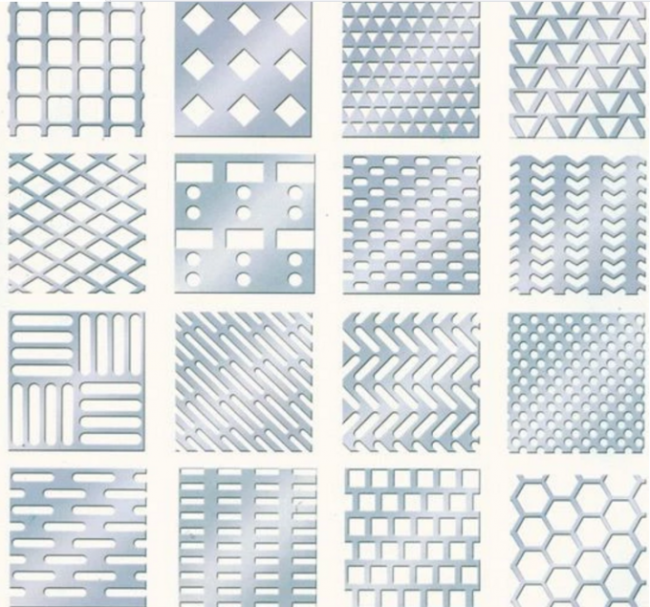

Hole shape
|
Round/Square/Diamond/Star..... or Customized
|
|||
|
Features
|
Anti-corrosion, anti rust,multiple type, attractive appearance, east install
|
|||
|
Package
|
1.On pallet with waterproof cloth
2.In wooden case with waterproof paper 3.In carton box 4.In roll with woven bag 5.In bulk or In bundle |
|||
Chemical Composition
| Grade | C | Si | Mn | P | Ni | Cr | Mo |
| 201 | ≤0.15 | ≤0.75 | 5.5-7.5 | ≤0.06 | 3.5-5.5 | 16.0-18.0 | - |
| 202 | ≤0.15 | ≤1.0 | 7.5-10.0 | ≤0.06 | 4.-6.0 | 17.0-19.0 | - |
| 301 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.045 | 6.0-8.0 | 16.0-18.0 | - |
| 302 | ≤0.15 | ≤1.0 | ≤2.0 | ≤0.035 | 8.0-10.0 | 17.0-19.0 | - |
| 304 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | 8.0-10.5 | 18.0-20.0 | - |
| 304L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.035 | 9.0-13.0 | 18.0-20.0 | - |
| 309S | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | 12.0-15.0 | 22.0-24.0 | - |
| 310S | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.035 | 19.0-22.0 | 24.0-26.0 | - |
| 316 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.045 | 10.0-14.0 | 16.0-18.0 | 2.0-3.0 |
| 316L | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.045 | 12.0-15.0 | 16.0-18.0 | 2.0-3.0 |
| 321 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.035 | 9.0-13.0 | 17.0-19.0 | - |
| 630 | ≤0.07 | ≤1.0 | ≤1.0 | ≤0.035 | 3.0-5.0 | 15.5-17.5 | - |
| 631 | ≤0.09 | ≤1.0 | ≤1.0 | ≤0.030 | 6.50-7.75 | 16.0-18.0 | - |
| 904L | ≤2.0 | ≤0.045 | ≤1.0 | ≤0.035 | 23.0-28.0 | 19.0-23.0 | 4.0-5.0 |
| 2205 | ≤0.03 | ≤1.0 | ≤2.0 | ≤0.030 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 |
| 2507 | ≤0.03 | ≤0.80 | ≤1.2 | ≤0.035 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 |
| 2520 | ≤0.08 | ≤1.5 | ≤2.0 | ≤0.045 | 0.19-0.22 | 0.24-0.26 | - |
| 410 | ≤0.15 | ≤1.0 | ≤1.0 | ≤0.035 | - | 11.5-13.5 | - |
| 430 | ≤0.12 | ≤0.75 | ≤1.0 | ≤0.040 | ≤0.60 | 16.0-18.0 | - |
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elogation(%) | Hardness (HRB) |
| 201 | ≥655 | ≥310 | ≥40 | ≤100 |
| 202 | ≥620 | ≥260 | ≥40 | ≤100 |
| 304 | ≥515 | ≥205 | ≥40 | ≤92 |
| 304L | ≥485 | ≥170 | ≥40 | ≤88 |
| 316 | ≥515 | ≥205 | ≥40 | ≤95 |
| 316L | ≥485 | ≥170 | ≥40 | ≤95 |
| 321 | ≥515 | ≥205 | ≥40 | ≤95 |
| 409 | ≥380 | ≥205 | ≥20 | ≤80 |
| 409L | ≥350 | ≥185 | ≥22 | ≤80 |
| 430 | ≥450 | ≥205 | ≥22 | ≤80 |
VariousTypes
Surface Treatment
|
Surface Finish
|
Defination
|
|
2B
|
Those finished,after cold rolling,by heat treatment,picking or other equivalent treatment and lastly by cold rolling to given
appropriate luster |
|
BA
|
Those processed with bright heat treatment after cold rolling
|
|
No.1
|
The surface finished by heat treatment and picking or processes corresponding there to after hot rolling
|
|
No.4
|
Those finished by polishing with No.150 to No.180 abrasives specified in JIS R 6001
|
|
HL
|
Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size
|
|
8K
|
A mirror-like reflective surface by polishing with finer abrasives over 800 mesh
|
Packaging & Shipping
Certification
Packing & Shipping
|
Packing
|
PVC waterproof paper packed , strong sea-worthy wooden package and steel plate packing
|
|||
|
Shipping port
|
Shanghai
|
|||
|
|
Length: ≤6m, loaded in 20GP Container
|
|||
|
Length: ≤12m, loaded in 40GP Container
|
||||
|
Size of 20GP Container (inside :5898*2352*2393mm)
|
||||
|
Size of 40GP Container (inside:12032*2352*2393mm)
|
||||
|
Size of 40HQ Container (inside:12032*2352*2698mm)
|
||||
|
Delivery time
|
Within 7-15 days, depending on the situation
|
|||
FAQ
Q1: ARE YOU FACTORY OR TRADER?
A1: Our company is a cold rolling manufacturer of magnetic stainless steel coil since 2009. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: WHICH MATERIAL/PRODUCTS YOU CAN PROVIDE?
A2: Stainless Steel Coils / Strips, Stainless Steel Sheets / Plates, Stainless Steel Circles / Discs, Decorative Stainless Steel Sheets.
Q3: HOW TO GET A SAMPLE?
A3: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q4: HOW TO VISIT YOUR FACTORY?
A4: Most of the main cities have flights to Wuxi; you can take flight to Wuxi Shuofang International Airport.
If you come from Shanghai, it will take 2 hours by flight (every day 5 flights).
If you come from Hongkong, it will take 1 hour by flight (every day 1 flight around noon time).
