Nickel 10mm 22mm Soft Seamless Copper Pipe ISO9001 Type K Soft Copper Tubing For Air Condition
Price:
Negotiable
MOQ:
500KGS
Delivery Time:
7-15days
Brand:
Tongmao
Product Description
Nickel 10mm 22mm Soft Seamless Copper Pipe ISO9001 Type K Soft Copper Tubing For Air Condition
Soft copper pipe nickel tube pancake coil are widely used in the installation of air conditioning and refrigeration systems. Produced in the following size ranges:
Min. Diameter: 1/4" (6.35mm)
Max. Diameter: 7/8" (22.22mm)
Lengths: Standard available lengths are 15m, 30m, 50FT
PRODUCT DESCRIPTION
| Application | Air Condition Or Refrigerator, Water Heater, Aircon systems, Oil cooler pipe, Refrigeration Parts |
| Length | Customers' Requirement, 1-12m,15m, 30m |
| Grade | C11000 C10200 C12000 C12200, TU2, TP1,TP2, |
| Type | Pancake Coil Copper Pipe, Straight Copper Pipe, Insulated copper pipe, straight and coil |
| Wall thickness | 0.2mm~12mm, 0.5mm-14mm, 0.8, 0.35-1.5mm, 0.4-3.0mm |
| Cu (min) | 99.99%, 99.97, According to the material |
| Outer diameter | 6mm-22Mm, 1/4"-7/8", 10mm~914mm, DN10~DN900 |
| Surface | Bright, Polished, PE coated, copper, Mill Surface |
| Color | Red |
| Standard | ASTM B280/EN 12735-1, ASTM B725, EN, ASTM JIS GB ASTM B68 |
| Place of original | China |
| Price term | CIF CFR FOB |

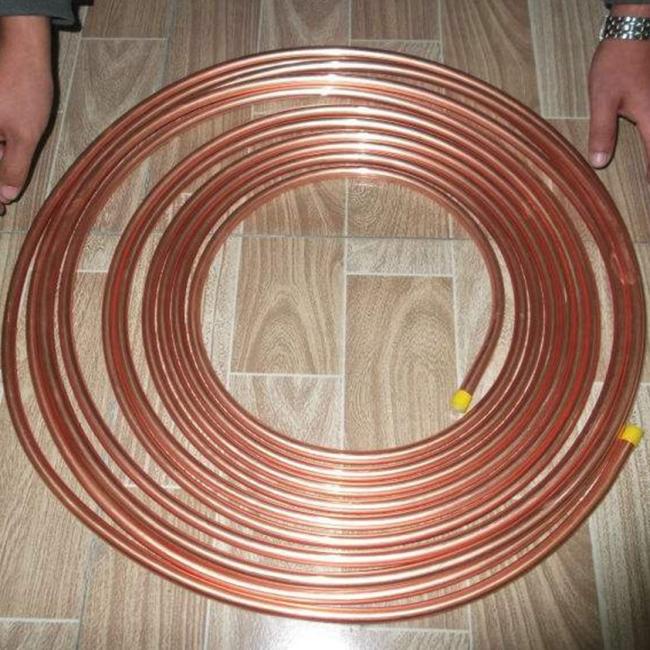

DETAILED PHOTOS
PRODUCT PARAMETERS
| Copper Alloy | Chemical Composition | Temper | Mechanical Property | |||
| Copper % |
Phosphorus % |
Tensile Strength MPa |
Elongation % |
Hardness HV |
||
| Cu-DHP | ≥ 99.90 | 0.015-0.040 | R220 | ≥ 220 | ≥ 40 | 40-70 |
| Cu-DHP | ≥ 99.90 | 0.015-0.040 | R250 | ≥ 250 | ≥ 30 | 75-100 |
| Cu-DHP | ≥ 99.90 | 0.015-0.040 | R290 | ≥ 290 | ≥ 3 | ≥ 100 |
Size Range:
| Actual Copper Tube Size Outside Diameter x Wall Thickness |
Weight (kg/m) |
Safe Working Pressure (kPa) | ||
| metric (mm) | imperial (inches) | 50ºC | 75ºC | |
| 6.35 x 0.56 | 1/4" x 24swg | 0.091 | 7,069 | 5,862 |
| 6.35 x 0.61 | 1/4" x 23swg | 0.098 | 7,760 | 6,435 |
| 6.35 x 0.71 | 1/4" x 22swg | 0.113 | 9,175 | 7,608 |
| 6.35 x 0.81 | 1/4" x 21swg | 0.126 | 10,635 | 8,819 |
| 9.52 x 0.56 | 3/8" x 24swg | 0.141 | 4,584 | 3,801 |
| 9.52 x 0.61 | 3/8" x 23swg | 0.153 | 5,018 | 4,161 |
| 9.52 x 0.71 | 3/8" x 22swg | 0.176 | 5,900 | 4,893 |
| 9.52 x 0.81 | 3/8" x 21swg | 0.198 | 6,800 | 5,639 |
| 12.70 x 0.56 | 1/2" x 24swg | 0.191 | 3,389 | 2,810 |
| 12.70 x 0.61 | 1/2" x 23swg | 0.207 | 3,705 | 3,072 |
| 12.70 x 0.71 | 1/2" x 22swg | 0.239 | 4,344 | 3,603 |
| 12.70 x 0.81 | 1/2" x 21swg | 0.271 | 4,994 | 4,141 |
| 15.88 x 0.56 | 5/8" x 24swg | 0.241 | 2,688 | 2,229 |
| 15.88 x 0.61 | 5/8" x 23swg | 0.262 | 2,936 | 2,435 |
| 15.88 x 0.71 | 5/8" x 22swg | 0.303 | 3,438 | 2,851 |
| 15.88 x 0.81 | 5/8" x 21swg | 0.343 | 3,945 | 3,270 |
| 15.88 x 0.91 | 5/8" x 20swg | 0.383 | 4,459 | 3,698 |
| 15.88 x 1.02 | 5/8" x 19swg | 0.426 | 5,031 | 4,172 |
| 19.05 x 0.56 | 3/4" x 24swg | 0.291 | 2,228 | 1,848 |
| 19.05 x 0.71 | 3/4" x 22swg | 0.336 | 2,846 | 2,360 |
| 19.05 x 0.91 | 3/4" x 20swg | 0.464 | 3,684 | 3,055 |
| 19.05 x 1.14 | 3/4" x 0.045" | 0.574 | 4,668 | 3,871 |
| 22.22 x 0.91 | 7/8" x 20swg | 0.545 | 3,138 | 2,602 |
| 22.22 x 1.14 | 7/8" x 0.045" | 0.675 | 3,970 | 3,292 |
| 22.22 x 1.40 | 7/8" x 0.055" | 0.819 | 4,929 | 4,088 |
PACKING AND SHIPPING
- Plastic Bag Packing
- Carton Packing (with drier)
- Wooden Pallet
- Plastic Film Packing
FAQ
How can I contact with your company?
We are always ready to serve you via Email, Wechat or Mobile telephone.
What is your working time?
Monday-Saturday : 8:00AM-17:30PM (Beijing time, GMT+08.00)
We have public holiday during May.1-3, Oct.1-7 and Chinese New Year holiday . For detail,
please see our update holiday notice. During these period, if you have a demand, Please
send me an email.
Do you provide free samples?
Yes, we can provide a free small sample for testing, buyer should bear all the shipping costs.
What is your payment terms?
T/T,L/C,D/A,D/P,Western Union,MoneyGram,Paypal
We are doing the best to match your demand.
What is the lead time?
Usually sample lead time is 7 days after payment has been confirmed.
Normal order is 10-30days,it depends on customers' quantity.
Anyway,we try to offer good-quality products as soon as possible.
We are always ready to serve you via Email, Wechat or Mobile telephone.
What is your working time?
Monday-Saturday : 8:00AM-17:30PM (Beijing time, GMT+08.00)
We have public holiday during May.1-3, Oct.1-7 and Chinese New Year holiday . For detail,
please see our update holiday notice. During these period, if you have a demand, Please
send me an email.
Do you provide free samples?
Yes, we can provide a free small sample for testing, buyer should bear all the shipping costs.
What is your payment terms?
T/T,L/C,D/A,D/P,Western Union,MoneyGram,Paypal
We are doing the best to match your demand.
What is the lead time?
Usually sample lead time is 7 days after payment has been confirmed.
Normal order is 10-30days,it depends on customers' quantity.
Anyway,we try to offer good-quality products as soon as possible.
