EN12735 1/4" Nickel Alloy Seamless Copper Pipe Cu 99.97% 1 Inch Soft Copper Tubing
Price:
Negotiable
MOQ:
500KGS
Delivery Time:
7-15days
Brand:
Tongmao
Product Description
EN12735-1 Soft Copper Pipe Nickel Tube Pancake Coil 1/4" Seamless Copper Pipe
Temper soft annealed coiled copper tube
- Size ranges:
Min. Diameter: 3/16" (4.76mm)
Max. Diameter: 7/8" (22.22mm) - Lengths: Standard available lengths are 15m, 30m, 50FT
- Material : C11000, C12200, T2, TP2, TU2
- Usages: installation of air conditioning and refrigeration systems
- Cu: min 99.99%
- Coils are capped with plastic end caps
- Standard: ASTM B 280 / EN 12735-1 and ASTM B68 and all relevant international standards
PRODUCT DESCRIPTION
| Grade | Cooper, C11000 C10200 C12000 C12200, TU2, TP1, C1100 |
| Type | Pancake Coil Copper Pipe, Straight Copper Pipe, Insulated copper pipe, straight and coil, copper tube/ copper pipe |
| Wall thickness | 0.2mm~12mm, 0.5mm-14mm, 0.8, 0.35-1.5mm, 0.4-3.0mm |
| Cu (min) | 99.99%, 99.97, According to the material |
| Outer diameter | 6mm-60 Mm, 1/4"-7/8", 2mm~914mm, DN10~DN900, 4.76-22 mm |
| Surface | Bright, Polished, PE coated, copper, Mill Surface |

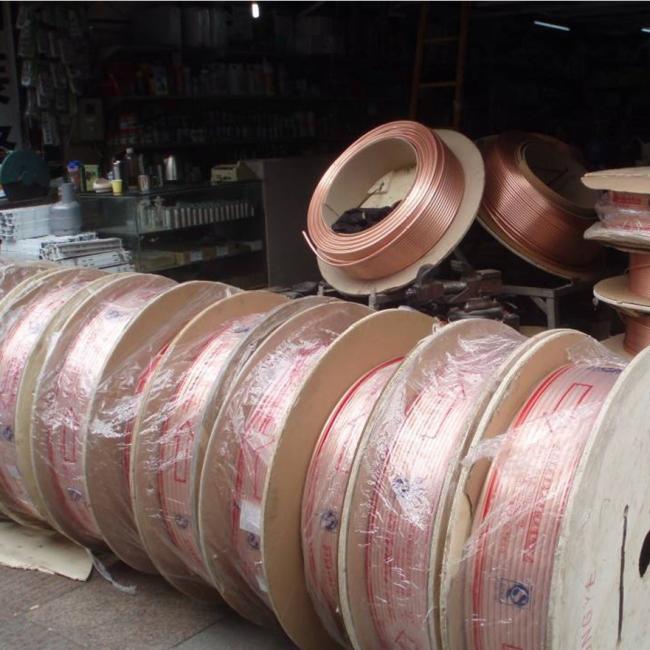

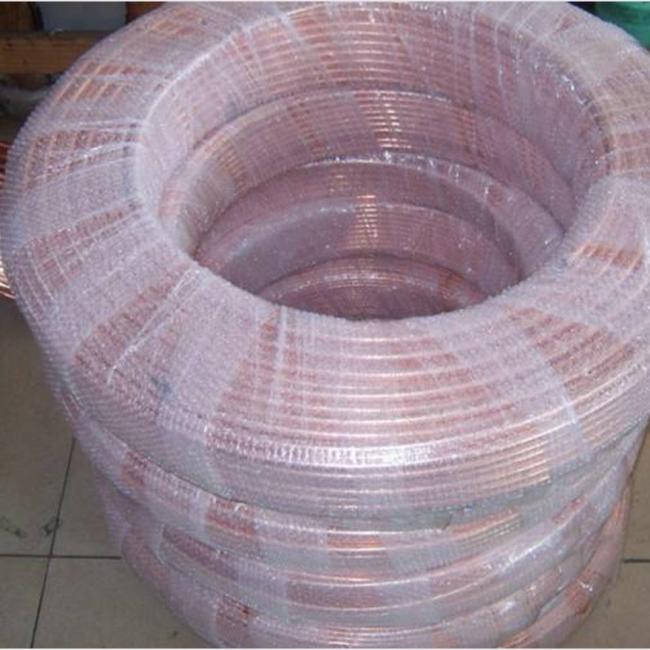

DETAILED PHOTOS
PRODUCT PARAMETERS
Chemical Composition & Mechanical Property
| Copper Alloy | Chemical Composition | Temper | Mechanical Property | |||
| Copper % | Phosphorus % | Tensile Strength MPa | Elongation % | Hardness HV | ||
| Cu-DHP | ≥ 99.90 | 0.015-0.040 | R220 | ≥ 220 | ≥ 40 | 40-70 |
| Cu-DHP | ≥ 99.90 | 0.015-0.040 | R250 | ≥ 250 | ≥ 30 | 75-100 |
| Cu-DHP | ≥ 99.90 | 0.015-0.040 | R290 | ≥ 290 | ≥ 3 | ≥ 100 |
Cleanness Requirement - Air Conditioner and Refrigeration Copper Tube
| Copper Alloy | Temper | Cleanness | Standard |
| Cu-DHP | R220 | ≤ 38mg/m² | EN 12735-1 |
| Cu-DHP | R2250 | ≤ 38mg/m² | EN 12735-1 |
| Cu-DHP | R290 | ≤ 38mg/m² | EN 12735-1 |
PACKING AND SHIPPING
- Plastic Bag Packing
- Carton Packing (with drier)
- Wooden Pallet
- Plastic Film Packing
