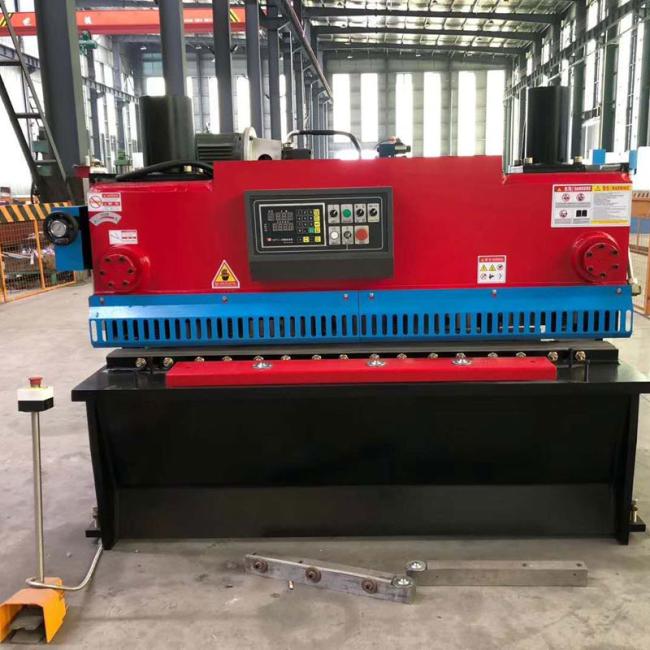

6x1600mm Metal Plate Hydraulic Guillotine Cutting Shears With 2 Cylinder
6*1600mm Carbon steel Metal Plate Hydraulic Guillotine Cutting Shears With 2 Cylinder
The Guillotine shear machine makes heavy-duty shear affordable. Frame and cutting beam offer maximum rigidity and resistance to deflection and torsional force for accurate shearing of mild steel up to30mm. This guillotine shear features four cutting edges that can be turned three times before grinding for increased production life. Cost-efficiently manufactured. Our guillotine shear machine fit your needs and your budget.
Technical Parameters:
| Model |
Thickness (mm) |
Cutting Length (mm) |
Cutting Angle (°) |
Material Strength (KN/CM) |
Stroke (times/min) |
Power (kw) |
Dimension (mm) |
| 4×2500 | 4 | 2500 | 1°30’ | ≤450 | 10 | 5.5 | 3040*1610*1620 |
| 4×3200 | 4 | 3200 | 1°30’ | ≤450 | 10 | 5.5 | 3840*1610*1620 |
| 4×4000 | 4 | 4000 | 1°30’ | ≤450 | 8 | 5.5 | 4600*1700*1700 |
| 4×6000 | 4 | 6000 | 1°30’ | ≤450 | 5 | 7.5 | 6460*2100*3200 |
| 6×2500 | 6 | 2500 | 1°30’ | ≤450 | 10 | 7.5 | 3040*1610*1620 |
| 6×3200 | 6 | 3200 | 1°30’ | ≤450 | 9 | 7.5 | 3840*1610*1620 |
| 6×4000 | 6 | 4000 | 1°30’ | ≤450 | 8 | 7.5 | 4620*1750*1700 |
| 6×5000 | 6 | 5000 | 1°30’ | ≤450 | 6 | 7.5 | 5400*1750*1700 |
| 6×6000 | 6 | 6000 | 1°30’ | ≤450 | 5 | 11 | 6480*2100*2300 |
| 8×2500 | 8 | 2500 | 1°30’ | ≤450 | 10 | 7.5 | 3040*1700*1700 |
| 8×3200 | 8 | 3200 | 1°30’ | ≤450 | 8 | 7.5 | 3860*1700*1700 |
| 8×4000 | 8 | 4000 | 1°30’ | ≤450 | 8 | 7.5 | 4640*1700*1700 |
| 8×5000 | 8 | 5000 | 1°30’ | ≤450 | 8 | 7.5 | 5400*2400*2000 |
| 8×6000 | 8 | 6000 | 1°30’ | ≤450 | 8 | 11 | 6480*2100*2350 |
| 10×2500 | 10 | 2500 | 1°30’ | ≤450 | 9 | 11 | 3040*1700*1700 |
| 10×3200 | 10 | 3200 | 1°30’ | ≤450 | 9 | 11 | 3860*1700*1700 |
| 10×4000 | 10 | 4000 | 1°30’ | ≤450 | 8 | 11 | 4650*2100*2000 |
| 10×6000 | 10 | 6000 | 2° | ≤450 | 5 | 15 | 6500*2100*2300 |
| 12×2500 | 12 | 2500 | 2° | ≤450 | 9 | 18.5 | 3140*2150*2000 |
| 12×3200 | 12 | 3200 | 2° | ≤450 | 9 | 18.5 | 3880*2150*2000 |
| 12×4000 | 12 | 4000 | 2° | ≤450 | 8 | 18.5 | 4680*2150*2000 |
| 12×5000 | 12 | 5000 | 2° | ≤450 | 6 | 18.5 | 5900*2150*2000 |
| 12×6000 | 12 | 6000 | 2° | ≤450 | 5 | 18.5 | 6900*2600*2700 |
| 12×8000 | 12 | 8000 | 2° | ≤450 | 5 | 18.5 | 9000*3500*3500 |
| 16×2500 | 16 | 2500 | 2°30’ | ≤450 | 9 | 18.5 | 3140*2150*2000 |
| 16×3200 | 16 | 3200 | 2°30’ | ≤450 | 8 | 18.5 | 3880*2150*2000 |
| 16×4000 | 16 | 4000 | 2°30’ | ≤450 | 8 | 18.5 | 4650*2150*2200 |
| 16×5000 | 16 | 5000 | 2°30’ | ≤450 | 6 | 18.5 | 5900*2600*2700 |
| 16×6000 | 16 | 6000 | 2°30’ | ≤450 | 5 | 22 | 6900*2700*2700 |
| 16×8000 | 16 | 8000 | 2°30’ | ≤450 | 5 | 22 | 9000*3500*3500 |
| 20×2500 | 20 | 2500 | 3° | ≤450 | 8 | 22 | 3440*2300*2500 |
| 20×3200 | 20 | 3200 | 3° | ≤450 | 8 | 22 | 4150*2350*2700 |
| 20×4000 | 20 | 4000 | 3° | ≤450 | 5 | 22 | 4850*2350*2700 |
| 20×6000 | 20 | 6000 | 3° | ≤450 | 4 | 22 | 4850*2350*2700 |
| 25×2500 | 25 | 2500 | 3° | ≤450 | 8 | 37 | 3200*2700*2900 |
| 25×3200 | 25 | 3200 | 3° | ≤450 | 5 | 37 | 4200*2700*2900 |
| 30×2500 | 30 | 2500 | 3° | ≤450 | 4 | 37 | 3300*2900*2900 |
| 30×3200 | 30 | 3200 | 3°30’ | ≤450 | 4 | 40 | 4200*2900*2900 |
| 40×2500 | 40 | 2500 | 4° | ≤450 | 3 | 75 | 3200*3300*3000 |
| 40×3200 | 40 | 3200 | 4° | ≤450 | 3 | 90 | 4300*3300*3200 |
Blade Adjust and Cutting Precision:
Shearing angle is Variable, which can reduce the shearing deformation of sheet metal and can shear much thicker sheet metal.
Function of shearing in sections, function of aligning with light. Upper blade holder has inward tiling structure to facilitate material feed in and also enhance accuracy of the work piece.
Rectangular blades with four cutting edges to prolong working life, adjustable shearing angle to reduce deformation of the sheet.
