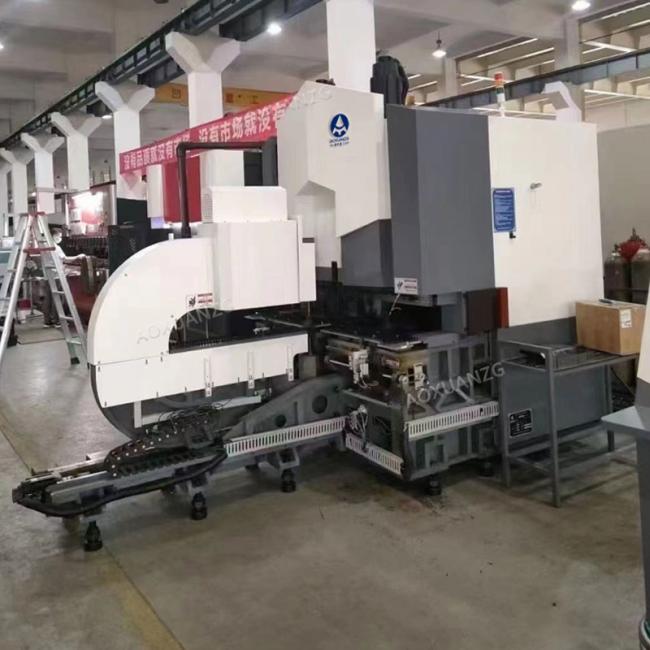

1400mm Metal Plate CNC Press Brake For 1mm Stainless Steel Easy Operate
Price:
$100000-$15000/unit
MOQ:
1 set
Delivery Time:
20-30 working days
Brand:
Aoxuanzg
Product Description
Easy Operate Learn 1400mm CNC Metal Plate Folding Smart Press Brake For 1mm Stainless Steel
| Technical specifications | 1000x | 1400x | 2000x | 2500x | 2500PC | Unite |
| Maximum bending speed | 0.2 | s/times | ||||
| Maximum bending width | 1000 | 1400 | 2000 | 2500 | 2500 | mm |
| Bending height | 170 | mm | ||||
| The rated voltage | 380 | V | ||||
| Total motor power | 11 | 15 | 22 | 25 | 77 | kw |
| Average power | 1.01 | 1.5 | 2.2 | 2.5 | 2.8 | kw |
| The noise sound | About 50 | db | ||||
| Overall dimensions | 285 X 150 X 280 | 365 X 190 X 290 | 420 X 265 X 330 | 480 X 295 X 310 | 510 x 300 x 340 | cm |
| The total quality | About 7 T | About 10 T | About 15 T | About 18 T | About 19 T | T |
| Maximum bending thickness(Thicker plate can be customized) | UTS 515N/mm2 201 Stainless steel 0.8mm | 1 | mm | |||
| UTS 515N/mm2 304 Stainless steel 1.0mm | 1.2 | mm | ||||
| UTS 410N/mm2 Cold plate 1.2mm | 2 | mm | ||||
| UTS 265N/mm2 Aluminum plate 1.6mm | 2.5 | |||||
| Minimum material thickness | 0.35 | mm | ||||
| Minimum size of four sides forming | 140X210 | 140X210 | 220X290 | 220X290 | 140x 190 | mm |
| Minimum size of 2 sides forming | 140 | |||||
| Maximum bending size | 1000X1000 | 1400X1400 | 2000X2000 | 2500X2500 | 2500x 1250 | mm |
| Number of shaft | Standard 9 axis concurrent linkage | 15 axis | ||||
High grade casting
Equipment core framework using high grade QT500-7 and HT250 castings, and must be measured by a testing instrument. After precise finite element force analysis, the frame adopts the most stable triangular interconnection design, which greatly guarantees the stability under high tonnage impact force.
High welding standard
No matter big and small, in the whole welding process adopts carbon dioxide protection welding. Every welding place ues full welding technology to ensure the welding workpiece is strong and beautiful.
Thoroughly eliminate stress
Both casting and welding support mesa, adopt high precision temperature control furnace,according to the material of the corresponding temperature curve to make multiple tempering, annealing and other heat treatment process, then enough long full frequency vibration aging treatment, completely release the internal stress of workpiece,ensure that used for a long time not to be out of shape.
Precision machining
Different fixtures are designed for different workpieces, and the high-precision multi-axis machining center is used to finish the workpieces, which ensures the consistency of the precision before and after clamping.
Strict testing
Using high-precision micrometer U meter, with marble platform and marble square feet with tens of millions of years of aging,accurate measurement for each workpiece, control the processing quality of each workpiece strictly and check on strictly, to ensure that the assembly precision of the whole machine meets the standard of high-precision machine tools.
