Carbon Steel Metal Plate Hydraulic Swing Shearing Machine 6x2500mm
6*2500mm Carbon Steel Hydraulic Swing Shears Cutter Metal Plate Shearing Machine price

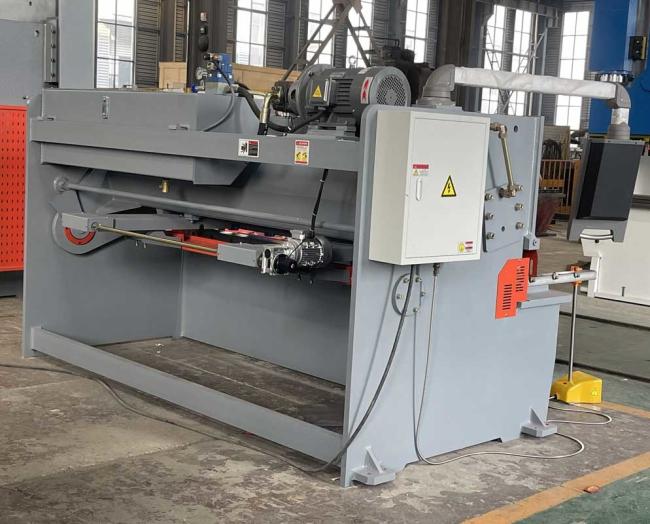

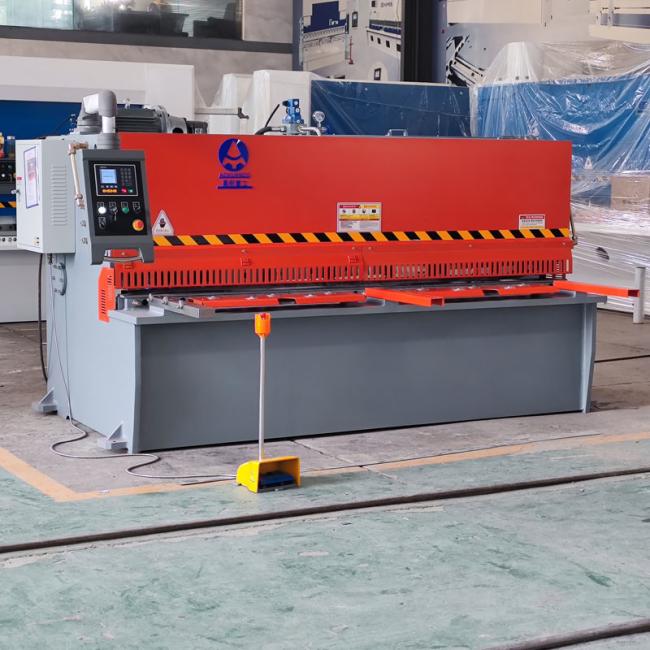

QC11K series hydraulic shearing machine
It is suitable for cutting carbon steel,stainless steel,galvanized sheet,aluminum and many other metals.It is widely used in metal processing industry,machine building industry,building construction,mining industry,railway construction and aerospace Industry.
Features:
This machine adopts hydraulic driving and swing tool carrier,the structure is convenient to operate to operate and maintain. the characteristic of it is that it has complete fuctions mechanical back gauge manually operated trimming and numberical value display structure it also has blade clearnce "Quick set" device,line on the plate,MD11 ,E21S,TP10S system Available as optional.
Technical Parameters:
| Model |
Thickness (mm) |
Cutting Length (mm) |
Cutting Angle (°) |
Material Strength (KN/CM) |
Stroke (times/min) |
Power (kw) |
Dimension (mm) |
| 4×2500 | 4 | 2500 | 1°30’ | ≤450 | 10 | 5.5 | 3040*1610*1620 |
| 4×3200 | 4 | 3200 | 1°30’ | ≤450 | 10 | 5.5 | 3840*1610*1620 |
| 4×4000 | 4 | 4000 | 1°30’ | ≤450 | 8 | 5.5 | 4600*1700*1700 |
| 4×6000 | 4 | 6000 | 1°30’ | ≤450 | 5 | 7.5 | 6460*2100*3200 |
| 6×2500 | 6 | 2500 | 1°30’ | ≤450 | 10 | 7.5 | 3040*1610*1620 |
| 6×3200 | 6 | 3200 | 1°30’ | ≤450 | 9 | 7.5 | 3840*1610*1620 |
| 6×4000 | 6 | 4000 | 1°30’ | ≤450 | 8 | 7.5 | 4620*1750*1700 |
| 6×5000 | 6 | 5000 | 1°30’ | ≤450 | 6 | 7.5 | 5400*1750*1700 |
| 6×6000 | 6 | 6000 | 1°30’ | ≤450 | 5 | 11 | 6480*2100*2300 |
| 8×2500 | 8 | 2500 | 1°30’ | ≤450 | 10 | 7.5 | 3040*1700*1700 |
| 8×3200 | 8 | 3200 | 1°30’ | ≤450 | 8 | 7.5 | 3860*1700*1700 |
| 8×4000 | 8 | 4000 | 1°30’ | ≤450 | 8 | 7.5 | 4640*1700*1700 |
| 8×5000 | 8 | 5000 | 1°30’ | ≤450 | 8 | 7.5 | 5400*2400*2000 |
| 8×6000 | 8 | 6000 | 1°30’ | ≤450 | 8 | 11 | 6480*2100*2350 |
| 10×2500 | 10 | 2500 | 1°30’ | ≤450 | 9 | 11 | 3040*1700*1700 |
| 10×3200 | 10 | 3200 | 1°30’ | ≤450 | 9 | 11 | 3860*1700*1700 |
| 10×4000 | 10 | 4000 | 1°30’ | ≤450 | 8 | 11 | 4650*2100*2000 |
| 10×6000 | 10 | 6000 | 2° | ≤450 | 5 | 15 | 6500*2100*2300 |
| 12×2500 | 12 | 2500 | 2° | ≤450 | 9 | 18.5 | 3140*2150*2000 |
| 12×3200 | 12 | 3200 | 2° | ≤450 | 9 | 18.5 | 3880*2150*2000 |
| 12×4000 | 12 | 4000 | 2° | ≤450 | 8 | 18.5 | 4680*2150*2000 |
| 12×5000 | 12 | 5000 | 2° | ≤450 | 6 | 18.5 | 5900*2150*2000 |
| 12×6000 | 12 | 6000 | 2° | ≤450 | 5 | 18.5 | 6900*2600*2700 |
| 12×8000 | 12 | 8000 | 2° | ≤450 | 5 | 18.5 | 9000*3500*3500 |
| 16×2500 | 16 | 2500 | 2°30’ | ≤450 | 9 | 18.5 | 3140*2150*2000 |
| 16×3200 | 16 | 3200 | 2°30’ | ≤450 | 8 | 18.5 | 3880*2150*2000 |
| 16×4000 | 16 | 4000 | 2°30’ | ≤450 | 8 | 18.5 | 4650*2150*2200 |
| 16×5000 | 16 | 5000 | 2°30’ | ≤450 | 6 | 18.5 | 5900*2600*2700 |
| 16×6000 | 16 | 6000 | 2°30’ | ≤450 | 5 | 22 | 6900*2700*2700 |
| 16×8000 | 16 | 8000 | 2°30’ | ≤450 | 5 | 22 | 9000*3500*3500 |
| 20×2500 | 20 | 2500 | 3° | ≤450 | 8 | 22 | 3440*2300*2500 |
| 20×3200 | 20 | 3200 | 3° | ≤450 | 8 | 22 | 4150*2350*2700 |
| 20×4000 | 20 | 4000 | 3° | ≤450 | 5 | 22 | 4850*2350*2700 |
| 20×6000 | 20 | 6000 | 3° | ≤450 | 4 | 22 | 4850*2350*2700 |
| 25×2500 | 25 | 2500 | 3° | ≤450 | 8 | 37 | 3200*2700*2900 |
| 25×3200 | 25 | 3200 | 3° | ≤450 | 5 | 37 | 4200*2700*2900 |
| 30×2500 | 30 | 2500 | 3° | ≤450 | 4 | 37 | 3300*2900*2900 |
| 30×3200 | 30 | 3200 | 3°30’ | ≤450 | 4 | 40 | 4200*2900*2900 |
| 40×2500 | 40 | 2500 | 4° | ≤450 | 3 | 75 | 3200*3300*3000 |
| 40×3200 | 40 | 3200 | 4° | ≤450 | 3 | 90 | 4300*3300*3200 |
Details:
Packing Detail:
☂ Each pneumatic press with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
Delivery Detail :
☀ Shipped in 30 days after payment.
Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.
In-sales.
* We will provide you with the latest progress in the product assembly, packaging and transportation.
After-sale.
* We will provide free accessories for the damage to non - human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.
