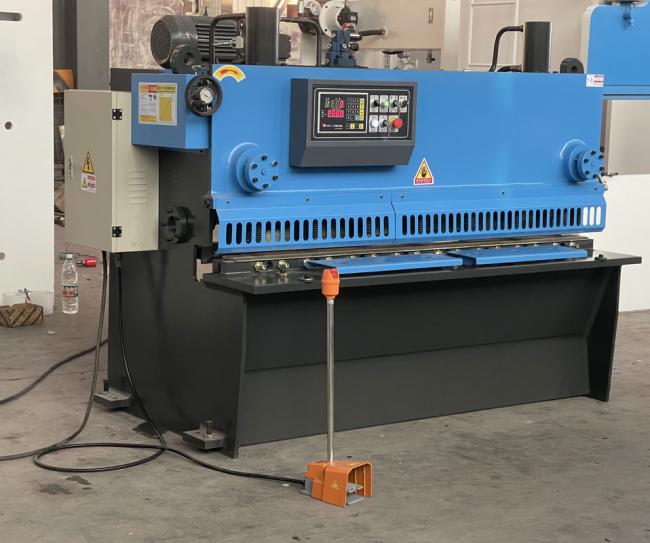

Metal Plate Hydraulic Guillotine Cutting Machine Shears 4x1600mm Long Life
Long Life Metal Plate Hydraulic Guillotine Cutting Machine Shears 4*1600mm To South Korea
Standard Equipment:
1. Rapid and precise blade clearance adjustment by single handle on the side frame
2. Multi Edge Blades for cutting Aluminium, Mild Steel and Stainless Steel
3. Cutting Line Illumination and wire for shadow line cutting
4. Counter of Strokes, Cutting Length Adjustment
5. Hydraulic and Electrical overload protection
6. Squaring Arm and Front Support Arms
7. Estun E21S NC control
8. Germany Bosch-Rexroth Hydraulic
9. Schneider Electrics
10. Hydraulic and Electrical overload protection
11. Delta inverter with ball screw and polished rod with 0,05 mm accuracy.
12. Side guard is standard meeting CE regulations.
Estun E21s
1. Backgauge and block control
2. Control for general AC motors, frequency inverter
3. Intelligent positioning
4. Stock counter
5. Holding/decompression time setting
6. Program memory of up to 40 programs
7. Up to 25 steps per program
8. One side positioning
9. Retract function
10. One key backup/restore of parameters
11. mm/inch
12. Chinese /English
Technical Parameters:
| Model |
Thickness (mm) |
Cutting Length (mm) |
Cutting Angle (°) |
Material Strength (KN/CM) |
Stroke (times/min) |
Power (kw) |
Dimension (mm) |
| 4×2500 | 4 | 2500 | 1°30’ | ≤450 | 10 | 5.5 | 3040*1610*1620 |
| 4×3200 | 4 | 3200 | 1°30’ | ≤450 | 10 | 5.5 | 3840*1610*1620 |
| 4×4000 | 4 | 4000 | 1°30’ | ≤450 | 8 | 5.5 | 4600*1700*1700 |
| 4×6000 | 4 | 6000 | 1°30’ | ≤450 | 5 | 7.5 | 6460*2100*3200 |
| 6×2500 | 6 | 2500 | 1°30’ | ≤450 | 10 | 7.5 | 3040*1610*1620 |
| 6×3200 | 6 | 3200 | 1°30’ | ≤450 | 9 | 7.5 | 3840*1610*1620 |
| 6×4000 | 6 | 4000 | 1°30’ | ≤450 | 8 | 7.5 | 4620*1750*1700 |
| 6×5000 | 6 | 5000 | 1°30’ | ≤450 | 6 | 7.5 | 5400*1750*1700 |
| 6×6000 | 6 | 6000 | 1°30’ | ≤450 | 5 | 11 | 6480*2100*2300 |
| 8×2500 | 8 | 2500 | 1°30’ | ≤450 | 10 | 7.5 | 3040*1700*1700 |
| 8×3200 | 8 | 3200 | 1°30’ | ≤450 | 8 | 7.5 | 3860*1700*1700 |
| 8×4000 | 8 | 4000 | 1°30’ | ≤450 | 8 | 7.5 | 4640*1700*1700 |
| 8×5000 | 8 | 5000 | 1°30’ | ≤450 | 8 | 7.5 | 5400*2400*2000 |
| 8×6000 | 8 | 6000 | 1°30’ | ≤450 | 8 | 11 | 6480*2100*2350 |
| 10×2500 | 10 | 2500 | 1°30’ | ≤450 | 9 | 11 | 3040*1700*1700 |
| 10×3200 | 10 | 3200 | 1°30’ | ≤450 | 9 | 11 | 3860*1700*1700 |
| 10×4000 | 10 | 4000 | 1°30’ | ≤450 | 8 | 11 | 4650*2100*2000 |
| 10×6000 | 10 | 6000 | 2° | ≤450 | 5 | 15 | 6500*2100*2300 |
| 12×2500 | 12 | 2500 | 2° | ≤450 | 9 | 18.5 | 3140*2150*2000 |
| 12×3200 | 12 | 3200 | 2° | ≤450 | 9 | 18.5 | 3880*2150*2000 |
| 12×4000 | 12 | 4000 | 2° | ≤450 | 8 | 18.5 | 4680*2150*2000 |
| 12×5000 | 12 | 5000 | 2° | ≤450 | 6 | 18.5 | 5900*2150*2000 |
| 12×6000 | 12 | 6000 | 2° | ≤450 | 5 | 18.5 | 6900*2600*2700 |
| 12×8000 | 12 | 8000 | 2° | ≤450 | 5 | 18.5 | 9000*3500*3500 |
| 16×2500 | 16 | 2500 | 2°30’ | ≤450 | 9 | 18.5 | 3140*2150*2000 |
| 16×3200 | 16 | 3200 | 2°30’ | ≤450 | 8 | 18.5 | 3880*2150*2000 |
| 16×4000 | 16 | 4000 | 2°30’ | ≤450 | 8 | 18.5 | 4650*2150*2200 |
| 16×5000 | 16 | 5000 | 2°30’ | ≤450 | 6 | 18.5 | 5900*2600*2700 |
| 16×6000 | 16 | 6000 | 2°30’ | ≤450 | 5 | 22 | 6900*2700*2700 |
| 16×8000 | 16 | 8000 | 2°30’ | ≤450 | 5 | 22 | 9000*3500*3500 |
| 20×2500 | 20 | 2500 | 3° | ≤450 | 8 | 22 | 3440*2300*2500 |
| 20×3200 | 20 | 3200 | 3° | ≤450 | 8 | 22 | 4150*2350*2700 |
| 20×4000 | 20 | 4000 | 3° | ≤450 | 5 | 22 | 4850*2350*2700 |
| 20×6000 | 20 | 6000 | 3° | ≤450 | 4 | 22 | 4850*2350*2700 |
| 25×2500 | 25 | 2500 | 3° | ≤450 | 8 | 37 | 3200*2700*2900 |
| 25×3200 | 25 | 3200 | 3° | ≤450 | 5 | 37 | 4200*2700*2900 |
| 30×2500 | 30 | 2500 | 3° | ≤450 | 4 | 37 | 3300*2900*2900 |
| 30×3200 | 30 | 3200 | 3°30’ | ≤450 | 4 | 40 | 4200*2900*2900 |
| 40×2500 | 40 | 2500 | 4° | ≤450 | 3 | 75 | 3200*3300*3000 |
| 40×3200 | 40 | 3200 | 4° | ≤450 | 3 | 90 | 4300*3300*3200 |
Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.
In-sales.
* We will provide you with the latest progress in the product assembly, packaging and transportation.
After-sale.
* We will provide free accessories for the damage to non - human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.
