Upper Roller Universal Hydraulic 3 Roller Plate Bending Machine PLC

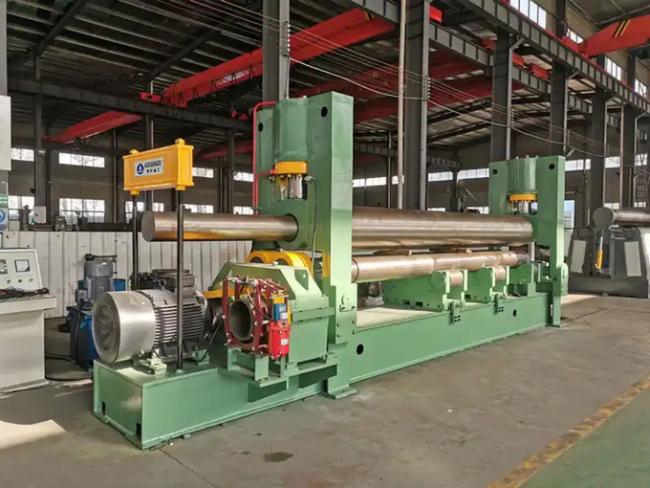

W11S-20x6000 Upper Roller Universal Hydraulic 3 Rollers Plate Bending Machine Rolling machine
The machine is a hydraulic three-roll plate rolling machine, which is used to roll the plate into a cylindrical shape. Pre-bending is achieved by the horizontal movement of the upper roller; there is a relative displacement with the lower roller. The two lower rollers are driven by a motor and a reducer during rounding. Since the height of the lower roller is constant, it is easy to feed and operate. The dumping frame is hydraulically designed.
Technical parameter:
| Model type | Max thickness (mm) |
Max length (mm) |
Upper roller diameter (mm) |
Lower roller diameter (mm) |
Rollers center distance (mm) |
Main motor (kw) |
Hydraulic motor power (KW) |
| W11S-12*2000 | 12 | 2000 | 255 | 150 | 245 | 7.5 | 4 |
| W11S-12*2500 | 12 | 2500 | 300 | 165 | 270 | 11 | 5.5 |
| W11S-12*3200 | 12 | 3200 | 320 | 180 | 300 | 15 | 5.5 |
| W11S-16*2000 | 16 | 2000 | 300 | 165 | 270 | 11 | 5.5 |
| W11S-16*2500 | 16 | 2500 | 320 | 180 | 300 | 15 | 5.5 |
| W11S-16*3200 | 16 | 3200 | 380 | 200 | 330 | 22 | 7.5 |
| W11S-20*2000 | 20 | 2000 | 320 | 180 | 300 | 15 | 5.5 |
| W11S-20*2500 | 20 | 2500 | 380 | 220 | 360 | 22 | 7.5 |
| W11S-25*2000 | 25 | 2000 | 380 | 220 | 360 | 22 | 7.5 |
| W11S-25*2500 | 25 | 2500 | 410 | 235 | 380 | 30 | 11 |
| W11S-30*2000 | 30 | 2000 | 410 | 235 | 380 | 30 | 11 |
| W11S-30*2500 | 30 | 2500 | 460 | 260 | 420 | 37 | 15 |
| W11S-30*3000 | 30 | 3000 | 480 | 260 | 420 | 37 | 15 |
| W11S-30*3200 | 30 | 3200 | 510 | 275 | 460 | 45 | 15 |
| W11S-30*4000 | 30 | 4000 | 590 | 290 | 500 | 45 | 22 |
| W11S-40*2000 | 40 | 2000 | 480 | 260 | 420 | 37 | 32 |
| W11S-40*2500 | 40 | 2500 | 520 | 290 | 500 | 55 | 22 |
| W11S-40*3000 | 40 | 3000 | 560 | 290 | 500 | 55 | 22 |
| W11S-40*4000 | 40 | 4000 | 610 | 360 | 650 | 75 | 30 |
| W11S-50*3200 | 50 | 3200 | 610 | 360 | 700 | 75 | 30 |
Details (optional):
1. Main power supply: German Siemens motor
2. Main electronic components: French Schneider;
3. Axle: German double row self-aligning bearing
4. Main motor: German Siemens motor
5. Programmable logic controller PLC: Japanese OMRON product
6. Hydraulic system: German Bosch-Rexroth
7. Gear pump: Made in Taiwan, China;
8. Work roll: The work roll is made of 42CrMo alloy steel.
9. Digital display system: Delta touch screen
10 Transducers: Omron, made in Japan
11. Automatic lubrication system: Sino-Japanese joint venture, with stall alarm
Packing:
1. Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2. After tested, the machines will be wrapped with plastic sheet ,
3,a,Small size : carefully packed in wooden cases ;
b,Big size: machine will be securely wired into the container by steel wire.
Packing Detail:
☂ Each Press Brake with plastic film package first, then placed in a wooden case, wooden case with a foam filling.
✈ We loaded the truck with heavy trucks for loading the cargo to the harbor terminal.At the dock we pack the goods in containers and ship them abroad.
Delivery Detail :
☀ Shipped in 30 days after payment.
Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.
In-sales.
* We will provide you with the latest progress in the product assembly, packaging and transportation.
After-sale.
* We will provide free accessories for the damage to non - human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.
