WC67K 160T 3200mm CNC Press Brake With TP10s For Metal Sheet Bending
Brief introduction
This is a 160T 3200mm bending machine with TP10S system. It can fold up to 3200mm metal plate, 6.2mm thick carbon steel and 3.1mm stainless steel. The Tp10s system has a color screen display, and the angle can be quickly programmed by inputting the desired value, which is very popular among customers.
Main Features:
1. Special numeric-control system is fitted with mainframe of the bending machine.
2. Multi-work-stop programming function is able to achieve an automatic operation and continues positing of multi-step procedures, as well as an automatic precision adjustment for positions of rear stopper and gliding block.
3. Imported ball bearing lead screw and linear guide rail are used for rear stopper, to ensure the positioning precision of rear stopper, for processing precision of machine to be higher.
The standard cofiguration:
TP10S Controller
HIWIN ball screw and linear guide rail
Germany Rexroth hydraulic valve block
Germany EMB oil tube connector
Germany Siemens main motor
France Schneider electrics
Upper and lower dies

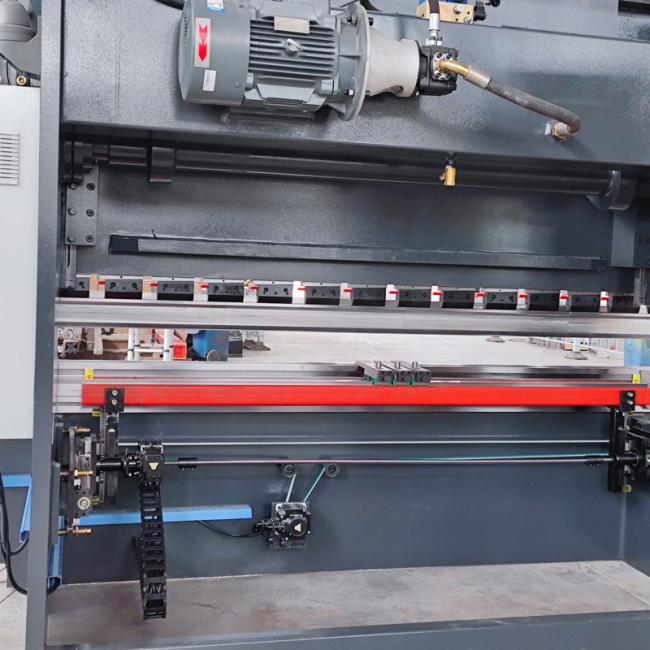

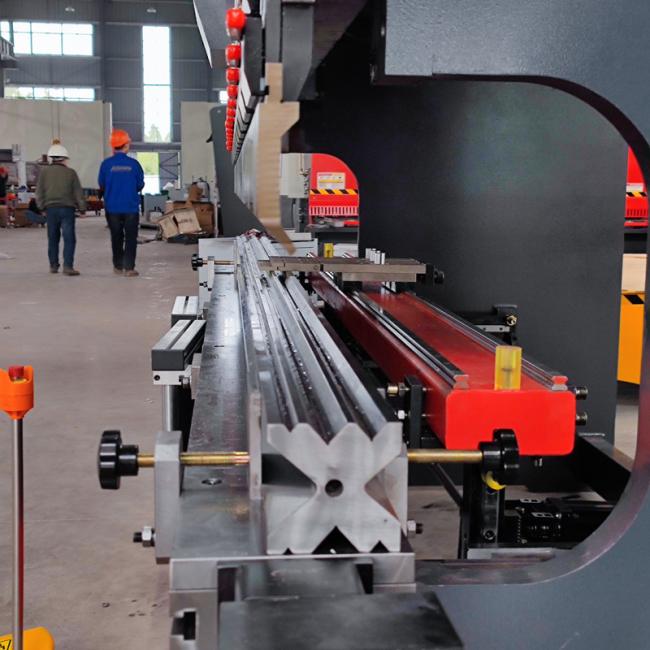

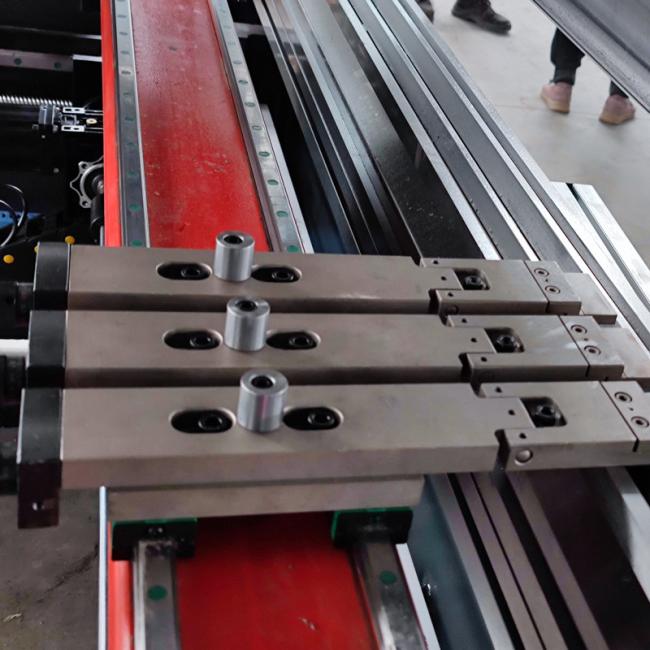

Details:
Technical Parameters:
| Model | Nominal pressure (KN) | Worktable Length (mm) | Columns Distance (mm) | Throat | Slider | Max | Main | Dimension |
| Depth | Stroke | Open | motor | L x W x H | ||||
| (mm) | (mm) | height | Power | (mm) | ||||
| (mm) | (KW) | |||||||
| WC67Y/K-30/1600 | 300 | 1600 | 1280 | 200 | 80 | 190 | 3 | 1700×900×1650 |
| WC67Y/K-30/2000 | 300 | 2000 | 1280 | 200 | 80 | 190 | 3 | 1700×900×1650 |
| WC67Y/K-40/2500 | 400 | 2500 | 1900 | 280 | 100 | 320 | 5.5 | 2600×1100×1900 |
| WC67Y/K-63/2500 | 630 | 2500 | 1900 | 350 | 170 | 380 | 5.5 | 3100×1450×2050 |
| WC67Y/K-80/3200 | 800 | 3200 | 2700 | 350 | 170 | 380 | 7.5 | 3500×1550×2100 |
| WC67Y/K-100/3200 | 1000 | 3200 | 2700 | 400 | 200 | 420 | 7.5 | 3500×1580×2400 |
| WC67Y/K-160/3200 | 1600 | 3200 | 2700 | 400 | 200 | 420 | 11 | 3500×1650×2550 |
| WC67Y/K-200/3200 | 2000 | 3200 | 2700 | 400 | 200 | 420 | 15 | 3500×1680×2550 |
| WC67Y/K-250/3200 | 2500 | 3200 | 2700 | 400 | 200 | 420 | 15 | 3500×1700×2600 |
| WC67Y/K-320/3200 | 3200 | 3200 | 2700 | 400 | 200 | 420 | 22 | 3500×1800×2730 |
Certifications:
Packing Detail:
A 160T 3200MM one will first be covered by plastic film and it needs a 20' container for shippment.
Delivery Detail:
Shipped in 30 days after payment.
Our Company:
Our workshop:
FAQ:
1. Are you the manufacture?Can we visit your factory? We are manufacturer and we are located in Anhui,China.And we have our
own design team for products design. And welcome you visit our factory and check our machine qualtiy on spot,any question will
be solved on spot at first time.
2. What are the advantages of your machines?And how can i believe the quality of your product? The main configuration is to im
port quality products, and Professional product quality inspection teamensure machine in top-quality, precision and life. For exam
ple,Germany Bosch-Rexroth Valve group,Germany Siemens Main Motor,Schneider Electrics system and so on. Once tested as q
ualified .our machine would be sent out.So The quality of our product is stable and reliable.
3. And are you able to update the production process Information in time after placing our order? After confirming your order ,we
would keep you updated of production details of emails and photos.
4. Payment terms? T/T, L/C, Western Union, Paypal, Alibaba Secure Payment ect. Buyer pays 30% by T/T to start this order, rest
70%paid before shipment.
5.Are you provide product metal parts and provide us technical guidance? Wearing parts,Disassembly tool(free) are what we cou
ld provide.And we can give you technical guidance.Our technical staff can go abroad to provide you with technical guidance.
