4*2500mm Cutting CNC Hydraulic Guliitine Shearing Machine With E21S Metal Plate Cutter
4*2500mm Cutting CNC Hydraulic Guliitine Shearing Machine With E21S Metal Plate Cutter
Product Description:
This machine makes use of hydraulic driving and swing tool carrier, making it both convenient to operate and maintain. It features complete functions for mechanical back gauge, manual-operated trimming and numerical value display of blade clearance, as well as the "Quick Set" device, and the optional MD11, E21S and TP10S systems.
Moreover, line marking on the plate is also available.
Applications:
The QC11K Series Hydraulic Shearing Machine is a powerful tool perfect for cutting various metals. This includes carbon steel, stainless steel, galvanized sheet and aluminum. It is the go-to tool for industrial processes such as metal processing, machine building, building construction, mining, railway construction and aerospace.
This machine is capable of handling multiple tasks with its powerful performance. Its easy to use controls, combined with its efficiency make it the ideal tool for operations requiring inconsistent cuts. With a long list of features, the QC11K Series Shearing Machine gives you precision cuts, no matter the material.
Technical parameter:
| Model |
Thickness (mm) |
Cutting Length (mm) |
Cutting Angle (°) |
Material Strength (KN/CM) |
Stroke (times/min) |
Power (kw) |
Dimension (mm) |
| 4×2500 | 4 | 2500 | 1°30’ | ≤450 | 10 | 5.5 | 3040*1610*1620 |
| 4×3200 | 4 | 3200 | 1°30’ | ≤450 | 10 | 5.5 | 3840*1610*1620 |
| 4×4000 | 4 | 4000 | 1°30’ | ≤450 | 8 | 5.5 | 4600*1700*1700 |
| 4×6000 | 4 | 6000 | 1°30’ | ≤450 | 5 | 7.5 | 6460*2100*3200 |
| 6×2500 | 6 | 2500 | 1°30’ | ≤450 | 10 | 7.5 | 3040*1610*1620 |
| 6×3200 | 6 | 3200 | 1°30’ | ≤450 | 9 | 7.5 | 3840*1610*1620 |
| 6×4000 | 6 | 4000 | 1°30’ | ≤450 | 8 | 7.5 | 4620*1750*1700 |
| 6×5000 | 6 | 5000 | 1°30’ | ≤450 | 6 | 7.5 | 5400*1750*1700 |
| 6×6000 | 6 | 6000 | 1°30’ | ≤450 | 5 | 11 | 6480*2100*2300 |
| 8×2500 | 8 | 2500 | 1°30’ | ≤450 | 10 | 7.5 | 3040*1700*1700 |
| 8×3200 | 8 | 3200 | 1°30’ | ≤450 | 8 | 7.5 | 3860*1700*1700 |
| 8×4000 | 8 | 4000 | 1°30’ | ≤450 | 8 | 7.5 | 4640*1700*1700 |
| 8×5000 | 8 | 5000 | 1°30’ | ≤450 | 8 | 7.5 | 5400*2400*2000 |
| 8×6000 | 8 | 6000 | 1°30’ | ≤450 | 8 | 11 | 6480*2100*2350 |
| 10×2500 | 10 | 2500 | 1°30’ | ≤450 | 9 | 11 | 3040*1700*1700 |
| 10×3200 | 10 | 3200 | 1°30’ | ≤450 | 9 | 11 | 3860*1700*1700 |
| 10×4000 | 10 | 4000 | 1°30’ | ≤450 | 8 | 11 | 4650*2100*2000 |
| 10×6000 | 10 | 6000 | 2° | ≤450 | 5 | 15 | 6500*2100*2300 |
| 12×2500 | 12 | 2500 | 2° | ≤450 | 9 | 18.5 | 3140*2150*2000 |
| 12×3200 | 12 | 3200 | 2° | ≤450 | 9 | 18.5 | 3880*2150*2000 |
| 12×4000 | 12 | 4000 | 2° | ≤450 | 8 | 18.5 | 4680*2150*2000 |
| 12×5000 | 12 | 5000 | 2° | ≤450 | 6 | 18.5 | 5900*2150*2000 |
| 12×6000 | 12 | 6000 | 2° | ≤450 | 5 | 18.5 | 6900*2600*2700 |
| 12×8000 | 12 | 8000 | 2° | ≤450 | 5 | 18.5 | 9000*3500*3500 |
| 16×2500 | 16 | 2500 | 2°30’ | ≤450 | 9 | 18.5 | 3140*2150*2000 |
| 16×3200 | 16 | 3200 | 2°30’ | ≤450 | 8 | 18.5 | 3880*2150*2000 |
| 16×4000 | 16 | 4000 | 2°30’ | ≤450 | 8 | 18.5 | 4650*2150*2200 |
| 16×5000 | 16 | 5000 | 2°30’ | ≤450 | 6 | 18.5 | 5900*2600*2700 |
| 16×6000 | 16 | 6000 | 2°30’ | ≤450 | 5 | 22 | 6900*2700*2700 |
| 16×8000 | 16 | 8000 | 2°30’ | ≤450 | 5 | 22 | 9000*3500*3500 |
| 20×2500 | 20 | 2500 | 3° | ≤450 | 8 | 22 | 3440*2300*2500 |
| 20×3200 | 20 | 3200 | 3° | ≤450 | 8 | 22 | 4150*2350*2700 |
| 20×4000 | 20 | 4000 | 3° | ≤450 | 5 | 22 | 4850*2350*2700 |
| 20×6000 | 20 | 6000 | 3° | ≤450 | 4 | 22 | 4850*2350*2700 |
| 25×2500 | 25 | 2500 | 3° | ≤450 | 8 | 37 | 3200*2700*2900 |
| 25×3200 | 25 | 3200 | 3° | ≤450 | 5 | 37 | 4200*2700*2900 |
| 30×2500 | 30 | 2500 | 3° | ≤450 | 4 | 37 | 3300*2900*2900 |
| 30×3200 | 30 | 3200 | 3°30’ | ≤450 | 4 | 40 | 4200*2900*2900 |
| 40×2500 | 40 | 2500 | 4° | ≤450 | 3 | 75 | 3200*3300*3000 |
| 40×3200 | 40 | 3200 | 4° | ≤450 | 3 | 90 | 4300*3300*3200 |
Details:
Hydraulic transmission with high reliabilty ,integrated dydraulic system can effectively alleviate problems caused by leakage of hydraulic fluid
Rlling see bal of workbench can reduce tncto prolet the wokple urfee dlicate desin is convenienfor ctting pelly materials by hand.
Electrical components are imported or from Sino-foreign joint Venture,in accordance with international standards,eliable safety long life,good anti-interference ability.
Rapid adjustment mechanism for rearranging blade clearance,easy operation by hand,realizing stepless adjustment of blade clearance

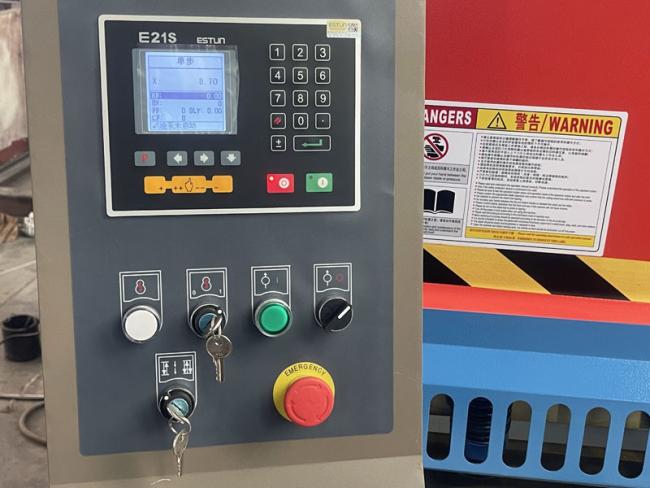

1. E21S-Estun: digital monitor to display the position of the back gauge
2. REXROTH, Germany hydraulic system
3. SUNNY, USA oil pump with slide-in pipes joints
4. Back gauge is moved with T-screw shaft, guided by rod-shaft and driven by AC motor
5. Motorized adjustment of blade gap and shearing angle
6. Hydraulic hold downs with sequential operation
7. Moveable foot switch
8. Finger guard
9. Interchangeable blades with four cutting edges
10. One set of standard blade (upper and lower) materials is 6CrW2Si
11. Front support arms with length 1000mm (at least 3pcs)
12. Ball worktable ,reduce the contact between sheet plate and machine work table
13. Often-used internal hexagonal key spanner for adjusting blades
14. Comprehensive instruction & maintenance manual
Support and Services:
We provide comprehensive technical support and services for our Hydraulic Swing Shearing Machine to ensure that it works correctly and efficiently.
Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.
In-sales.
* We will provide you with the latest progress in the product assembly, packaging and transportation.
After-sale.
* We will provide free accessories for the damage to non - human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.
FAQ:
Hydraulic Swing Shearing Machine FAQs
- Q: What is the Brand Name of Hydraulic Swing Shearing Machine?
- A: The Brand Name of Hydraulic Swing Shearing Machine is Aoxuan.
- Q: What is the Model Number of Hydraulic Swing Shearing Machine?
- A: The Model Number of Hydraulic Swing Shearing Machine is QC11K-4*2500mm.
- Q: Where is Hydraulic Swing Shearing Machine made?
- A: Hydraulic Swing Shearing Machine is made in Maanshan.
- Q: Does Hydraulic Swing Shearing Machine meet the CE certification?
- A: Yes, Hydraulic Swing Shearing Machine meets the CE certification.
- Q: What is the Minimum Order Quantity for Hydraulic Swing Shearing Machine?
- A: The Minimum Order Quantity for Hydraulic Swing Shearing Machine is 1 SET.
- Q: How much does Hydraulic Swing Shearing Machine cost?
- A: The price of Hydraulic Swing Shearing Machine is between $6500-$7300.
- Q: How is Hydraulic Swing Shearing Machine packaged?
- A: Hydraulic Swing Shearing Machine is packaged in LCL.
- Q: How long does it take to deliver Hydraulic Swing Shearing Machine?
- A: It takes 35 DAYS to deliver Hydraulic Swing Shearing Machine.
- Q: What are the Payment Terms for Hydraulic Swing Shearing Machine?
- A: The Payment Terms for Hydraulic Swing Shearing Machine is 50% deposit.
- Q: How many sets of Hydraulic Swing Shearing Machine can be supplied each year?
- A: Up to 300 sets of Hydraulic Swing Shearing Machine can be supplied each year.
![]()
