WE67K-250T3200MM Large Sheet Metal Processing Equipment Bending Machine Light Pole Bending
Features:
Multi-axis bending machines are all electro-hydraulic servo models, with 4+1 axes including X, Y1, Y2, R+ V. The R-axis is used to control the up and down movement of the rear gauge, which will increase product processing accuracy.
Features:
| Product Name: | Hydraulic CNC Press Brake |
| Motor Power: | 20kw |
| Max. Bending Force: | 2500kn |
| Back Gauge Accuracy: | ±0.01mm |
| Max. Bending Length: | 3200mm |
| Max. Bending Thickness: | 9.5mm Carbon Steel, 4.8mm Stainless Steel |
Technical Parameters:
| Technical Parameters | Data |
|---|---|
| Max. Bending Length | 3200mm |
| Pressure | Hydraulic |
| Type | CNC Press Brake |
| Maximum open height | 560mm |
| Throat depth | 400mm |
| Max. Bending Angle | 30-180 |
| Overall Dimension | 3750x2200x3100mm |
| Distance between housings | 2540mm |
Applications:
AOXUANZG WE67K-250T3200MM Hydraulic CNC Press Brake is a press brakes designed for high-precision and efficient bending of metal sheets and plates.This press brake also has a CE and ISO certification, and overall dimensions of 3750x2200x3100mm. With its advanced CNC control system, it can be used for accurate and precise bending of metal workpieces with a high degree of automation. It is the perfect solution for metal fabrication shops for producing high-quality metal parts.
Configurations:
Germany Bosch Rexroth safety valve
Germany EMB Hose connector
Schneider Electric Syste
RV reducer motor working table compensation (Optional)
Compensation device on workbench (Optional)
Quick mold clamping device

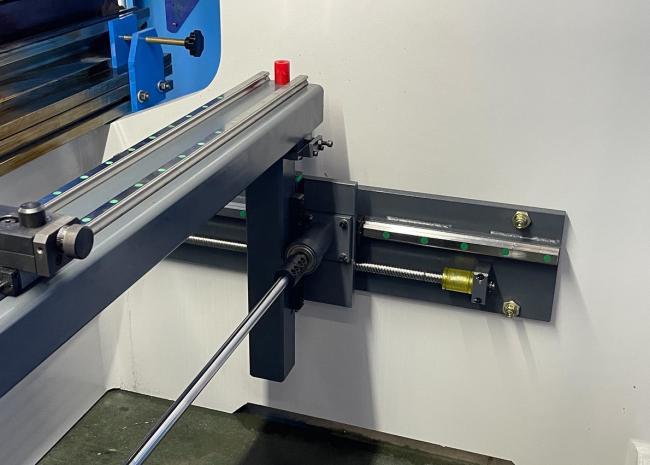

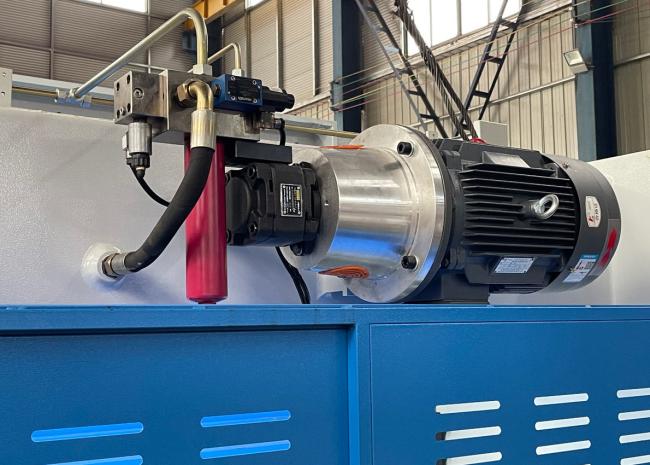

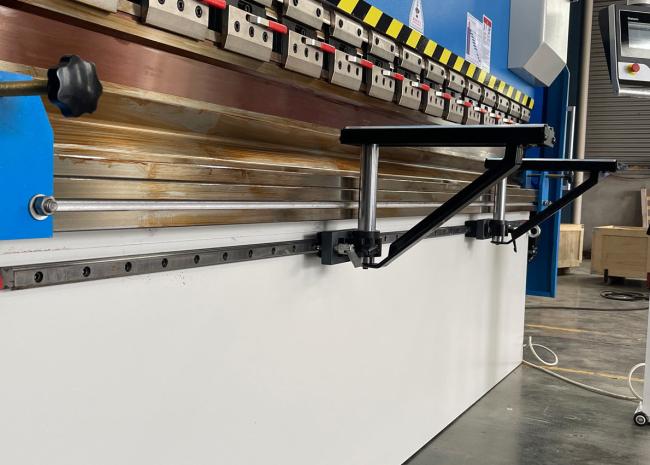

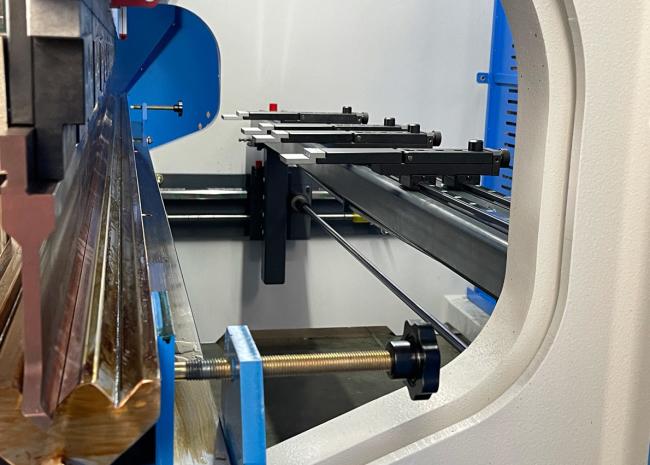

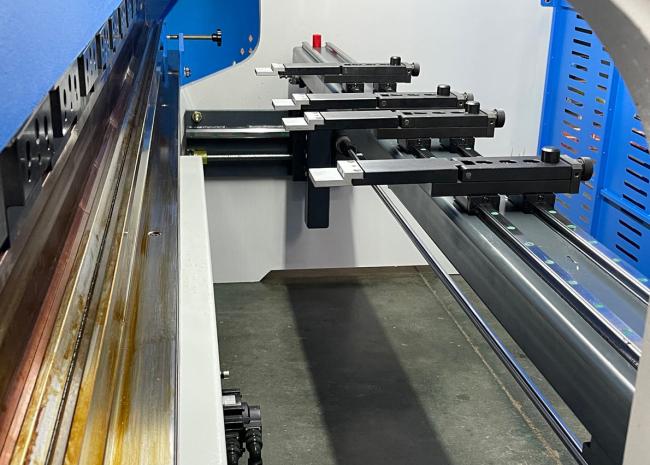

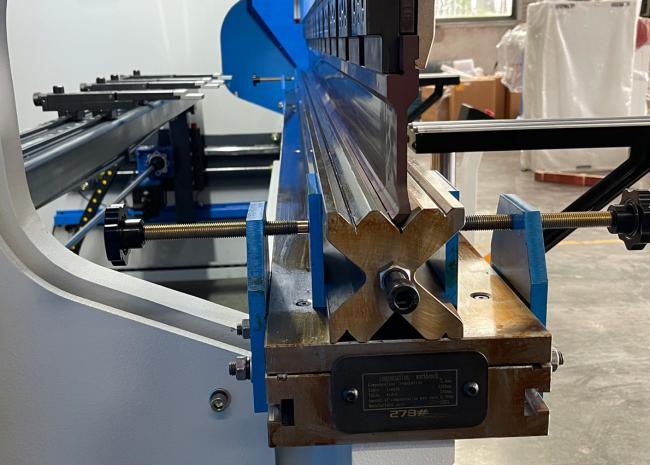

Details:
Support and Services:
Hydraulic CNC Press Brake technical support and service includes:
- Installation Support
- Operation Training
- Maintenance Training
- Troubleshooting Support
- Remote Diagnostics
- Spare Parts Support
- Software Upgrades
- Technical Documentation
Packing and Shipping:
Packaging and Shipping for Hydraulic CNC Press Brake:
- The machine will be packaged in a wooden box or a steel frame.
- The machine will be shipped by sea, air, or land.
- The machine will be shipped in accordance with the international shipping standards.
- The delivery time depends on the specific route and the availability of the transportation means.
FAQ:
- Q: What is the brand name of this Hydraulic CNC Press Brake?
- A: The brand name of this Hydraulic CNC Press Brake is AOXUANZG.
- Q: What is the model number of this Hydraulic CNC Press Brake?
- A: The model number of this Hydraulic CNC Press Brake is WE67K-250T3200MM.
- Q: Where is this Hydraulic CNC Press Brake made?
- A: This Hydraulic CNC Press Brake is made in China.
- Q: What certifications does this Hydraulic CNC Press Brake have?
- A: This Hydraulic CNC Press Brake is certified with CE and ISO.
- Q: What is the minimum order quantity for this Hydraulic CNC Press Brake?
- A: The minimum order quantity for this Hydraulic CNC Press Brake is 1.
- AOXUANZG's Hydraulic CNC Press Brake is the perfect choice for you. Contact us today to learn more!
