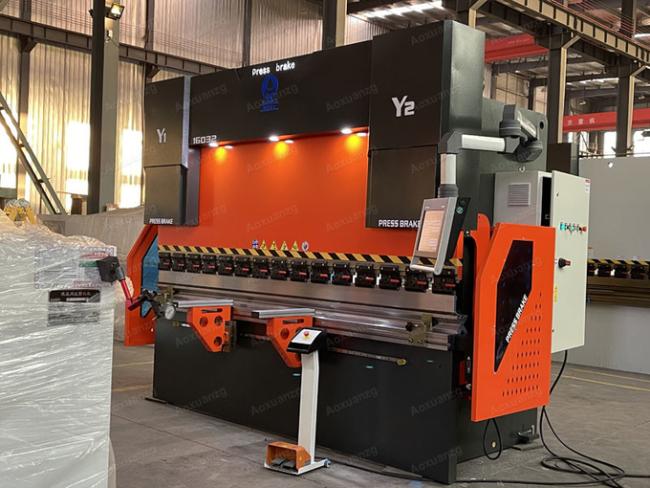

WE67K Delem DA58T 4+1 Axis CNC Metallugy Metal Progressing Bending Machine Hydraulic Press Brake
WE67K Delem DA58T 4+1 Axis CNC Metallugy Metal Progressing Bending Machine Hydraulic Press Brake
HYDRAULIC PRESS BRAKE
1. Adopt integrated hydraulic control system, more reliable and easy for maintenance. main hydraulic valves from Bosch (Germany)
2. All pipes, flange and joint with vibrations proof and leakage proof design and setting .
3. Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly.
4. The hydraulic system is made in compliance with current regulations.
ELECTRICAL SYSTEM
1. Electrical Cabinet under the international Standard, safe and reliable, strong anti interference capability.
2. Protective fence to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.
SYNCHRO CONTROL SYSTEM
1. Patented system for exact parallelism and a high repeat accuracy
2. The worktable adopts the particular design,reducing the crowning distortion amount of lower tool effectively.
3. Adopt steel torsion bar synchro system,simple in structure and high in accuracy,ensures the parallelism between beams is used for the synchronism.
![]()
RAM AND DIES
1. The equipped difference standard Dies according machine’s model, special non-standard mold is available under client's
requirement according to real workpiece situation.
2. Upper and buttom die can be sectioned according to customer’s requirement.
3. The Machine By CNC Controller or NC Control With the point of programming, can calculate thebending angle bending depth.
Optional Controller
The control panel you choose can have a real impact on your productivity. To ensure you get the most out of your Press Brake, the best decisions are always guided by your industry, your product and even the things you hope to undertake in the future. We have DA52S, DA53T, DA58T, DA66T, DA69T, S630, S640, Cybtouch8, Cybtouch12 and other cnc controller.
Details:
Brand Name: AOXUANZG
Model Number: WE67K-160T3200MM
Place of Origin: China
Certification: CE,ISO
Packaging Details: Plastic film package first, then placed in container with steel wire fixed.
Delivery Time: 30 DAYS
Type: CNC Press Brake
Adopting HIWIN ball screw and linear guide rail, accuracy 0.01mm
Front supporter bracket
Germany Bosch Rexroth hydraulic valve block
Germany EMB oil tube connector
Germany Siemens main motor
France Schneider electrics
Hydraulic & electrical overload protection
Automatic Mechanical compensation
Upper and lower dies(86°, R0.6mm, material: 42CrMo)
Technical parameter:
| Model | Pressure | Worktable length | Distance between columns | Depth of throat | Stroke | Max height between worktable and ram | Main motor | Weight |
Dimension (LxWxH) |
| Units | kn | mm | mm | mm | mm | mm | kw | mm | mm |
| WC67Y/K-40/2500 | 400 | 2500 | 1925 | 220 | 80 | 300 | 4 | 3000 | 2650x1100x1950 |
| WC67Y/K-50/2500 | 500 | 2500 | 2015 | 220 | 100 | 340 | 4 | 3750 | 2650x1250x2100 |
| WC67Y/K-63/2500 | 630 | 2500 | 2015 | 250 | 100 | 340 | 5.5 | 4300 | 2650x1300x2200 |
| WC67Y/K-80/2500 | 800 | 2500 | 2010 | 250 | 120 | 380 | 5.5 | 5200 | 2560x1350x2250 |
| WC67Y/K-80/3200 | 800 | 3200 | 2510 | 250 | 120 | 380 | 5.5 | 6000 | 3260x1350x2280 |
| WC67Y/K-100/2500 | 1000 | 2500 | 2050 | 320 | 150 | 420 | 7.5 | 6700 | 2550x1360x2270 |
| WC67Y/K-100/3200 | 1000 | 3200 | 2550 | 320 | 150 | 420 | 7.5 | 7200 | 3260x1365x2520 |
| WC67Y/K-100/4000 | 1000 | 4000 | 3050 | 320 | 150 | 420 | 7.5 | 8500 | 4060x1365x2720 |
| WC67Y/K-125/3200 | 1250 | 3200 | 2550 | 320 | 150 | 420 | 7.5 | 7800 | 3260x1465x2600 |
| WC67Y/K-125/4000 | 1250 | 4000 | 3050 | 320 | 150 | 420 | 7.5 | 9000 | 4060x1460x2800 |
| WC67Y/K-160/3200 | 1600 | 3200 | 2590 | 320 | 200 | 475 | 11 | 10500 | 3260x1580x2775 |
| WC67Y/K-160/4000 | 1600 | 4000 | 3040 | 320 | 200 | 475 | 11 | 12500 | 4060x1580x2925 |
| WC67Y/K-160/6000 | 1600 | 6000 | 4800 | 320 | 200 | 480 | 11 | 19500 | 6060x1580x3480 |
| WC67Y/K-200/3200 | 2000 | 3200 | 2580 | 320 | 200 | 475 | 18.5 | 13200 | 3260x1650x2800 |
| WC67Y/K-250/4000 | 2500 | 4000 | 3130 | 400 | 250 | 530 | 18.5 | 19000 | 4060x1840x3150 |
| WC67Y/K-250/5000 | 2500 | 5000 | 3930 | 400 | 250 | 530 | 18.5 | 24000 | 5060x1840x3450 |
| WC67Y/K-300/3200 | 3000 | 3200 | 2530 | 400 | 250 | 580 | 18.5 | 18000 | 3300x2100x2980 |
| WC67Y/K-300/4000 | 3000 | 4000 | 3200 | 400 | 250 | 580 | 18.5 | 22000 | 4060x2040x3330 |
| WC67Y/K-400/4000 | 4000 | 4000 | 3180 | 400 | 320 | 630 | 30 | 30000 | 4060x2220x3630 |
| WC67Y/K-400/6000 | 4000 | 6000 | 4700 | 400 | 320 | 630 | 30 | 45000 | 60602x2203x980 |
| WC67Y/K-500/6000 | 5000 | 6000 | 4600 | 500 | 320 | 70 | 30 | 55000 | 6080x2760x4000 |
| WC67Y/K-800/6000 | 8000 | 6000 | 4600 | 500 | 400 | 900 | 37 | 72000 | 6100x3250x4300 |
Packing:
1. Before packaged, the machines will be tested strictly to guarantee the stability and high accuracy.
2. After tested, the machines will be wrapped with plastic sheet ,
3,a,Small size : carefully packed in wooden cases ;
b,Big size: machine will be securely wired into the container by steel wire.
Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.
In-sales.
* We will provide you with the latest progress in the product assembly, packaging and transportation.
After-sale.
* We will provide free accessories for the damage to non - human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.
-
If you are interested, please contact me ^-^
![]()
