Hydraulic 40T Torsion Bar Press Brakes E21 System NC 1600MM With Guardrail
Price:
$5000-$18946/unit
MOQ:
1 set
Delivery Time:
20-30 days
Brand:
AOXUANZG
Product Description

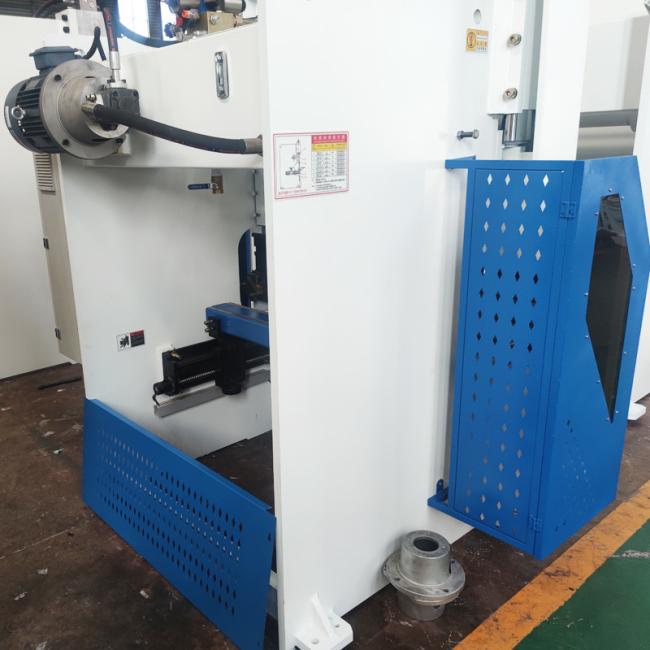

E21 System NC 40T 1600MM Small Hydraulic Torsion Bar Press Brakes With Guardrail
NC press brake uses the mold (general or special mold) to bend a cold metal sheet into a workpiece of various geometric cross-section shapes. It is a sheet metal forming machine designed for cold rolling sheet metal processing. It is widely used in sheet metal bending, such as automobile, aircraft manufacturing, light industry, shipbuilding, container, elevator, railway vehicles and other industries.
Technical Parameters:
| Model | Nominal pressure (KN) | Worktable Length (mm) | Columns Distance (mm) | Throat | Slider | Max | Main | Dimension |
| Depth | Stroke | Open | motor | L x W x H | ||||
| (mm) | (mm) | height | Power | (mm) | ||||
| (mm) | (KW) | |||||||
| WC67Y/K-30/1600 | 300 | 1600 | 1280 | 200 | 80 | 190 | 3 | 1700×900×1650 |
| WC67Y/K-30/2000 | 300 | 2000 | 1280 | 200 | 80 | 190 | 3 | 1700×900×1650 |
| WC67Y/K-40/2500 | 400 | 2500 | 1900 | 280 | 100 | 320 | 5.5 | 2600×1100×1900 |
| WC67Y/K-63/2500 | 630 | 2500 | 1900 | 350 | 170 | 380 | 5.5 | 3100×1450×2050 |
| WC67Y/K-80/3200 | 800 | 3200 | 2700 | 350 | 170 | 380 | 7.5 | 3500×1550×2100 |
| WC67Y/K-100/3200 | 1000 | 3200 | 2700 | 400 | 200 | 420 | 7.5 | 3500×1580×2400 |
| WC67Y/K-160/3200 | 1600 | 3200 | 2700 | 400 | 200 | 420 | 11 | 3500×1650×2550 |
| WC67Y/K-200/3200 | 2000 | 3200 | 2700 | 400 | 200 | 420 | 15 | 3500×1680×2550 |
| WC67Y/K-250/3200 | 2500 | 3200 | 2700 | 400 | 200 | 420 | 15 | 3500×1700×2600 |
| WC67Y/K-320/3200 | 3200 | 3200 | 2700 | 400 | 200 | 420 | 22 | 3500×1800×2730 |
| WC67Y/K-400/4000 | 4000 | 4000 | 3500 | 500 | 320 | 600 | 30 | 4300×2450×3500 |
| WC67Y/K-500/5000 | 5000 | 5000 | 3900 | 500 | 320 | 600 | 37 | 5400×2810×4300 |
| WC67Y/K-500/6000 | 5000 | 6000 | 4900 | 500 | 320 | 600 | 37 | 6500×2810×4300 |
| WC67Y/K-500/7000 | 5000 | 7000 | 4900 | 500 | 320 | 600 | 37 | 7500×2810×4900 |
| WC67Y/K-600/5000 | 6000 | 5000 | 3900 | 500 | 320 | 600 | 45 | 5500×2910×4900 |
| WC67Y/K-600/6000 | 6000 | 6000 | 4900 | 500 | 320 | 600 | 45 | 6500×2910×5100 |
| WC67Y/K-600/7000 | 6000 | 7000 | 5900 | 500 | 320 | 600 | 45 | 7500×2910×5200 |
| WC67Y/K-800/6000 | 8000 | 6000 | 4900 | 600 | 400 | 600 | 55 | 6500×2750 ×5300 |
| WC67Y/K-800/8000 | 8000 | 8000 | 6900 | 600 | 400 | 600 | 55 | 8500×2750×5900 |
| WC67Y/K-1000/6000 | 10000 | 6000 | 4900 | 600 | 400 | 600 | 2×37 | 6500×2800×5600 |
| WC67Y/K-1000/8000 | 10000 | 8000 | 6900 | 600 | 400 | 600 | 2×37 | 8500×2800×6100 |
| WC67Y/K-1000/10000 | 10000 | 10000 | 8000 | 600 | 400 | 600 | 2×37 | 10500×2800×5850 |
| WC67Y/K-1200/6000 | 12000 | 6000 | 4900 | 600 | 400 | 800 | 2×37 | 6500×3100×5850 |
| WC67Y/K-1200/8000 | 12000 | 8000 | 6900 | 600 | 400 | 800 | 2×37 | 8500×3100×7150 |
Safety Equipment:
Safety Standards(2006/42/EC)
1.EN 12622:2009+a1:2003
2.EN ISO 12100:20110
3.EN 60204-1:2006+A1:2009
Details:
Front Supportor
Front supporter with features of simple structurer, powerful functions ,can be adjusted up and down , or moved along the workbench in rightwards and leftwards
For more information, please contact me (^o^)/~
