3200MM NC Torsion Bar Press Brake Machine Delem DA41S Servo Motor 80T
Price:
$8000-$18946/unit
MOQ:
1 set
Delivery Time:
20-30 days
Brand:
AOXUANZG
Product Description

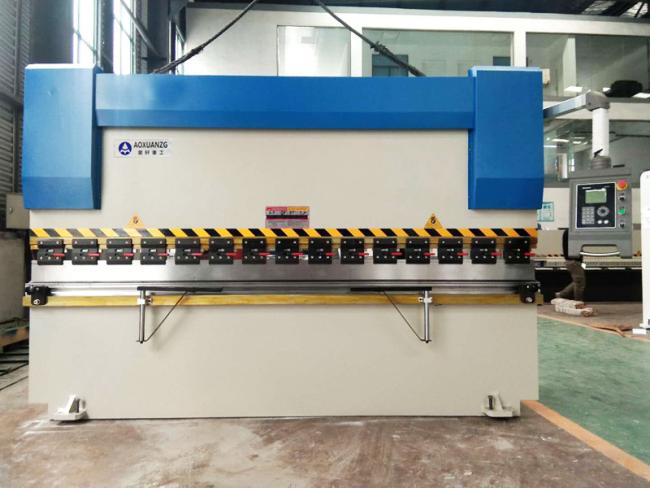

Delem DA41S Servo Motor 80T 3200MM CNC Hydraulic Press Brakes Machine
Press brake uses the mold (general or special mold) to bend a cold metal sheet into a workpiece of various geometric cross-section shapes. It is a sheet metal forming machine designed for cold rolling sheet metal processing. It is widely used in sheet metal bending, such as automobile, aircraft manufacturing, light industry, shipbuilding, container, elevator, railway vehicles and other industries.
Technical Parameters:
| Model | Nominal pressure (KN) | Worktable Length (mm) | Columns Distance (mm) | Throat | Slider | Max | Main | Dimension |
| Depth | Stroke | Open | motor | L x W x H | ||||
| (mm) | (mm) | height | Power | (mm) | ||||
| (mm) | (KW) | |||||||
| WC67Y/K-30/1600 | 300 | 1600 | 1280 | 200 | 80 | 190 | 3 | 1700×900×1650 |
| WC67Y/K-30/2000 | 300 | 2000 | 1280 | 200 | 80 | 190 | 3 | 1700×900×1650 |
| WC67Y/K-40/2500 | 400 | 2500 | 1900 | 280 | 100 | 320 | 5.5 | 2600×1100×1900 |
| WC67Y/K-63/2500 | 630 | 2500 | 1900 | 350 | 170 | 380 | 5.5 | 3100×1450×2050 |
| WC67Y/K-80/3200 | 800 | 3200 | 2700 | 350 | 170 | 380 | 7.5 | 3500×1550×2100 |
| WC67Y/K-100/3200 | 1000 | 3200 | 2700 | 400 | 200 | 420 | 7.5 | 3500×1580×2400 |
| WC67Y/K-160/3200 | 1600 | 3200 | 2700 | 400 | 200 | 420 | 11 | 3500×1650×2550 |
| WC67Y/K-200/3200 | 2000 | 3200 | 2700 | 400 | 200 | 420 | 15 | 3500×1680×2550 |
| WC67Y/K-250/3200 | 2500 | 3200 | 2700 | 400 | 200 | 420 | 15 | 3500×1700×2600 |
| WC67Y/K-320/3200 | 3200 | 3200 | 2700 | 400 | 200 | 420 | 22 | 3500×1800×2730 |
| WC67Y/K-400/4000 | 4000 | 4000 | 3500 | 500 | 320 | 600 | 30 | 4300×2450×3500 |
| WC67Y/K-500/5000 | 5000 | 5000 | 3900 | 500 | 320 | 600 | 37 | 5400×2810×4300 |
| WC67Y/K-500/6000 | 5000 | 6000 | 4900 | 500 | 320 | 600 | 37 | 6500×2810×4300 |
| WC67Y/K-500/7000 | 5000 | 7000 | 4900 | 500 | 320 | 600 | 37 | 7500×2810×4900 |
| WC67Y/K-600/5000 | 6000 | 5000 | 3900 | 500 | 320 | 600 | 45 | 5500×2910×4900 |
| WC67Y/K-600/6000 | 6000 | 6000 | 4900 | 500 | 320 | 600 | 45 | 6500×2910×5100 |
| WC67Y/K-600/7000 | 6000 | 7000 | 5900 | 500 | 320 | 600 | 45 | 7500×2910×5200 |
| WC67Y/K-800/6000 | 8000 | 6000 | 4900 | 600 | 400 | 600 | 55 | 6500×2750 ×5300 |
| WC67Y/K-800/8000 | 8000 | 8000 | 6900 | 600 | 400 | 600 | 55 | 8500×2750×5900 |
| WC67Y/K-1000/6000 | 10000 | 6000 | 4900 | 600 | 400 | 600 | 2×37 | 6500×2800×5600 |
| WC67Y/K-1000/8000 | 10000 | 8000 | 6900 | 600 | 400 | 600 | 2×37 | 8500×2800×6100 |
| WC67Y/K-1000/10000 | 10000 | 10000 | 8000 | 600 | 400 | 600 | 2×37 | 10500×2800×5850 |
| WC67Y/K-1200/6000 | 12000 | 6000 | 4900 | 600 | 400 | 800 | 2×37 | 6500×3100×5850 |
| WC67Y/K-1200/8000 | 12000 | 8000 | 6900 | 600 | 400 | 800 | 2×37 | 8500×3100×7150 |

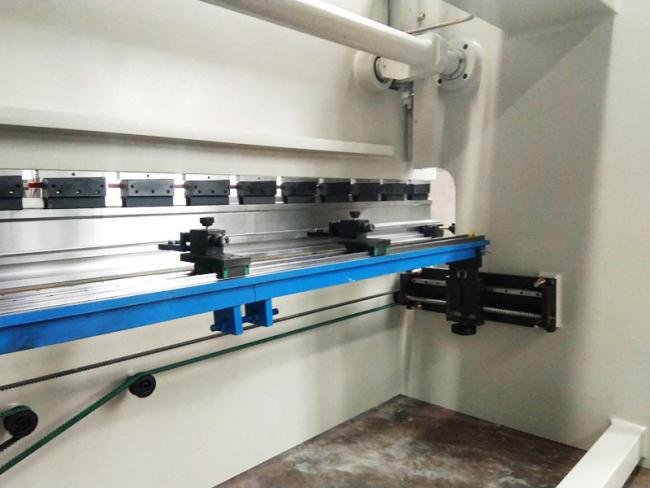

Details:
Our Service:
Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.
In-sales.
* We will provide you with the latest progress in the product assembly, packaging and transportation.
After-sale.
* We will provide free accessories for the damage to non - human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.
For more information, please contact me (^o^)/~
