China Cybtouch 12 Hydraulic CNC Press Brake Machine Bender 7.5 Kw 1250KN for sale

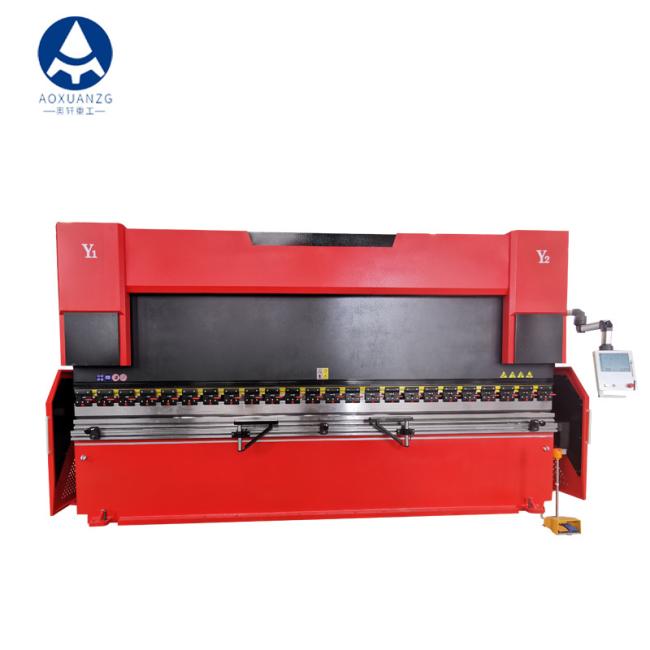

Cybtouch 12 Hydraulic CNC Press Brake Machine Bender 7.5 Kw 1250KN

Price Negotiable

Price: Negotiable

MOQ: 1 set

Delivery Time: 20-30 days

Brand: AOXUANZG

Product Description

Factory Price Fast Cybtouch 12 Controller Press Brake Machine / Folded Bender

ELECTRO-HYDRAULIC SYNCHRONOUS CNC PRESS BRAKE
CNC series of press brakes has been designed and crafted with an ethos of heavy duty quality. The range also features the multi-axis CNC controller, delivering the ability to handle complex, multi-bend operations quickly and easily. Touch screen control is quick and easy thanks to the user-friendly interface. There is also the option of preparing the production off line on a PC with the software provided, enabling feasibility checks prior to production

Technical Parameters:

Model	Nominal pressure (KN)	Worktable Length (mm)	Columns Distance (mm)	Throat	Slider	Max	Main	Dimension
				Depth	Stroke	Open	motor	L x W x H
				(mm)	(mm)	height	Power	(mm)
						(mm)	(KW)
WC67Y/K-30/1600	300	1600	1280	200	80	190	3	1700×900×1650
WC67Y/K-30/2000	300	2000	1280	200	80	190	3	1700×900×1650
WC67Y/K-40/2500	400	2500	1900	280	100	320	5.5	2600×1100×1900
WC67Y/K-63/2500	630	2500	1900	350	170	380	5.5	3100×1450×2050
WC67Y/K-80/3200	800	3200	2700	350	170	380	7.5	3500×1550×2100
WC67Y/K-100/3200	1000	3200	2700	400	200	420	7.5	3500×1580×2400
WC67Y/K-160/3200	1600	3200	2700	400	200	420	11	3500×1650×2550
WC67Y/K-200/3200	2000	3200	2700	400	200	420	15	3500×1680×2550
WC67Y/K-250/3200	2500	3200	2700	400	200	420	15	3500×1700×2600
WC67Y/K-320/3200	3200	3200	2700	400	200	420	22	3500×1800×2730
WC67Y/K-400/4000	4000	4000	3500	500	320	600	30	4300×2450×3500
WC67Y/K-500/5000	5000	5000	3900	500	320	600	37	5400×2810×4300
WC67Y/K-500/6000	5000	6000	4900	500	320	600	37	6500×2810×4300
WC67Y/K-500/7000	5000	7000	4900	500	320	600	37	7500×2810×4900
WC67Y/K-600/5000	6000	5000	3900	500	320	600	45	5500×2910×4900
WC67Y/K-600/6000	6000	6000	4900	500	320	600	45	6500×2910×5100
WC67Y/K-600/7000	6000	7000	5900	500	320	600	45	7500×2910×5200
WC67Y/K-800/6000	8000	6000	4900	600	400	600	55	6500×2750 ×5300
WC67Y/K-800/8000	8000	8000	6900	600	400	600	55	8500×2750×5900
WC67Y/K-1000/6000	10000	6000	4900	600	400	600	2×37	6500×2800×5600
WC67Y/K-1000/8000	10000	8000	6900	600	400	600	2×37	8500×2800×6100
WC67Y/K-1000/10000	10000	10000	8000	600	400	600	2×37	10500×2800×5850
WC67Y/K-1200/6000	12000	6000	4900	600	400	800	2×37	6500×3100×5850
WC67Y/K-1200/8000	12000	8000	6900	600	400	800	2×37	8500×3100×7150

Main configuration list
1	NC Control system	E21 E300 DA41 DA53S DA56S DA66T DA69T TP10S
2	Electrical components	Schneider Electrical from French
3	Main Motor	Siemens from Germany Brand
4	BackGauge & RAM Drive	Inverter from Taiwan delta
5	Travel switch	Schneider Electrical from French
6	Foot switch	KACON from South Korea
7	Hydraulic System	Bosch-Rexroth form Germany
8	Hydraulic Pump	SUUNY or SAEMP form Taiwan
9	Sealing Element	PARKER from U.S.A Brand
10	Tubing connector	EMB form Germany Brand
11	Ball screw/ Polished rod	HIWIN from TaiWan Brand

Details:

Hydraulic System
Brand: Rexroth Germany
Original: Germany
Press brake Hydraulic system original from Rexroth Germany, which can make sure our bending machine in high quality.

Gear PUMP
Brand: Sunny USA
Original: USA
Press brake Gear Pump original from Sunny USA. All our bending machine components use world famous brand.

Packing Detail:
1. Our wooden case is after fumigation treatment. Needn't timber inspection, saving shipping time.
2. All the spare parts of themachine were covered by the some soft materials mainly using pearl wool.
3. The outmost is wooden case with fixed formwork.
4. The bottom of the wooden case has firm iron jack, convenient to handing and transport.

For more information, please contact me (^o^)/~
