1300kn 7.5kw Hydraulic CNC Press Brake Custom Bending Machine Delem DA58T 4 + 1 Axis
Price:
Negotiable
MOQ:
1 set
Delivery Time:
20-30 days
Brand:
AOXUANZG
Product Description
Customize Voltage Delem DA58T CNC Hydraulic Press Brake With 4 + 1 Axis
PBCNC ELECTRO-HYDRAULIC SYNCHRONOUS CNC PRESS BRAKE
CNC series of press brakes has been designed and crafted with an ethos of heavy duty quality. The range also features the multi-axis CNC controller, delivering the ability to handle complex, multi-bend operations quickly and easily. Touch screen control is quick and easy thanks to the user-friendly interface. There is also the option of preparing the production off line on a PC with the software provided, enabling feasibility checks prior to production
CNC series of press brakes has been designed and crafted with an ethos of heavy duty quality. The range also features the multi-axis CNC controller, delivering the ability to handle complex, multi-bend operations quickly and easily. Touch screen control is quick and easy thanks to the user-friendly interface. There is also the option of preparing the production off line on a PC with the software provided, enabling feasibility checks prior to production
Technical Parameters:
| Model | Norminal pressure (KN) | Worktable Length (mm) | Columns Distance (mm) | Throat Depth (mm) | Slider Stroke(mm) | Max Open hight (mm) | Main motor power(KW) | Crowing Cylinders | Control Axes | X axis stroke(mm) | X axis speed(mm/s) | Dimension LxWxH (mm) |
| WC67Y/K-63/2500 | 630 | 2500 | 1900 | 350 | 170 | 380 | 5.5 | 2 | 3+1 | 500 | 200 | 3100×1450×2050 |
| WC67Y/K-80/3200 | 800 | 3200 | 2700 | 350 | 170 | 380 | 7.5 | 3 | 3+1 | 500 | 200 | 3500×1550×2100 |
| WC67Y/K-100/3200 | 1000 | 3200 | 2700 | 400 | 200 | 420 | 7.5 | 3 | 3+1 | 500 | 200 | 3500×1580×2400 |
| WC67Y/K-160/3200 | 1600 | 3200 | 2700 | 400 | 200 | 420 | 11 | 3 | 3+1 | 500 | 200 | 3500×1650×2550 |
| WC67Y/K-200/3200 | 2000 | 3200 | 2700 | 400 | 200 | 420 | 15 | 3 | 3+1 | 500 | 200 | 3500×1680×2550 |
| WC67Y/K-250/3200 | 2500 | 3200 | 2700 | 400 | 200 | 420 | 15 | 3 | 3+1 | 500 | 200 | 3500×1700×2600 |
| WC67Y/K-320/3200 | 3200 | 3200 | 2700 | 400 | 200 | 420 | 22 | 3 | 3+1 | 500 | 200 | 3500×1800×2730 |
| WC67Y/K-400/4000 | 4000 | 4000 | 3500 | 500 | 320 | 600 | 30 | 4 | 3+1 | 500 | 200 | 4300×2450×3500 |
| WC67Y/K-500/5000 | 5000 | 5000 | 3900 | 500 | 320 | 600 | 37 | / | 3+1 | 800 | 200 | 5400×2810×4300 |
| WC67Y/K-500/6000 | 5000 | 6000 | 4900 | 500 | 320 | 600 | 37 | / | 3+1 | 800 | 200 | 6500×2810×4300 |
| WC67Y/K-500/7000 | 5000 | 7000 | 4900 | 500 | 320 | 600 | 37 | / | 3+1 | 800 | 200 | 7500×2810×4900 |
| WC67Y/K-600/5000 | 6000 | 5000 | 3900 | 500 | 320 | 600 | 45 | / | 3+1 | 800 | 200 | 5500×2910×4900 |
| WC67Y/K-600/6000 | 6000 | 6000 | 4900 | 500 | 320 | 600 | 45 | / | 3+1 | 800 | 200 | 6500×2910×5100 |
| WC67Y/K-600/7000 | 6000 | 7000 | 5900 | 500 | 320 | 600 | 45 | / | 3+1 | 800 | 200 | 7500×2910×5200 |
| WC67Y/K-800/6000 | 8000 | 6000 | 4900 | 600 | 400 | 600 | 55 | / | 3+1 | 800 | 200 | 6500×2750 ×5300 |
| WC67Y/K-800/8000 | 8000 | 8000 | 6900 | 600 | 400 | 600 | 55 | / | 3+1 | 800 | 200 | 8500×2750×5900 |
| WC67Y/K-1000/6000 | 10000 | 6000 | 4900 | 600 | 400 | 600 | 2×37 | / | 3+1 | 800 | 200 | 6500×2800×5600 |
| WC67Y/K-1000/8000 | 10000 | 8000 | 6900 | 600 | 400 | 600 | 2×37 | / | 3+1 | 800 | 200 | 8500×2800×6100 |
| WC67Y/K-1000/10000 | 10000 | 10000 | 8000 | 600 | 400 | 600 | 2×37 | / | 3+1 | 800 | 200 | 10500×2800×5850 |
| WC67Y/K-1200/6000 | 12000 | 6000 | 4900 | 600 | 400 | 800 | 2×37 | / | 3+1 | 1000 | 200 | 6500×3100×5850 |
| WC67Y/K-1200/8000 | 12000 | 8000 | 6900 | 600 | 400 | 800 | 2×37 | / | 3+1 | 1000 | 200 | 8500×3100×7150 |
All the components are from world Famous Brand:
1) Hydraulic System: Bosch-Rexroth from Germany
2) Hydraulic PUMP: Sunny USA
3) Electrical Components: Schneider Electrical from France
4) Main Motor: Siemens from Germany
5) Ball screw/ Liner guide: HIWIN from Taiwan
6)Seal/Guide Ring: VALQUA-JAPAN
Details:

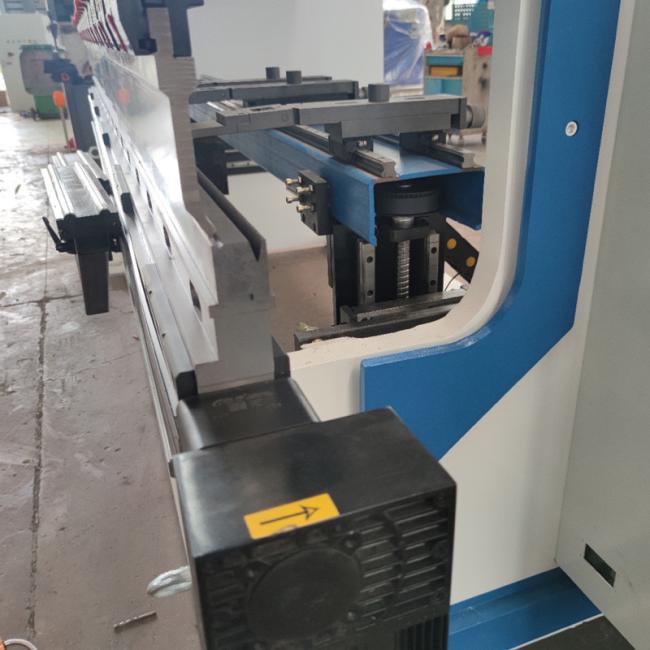

Standard Upper tools and Down die
Brand: Aoxuanzg
Press brake Upper Bending tooling adopts segmented tooling. we can sperate the whole length into pieces according to your request.

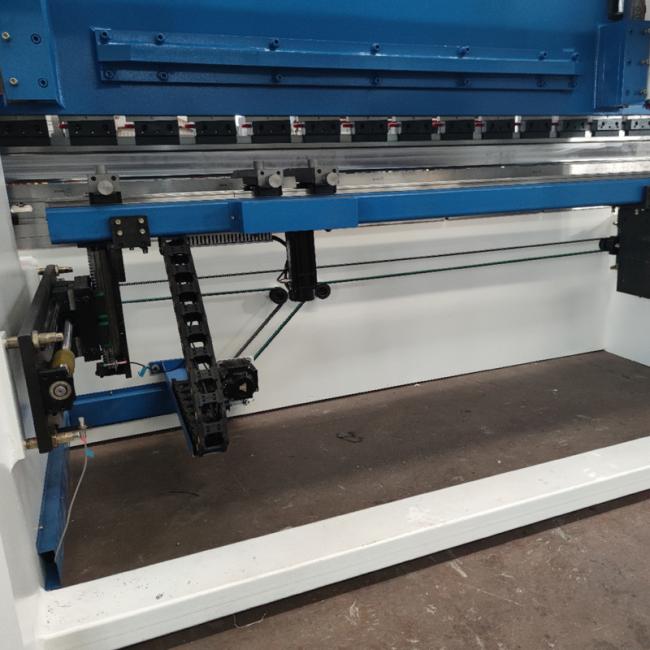

Backgauge
4+1 Axis CNC Backgauge ,including the (Y1 , Y2 ,X,R + crowing )
the fine adjustment with high accuracy up to ± 0.02mm
For more information, please contact me (^o^)/~
