6times/Min Servo Electric Press Brake 11kw , Delem DA53T CNC Hydraulic Bending Machine
Price:
Negotiable
MOQ:
1 set
Delivery Time:
20-30 days
Brand:
AOXUANZG
Product Description

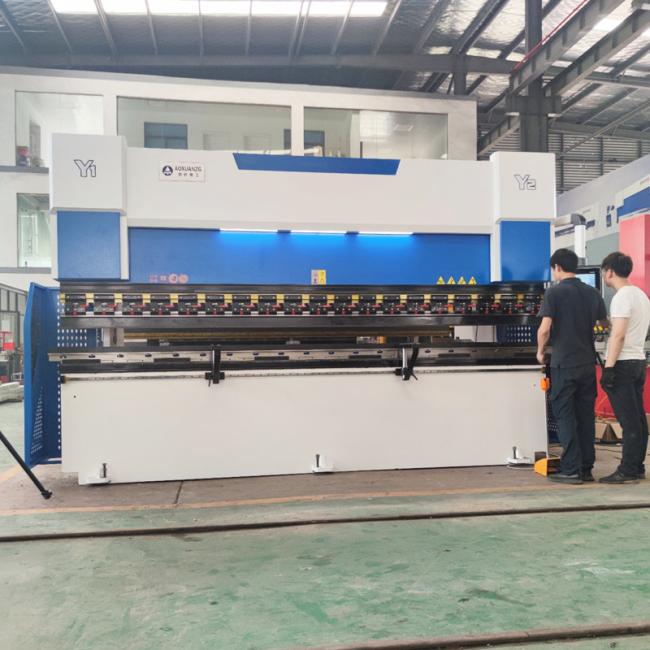

Famous Brand Delem DA53T Servo Control CNC Electro - Hydraulic Bending Machine
CNC press brake uses the mold (general or special mold) to bend a cold metal sheet into a workpiece of various geometric cross-section shapes. It is a sheet metal forming machine designed for cold rolling sheet metal processing. It is widely used in sheet metal bending, such as automobile, aircraft manufacturing, light industry, shipbuilding, container, elevator, railway vehicles and other industries.
Technical Parameters:
| Model | Norminal pressure (KN) | Worktable Length (mm) | Columns Distance (mm) | Throat Depth (mm) | Slider Stroke(mm) | Max Open hight (mm) | Main motor power(KW) | Crowing Cylinders | Control Axes | X axis stroke(mm) | X axis speed(mm/s) | Dimension LxWxH (mm) |
| WC67Y/K-63/2500 | 630 | 2500 | 1900 | 350 | 170 | 380 | 5.5 | 2 | 3+1 | 500 | 200 | 3100×1450×2050 |
| WC67Y/K-80/3200 | 800 | 3200 | 2700 | 350 | 170 | 380 | 7.5 | 3 | 3+1 | 500 | 200 | 3500×1550×2100 |
| WC67Y/K-100/3200 | 1000 | 3200 | 2700 | 400 | 200 | 420 | 7.5 | 3 | 3+1 | 500 | 200 | 3500×1580×2400 |
| WC67Y/K-160/3200 | 1600 | 3200 | 2700 | 400 | 200 | 420 | 11 | 3 | 3+1 | 500 | 200 | 3500×1650×2550 |
| WC67Y/K-200/3200 | 2000 | 3200 | 2700 | 400 | 200 | 420 | 15 | 3 | 3+1 | 500 | 200 | 3500×1680×2550 |
| WC67Y/K-250/3200 | 2500 | 3200 | 2700 | 400 | 200 | 420 | 15 | 3 | 3+1 | 500 | 200 | 3500×1700×2600 |
| WC67Y/K-320/3200 | 3200 | 3200 | 2700 | 400 | 200 | 420 | 22 | 3 | 3+1 | 500 | 200 | 3500×1800×2730 |
| WC67Y/K-400/4000 | 4000 | 4000 | 3500 | 500 | 320 | 600 | 30 | 4 | 3+1 | 500 | 200 | 4300×2450×3500 |
| WC67Y/K-500/5000 | 5000 | 5000 | 3900 | 500 | 320 | 600 | 37 | / | 3+1 | 800 | 200 | 5400×2810×4300 |
| WC67Y/K-500/6000 | 5000 | 6000 | 4900 | 500 | 320 | 600 | 37 | / | 3+1 | 800 | 200 | 6500×2810×4300 |
| WC67Y/K-500/7000 | 5000 | 7000 | 4900 | 500 | 320 | 600 | 37 | / | 3+1 | 800 | 200 | 7500×2810×4900 |
| WC67Y/K-600/5000 | 6000 | 5000 | 3900 | 500 | 320 | 600 | 45 | / | 3+1 | 800 | 200 | 5500×2910×4900 |
| WC67Y/K-600/6000 | 6000 | 6000 | 4900 | 500 | 320 | 600 | 45 | / | 3+1 | 800 | 200 | 6500×2910×5100 |
| WC67Y/K-600/7000 | 6000 | 7000 | 5900 | 500 | 320 | 600 | 45 | / | 3+1 | 800 | 200 | 7500×2910×5200 |
| WC67Y/K-800/6000 | 8000 | 6000 | 4900 | 600 | 400 | 600 | 55 | / | 3+1 | 800 | 200 | 6500×2750 ×5300 |
| WC67Y/K-800/8000 | 8000 | 8000 | 6900 | 600 | 400 | 600 | 55 | / | 3+1 | 800 | 200 | 8500×2750×5900 |
| WC67Y/K-1000/6000 | 10000 | 6000 | 4900 | 600 | 400 | 600 | 2×37 | / | 3+1 | 800 | 200 | 6500×2800×5600 |
| WC67Y/K-1000/8000 | 10000 | 8000 | 6900 | 600 | 400 | 600 | 2×37 | / | 3+1 | 800 | 200 | 8500×2800×6100 |
| WC67Y/K-1000/10000 | 10000 | 10000 | 8000 | 600 | 400 | 600 | 2×37 | / | 3+1 | 800 | 200 | 10500×2800×5850 |
| WC67Y/K-1200/6000 | 12000 | 6000 | 4900 | 600 | 400 | 800 | 2×37 | / | 3+1 | 1000 | 200 | 6500×3100×5850 |
| WC67Y/K-1200/8000 | 12000 | 8000 | 6900 | 600 | 400 | 800 | 2×37 | / | 3+1 | 1000 | 200 | 8500×3100×7150 |
Details:
Spain FAGOR Grating Ruler
Slider position signal is feedbacked to controller by spain FAGOR Grating ruler, then the CNC Controller adjusts the amount of fuel tank by changing the synchronous valve opening size, hereby controlling the slider ( Y1,Y2) running on the same frenquency ,maintaining the parallel state of the worktable
Motor
Brand: Siemens Germany
Original: Germany
All press brake motor original from Siemens Germany. Our bending machine warranty is 2 years.
Brand: Siemens Germany
Original: Germany
All press brake motor original from Siemens Germany. Our bending machine warranty is 2 years.

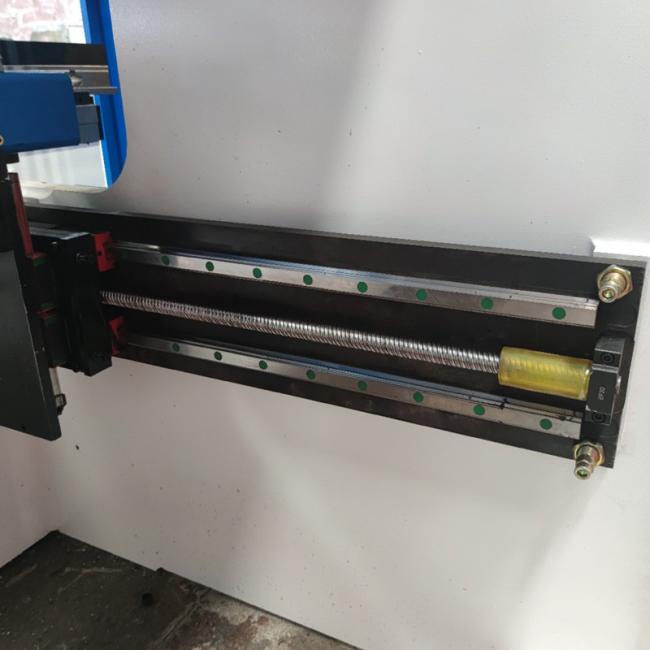

Ball Screw and Linear Guide
Using Taiwan HIWIN Ball Screw and linear guider to improve the machine backgauge accurancy.
For more information, please contact me (^o^)/~
