China High Precision TP10S 80T 3200MM Metal Hydraulic Press Brakes Machine For Iron Box for sale

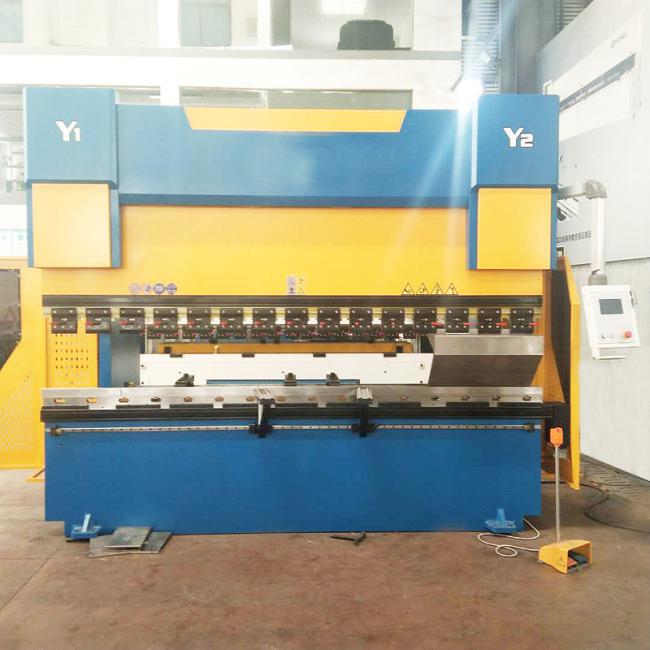

High Precision TP10S 80T 3200MM Metal Hydraulic Press Brakes Machine For Iron Box

Price Negotiable

Price: Negotiable

MOQ: 1 set

Delivery Time: 20-30 days

Brand: AOXUANZG

Product Description

High Precision Custom Mold TP10S 80T 3200MM Hydraulic Press Brakes Machine For Iron Box

NC Press brake series of Hydraulic Press Brake are affordable and versatile with many features normally found on more ranges. They are the ideal choice for tasks such as box folding, tread plates and heavy duty usage, bringing adaptability and versatility without the hefty price tag.

Technical Parameters:

Model	Nominal pressure (KN)	Worktable Length (mm)	Columns Distance (mm)	Throat	Slider	Max	Main	Dimension
				Depth	Stroke	Open	motor	L x W x H
				(mm)	(mm)	height	Power	(mm)
						(mm)	(KW)
WC67Y/K-30/1600	300	1600	1280	200	80	190	3	1700×900×1650
WC67Y/K-30/2000	300	2000	1280	200	80	190	3	1700×900×1650
WC67Y/K-40/2500	400	2500	1900	280	100	320	5.5	2600×1100×1900
WC67Y/K-63/2500	630	2500	1900	350	170	380	5.5	3100×1450×2050
WC67Y/K-80/3200	800	3200	2700	350	170	380	7.5	3500×1550×2100
WC67Y/K-100/3200	1000	3200	2700	400	200	420	7.5	3500×1580×2400
WC67Y/K-160/3200	1600	3200	2700	400	200	420	11	3500×1650×2550
WC67Y/K-200/3200	2000	3200	2700	400	200	420	15	3500×1680×2550
WC67Y/K-250/3200	2500	3200	2700	400	200	420	15	3500×1700×2600
WC67Y/K-320/3200	3200	3200	2700	400	200	420	22	3500×1800×2730
WC67Y/K-400/4000	4000	4000	3500	500	320	600	30	4300×2450×3500
WC67Y/K-500/5000	5000	5000	3900	500	320	600	37	5400×2810×4300
WC67Y/K-500/6000	5000	6000	4900	500	320	600	37	6500×2810×4300
WC67Y/K-500/7000	5000	7000	4900	500	320	600	37	7500×2810×4900
WC67Y/K-600/5000	6000	5000	3900	500	320	600	45	5500×2910×4900
WC67Y/K-600/6000	6000	6000	4900	500	320	600	45	6500×2910×5100
WC67Y/K-600/7000	6000	7000	5900	500	320	600	45	7500×2910×5200
WC67Y/K-800/6000	8000	6000	4900	600	400	600	55	6500×2750 ×5300
WC67Y/K-800/8000	8000	8000	6900	600	400	600	55	8500×2750×5900
WC67Y/K-1000/6000	10000	6000	4900	600	400	600	2×37	6500×2800×5600
WC67Y/K-1000/8000	10000	8000	6900	600	400	600	2×37	8500×2800×6100
WC67Y/K-1000/10000	10000	10000	8000	600	400	600	2×37	10500×2800×5850
WC67Y/K-1200/6000	12000	6000	4900	600	400	800	2×37	6500×3100×5850
WC67Y/K-1200/8000	12000	8000	6900	600	400	800	2×37	8500×3100×7150

Details:

TP10S CNC Controller
1. 10inch TFT 256K color touch screen
2. The standard Y X axis servo motor
3. Support angle programming, system automatically calculate depth
4. Slider (Y axis) position control, position control of rear stopper (X axis)
5. 220 programs, each program 24 steps
6. Mataching support X2, R1, R2, Z1, Z2

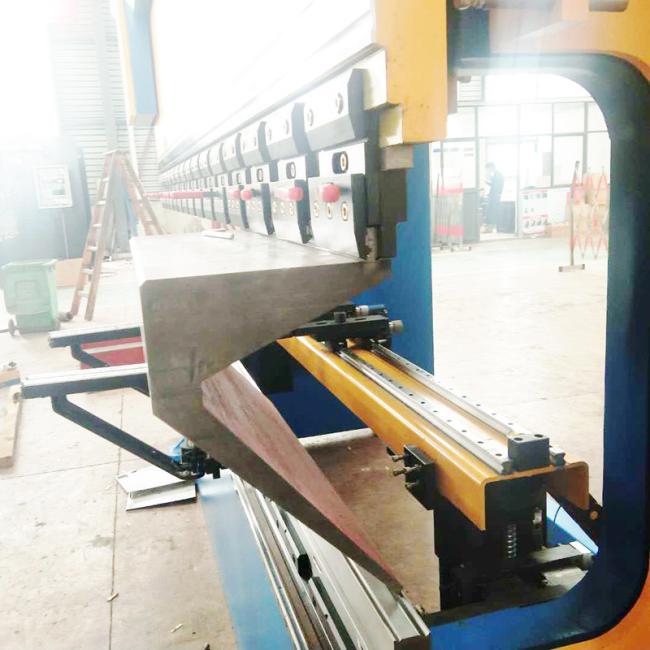

Press Brake Tooling-- Custom Tooling

Press Brake toolings are made from 40CrMo Materials with destiny up to 52 degrees to ensure die service life, This style is specially customized according to customer's requirements.

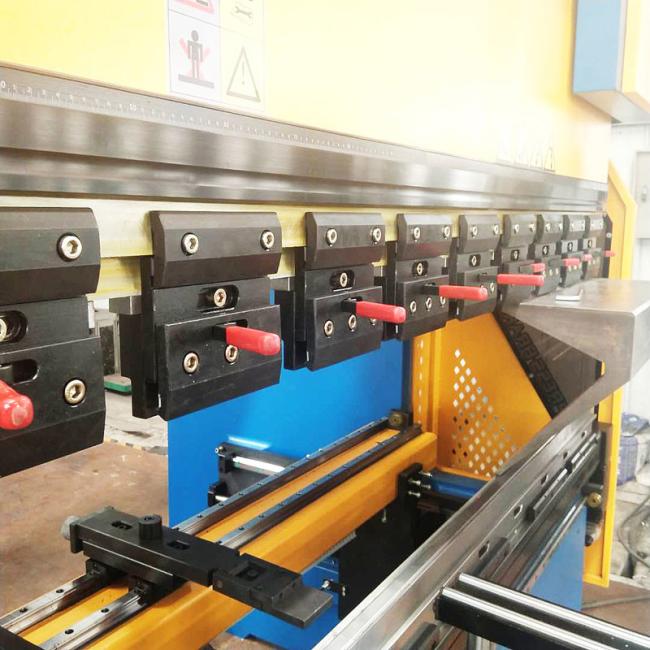

Fast Clampings

Standard double V lower die with different size and various shaped slots for choice ,convenient for exchanging dies,capable for bending regular plates, with high cost performance CNC double-V die workbench,convenient for installation of segmented dies

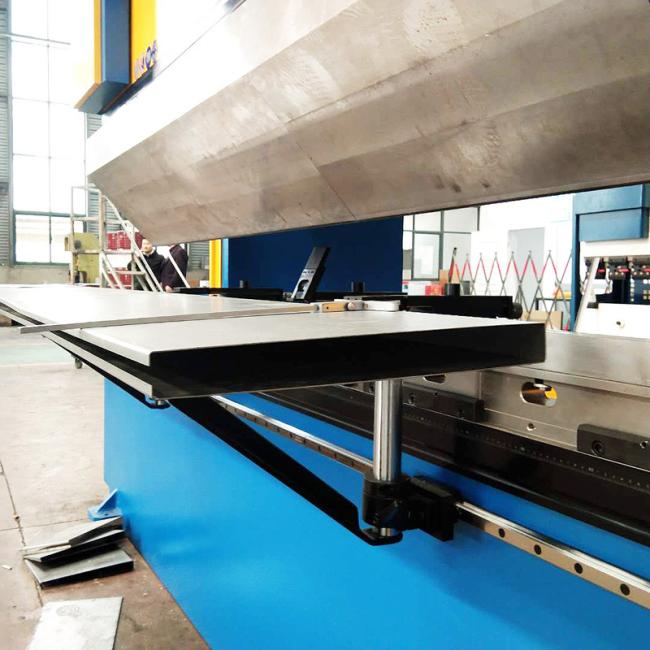

Front Supportor
Front supporter with features of simple structurer, powerful functions ,can be adjusted up and down , or moved along the workbench in rightwards and leftwards

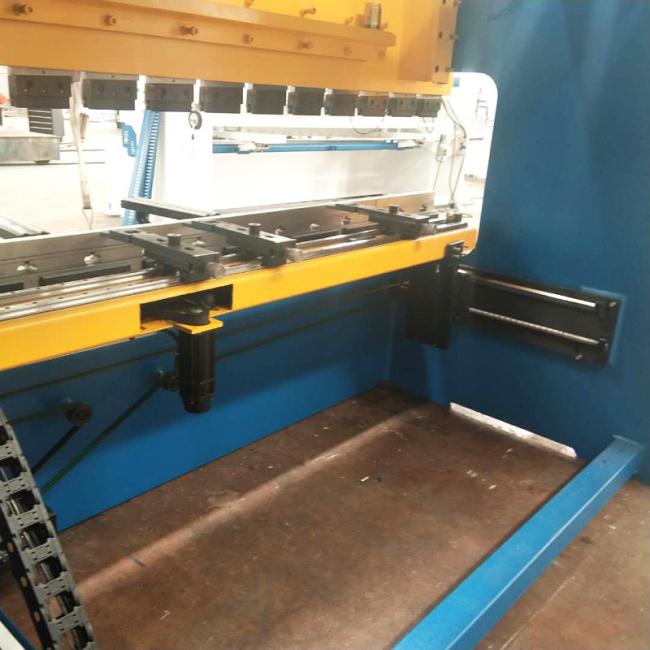

Ball Screw and Linear Guide

Using Taiwan HIWIN Ball Screw and linear guider to improve the machine backgauge accurancy.

2+1 Axis Electric control

For more information, please contact me (^o^)/~
