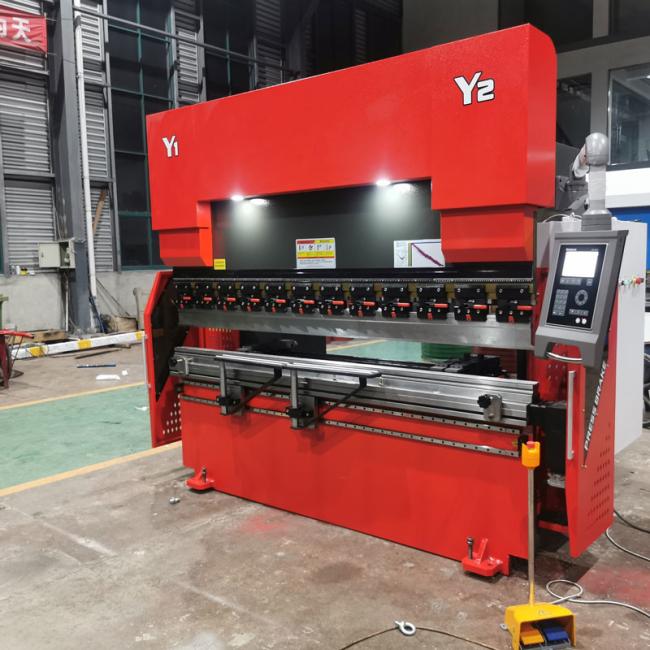

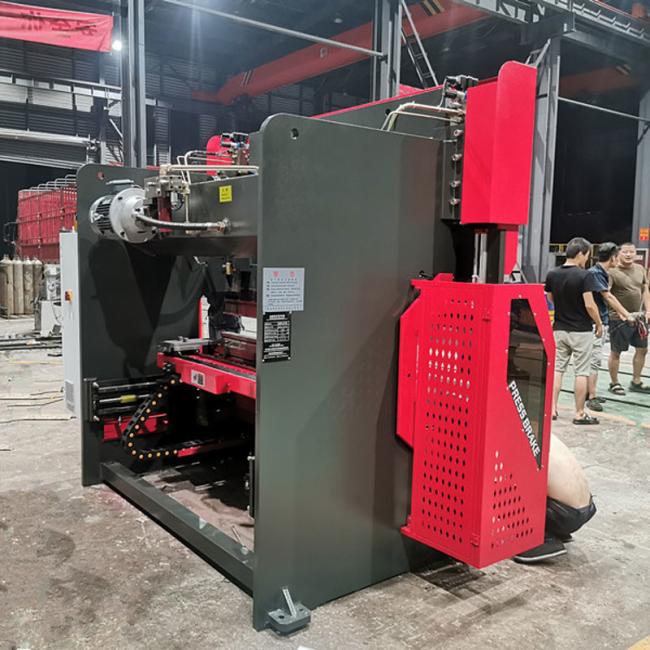

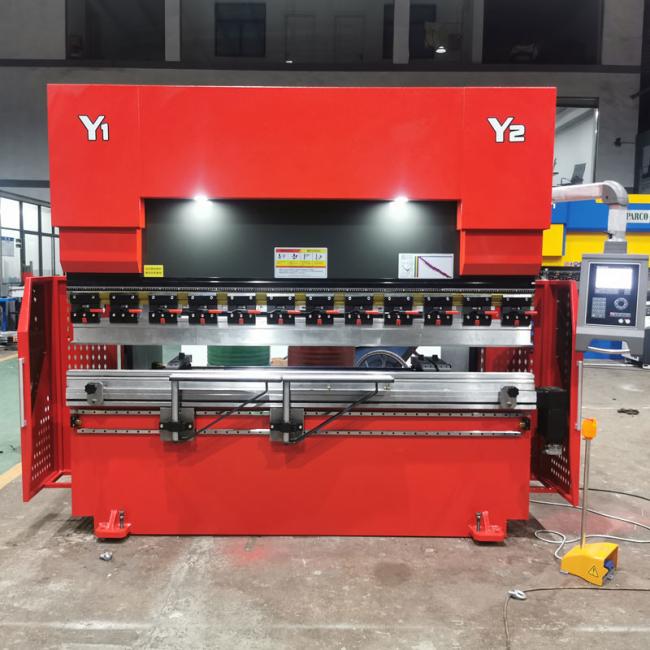

Electric Hydraulic Press Brake 100 Ton Metal Steel Bending Machine Manual Delem DA52S
CNC series of press brakes has been designed and crafted with an ethos of heavy duty quality. The range also features the multi-axis CNC controller, delivering the ability to handle complex, multi-bend operations quickly and easily. Touch screen control is quick and easy thanks to the user-friendly interface. There is also the option of preparing the production off line on a PC with the software provided, enabling feasibility checks prior to production
Technical Parameters:
| Model | Norminal pressure (KN) | Worktable Length (mm) | Columns Distance (mm) | Throat Depth (mm) | Slider Stroke(mm) | Max Open hight (mm) | Main motor power(KW) | Crowing Cylinders | Control Axes | X axis stroke(mm) | X axis speed(mm/s) | Dimension LxWxH (mm) |
| WC67Y/K-63/2500 | 630 | 2500 | 1900 | 350 | 170 | 380 | 5.5 | 2 | 3+1 | 500 | 200 | 3100×1450×2050 |
| WC67Y/K-80/3200 | 800 | 3200 | 2700 | 350 | 170 | 380 | 7.5 | 3 | 3+1 | 500 | 200 | 3500×1550×2100 |
| WC67Y/K-100/3200 | 1000 | 3200 | 2700 | 400 | 200 | 420 | 7.5 | 3 | 3+1 | 500 | 200 | 3500×1580×2400 |
| WC67Y/K-160/3200 | 1600 | 3200 | 2700 | 400 | 200 | 420 | 11 | 3 | 3+1 | 500 | 200 | 3500×1650×2550 |
| WC67Y/K-200/3200 | 2000 | 3200 | 2700 | 400 | 200 | 420 | 15 | 3 | 3+1 | 500 | 200 | 3500×1680×2550 |
| WC67Y/K-250/3200 | 2500 | 3200 | 2700 | 400 | 200 | 420 | 15 | 3 | 3+1 | 500 | 200 | 3500×1700×2600 |
| WC67Y/K-320/3200 | 3200 | 3200 | 2700 | 400 | 200 | 420 | 22 | 3 | 3+1 | 500 | 200 | 3500×1800×2730 |
| WC67Y/K-400/4000 | 4000 | 4000 | 3500 | 500 | 320 | 600 | 30 | 4 | 3+1 | 500 | 200 | 4300×2450×3500 |
| WC67Y/K-500/5000 | 5000 | 5000 | 3900 | 500 | 320 | 600 | 37 | / | 3+1 | 800 | 200 | 5400×2810×4300 |
| WC67Y/K-500/6000 | 5000 | 6000 | 4900 | 500 | 320 | 600 | 37 | / | 3+1 | 800 | 200 | 6500×2810×4300 |
| WC67Y/K-500/7000 | 5000 | 7000 | 4900 | 500 | 320 | 600 | 37 | / | 3+1 | 800 | 200 | 7500×2810×4900 |
| WC67Y/K-600/5000 | 6000 | 5000 | 3900 | 500 | 320 | 600 | 45 | / | 3+1 | 800 | 200 | 5500×2910×4900 |
| WC67Y/K-600/6000 | 6000 | 6000 | 4900 | 500 | 320 | 600 | 45 | / | 3+1 | 800 | 200 | 6500×2910×5100 |
| WC67Y/K-600/7000 | 6000 | 7000 | 5900 | 500 | 320 | 600 | 45 | / | 3+1 | 800 | 200 | 7500×2910×5200 |
| WC67Y/K-800/6000 | 8000 | 6000 | 4900 | 600 | 400 | 600 | 55 | / | 3+1 | 800 | 200 | 6500×2750 ×5300 |
| WC67Y/K-800/8000 | 8000 | 8000 | 6900 | 600 | 400 | 600 | 55 | / | 3+1 | 800 | 200 | 8500×2750×5900 |
| WC67Y/K-1000/6000 | 10000 | 6000 | 4900 | 600 | 400 | 600 | 2×37 | / | 3+1 | 800 | 200 | 6500×2800×5600 |
| WC67Y/K-1000/8000 | 10000 | 8000 | 6900 | 600 | 400 | 600 | 2×37 | / | 3+1 | 800 | 200 | 8500×2800×6100 |
| WC67Y/K-1000/10000 | 10000 | 10000 | 8000 | 600 | 400 | 600 | 2×37 | / | 3+1 | 800 | 200 | 10500×2800×5850 |
| WC67Y/K-1200/6000 | 12000 | 6000 | 4900 | 600 | 400 | 800 | 2×37 | / | 3+1 | 1000 | 200 | 6500×3100×5850 |
| WC67Y/K-1200/8000 | 12000 | 8000 | 6900 | 600 | 400 | 800 | 2×37 | / | 3+1 | 1000 | 200 | 8500×3100×7150 |
Details:
DA52S Controller
1. Quick, one page programming
2. Hotkey navigation
3. 7" widescreen color TFT
4. Up to 4 axis
5. Crowning control
6. Tool/material/product library
7. USB, peripheral interfacing
8. Advanced Y-axis control algorithms for closed loop as well as open loop valves
9. Panel based controller with optional housing.

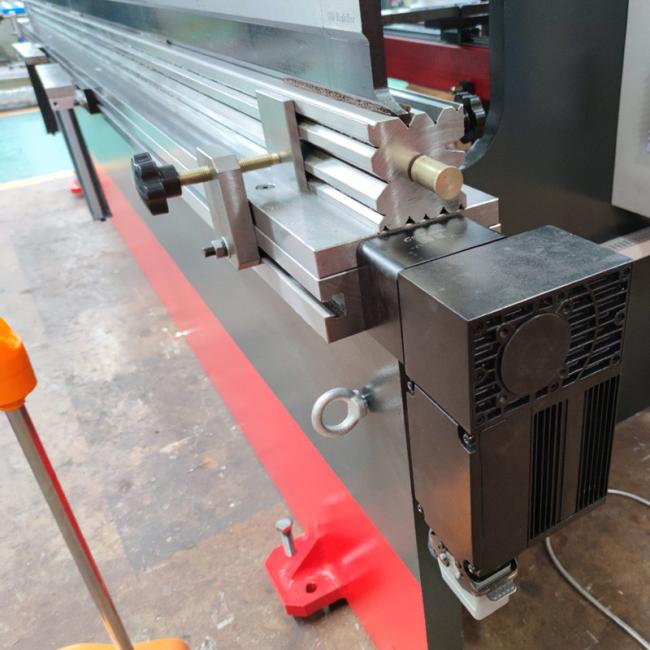

Front Supportor
Front supporter with features of simple structurer, powerful functions ,can be adjusted up and down , or moved along the workbench in rightwards and leftwards
Electric compensation
Through compensation, the angle of the workpiece is prevented from increasing in the full length range, the angle and linear accuracy of the bent workpiece are effectively improved.
Ball Screw and Linear Guide
Using Taiwan HIWIN Ball Screw and linear guider to improve the machine backgauge accurancy.
For more information, please contact me (^o^)/~
