High Speed Mechanical Punching Machine 1.5kw 35mm J23-12T For Carbon Steel
Price:
$1500-$26000/unite
MOQ:
1 Set
Delivery Time:
20-30 days
Brand:
AOXUANZG
Product Description

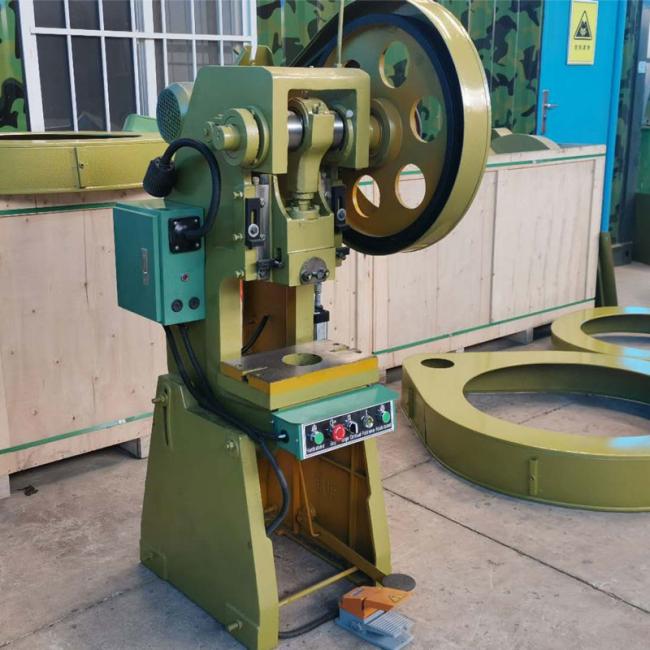

High speed Automatic Hole J23 -12T Mechanical Punching Machine for Stainless steel Profile
Main Features:
1. J23 series Open Eccentric Presses is a general-purpose presses, suitable for forming, blanking, punching, bending and other cold stamping process.
2. C-frame Casting fuselage,maximum rigidity and minimum deflection for accurate parts and long tool life. body can be tilted, , high rigidity and less deformation Compact. Thick plates and large columns provide you with the stable platform you need for your demanding application.
3. The Machine use Rigid rotated bond clutch rigid and well supported. The clutch gives continuous strokes for mass production.
4. Crank shaft is made of special alloy steel machined to close accuracy and fitted in bronze bushes for smooth working, longer life & accuracy.
5. Properly sized flywheel, is made of high grade cast iron, for storing and releasing adequate energy for the pressing operations, and properly balanced for smooth running.
6. Gear are of steel cast or fabricated. Gear teeth are generated by precision hobbing machine.
7. Machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA.
8. Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.
Technical Parameters:
| Model | J23-6.3T | J23-12T | J23-16T | J23-25T | J23-40T | J23-63T | J23-80T | J23-100T | J23-125T |
| Nominal Pressure(KN) | 63 | 120 | 160 | 250 | 400 | 630 | 800 | 1000 | 1250 |
| Nominal Pressure Stroke(mm) | 1.5 | 2 | 2 | 2.5 | 4 | 4 | 5 | 5 | 5 |
| Slide stroke(mm) | 40 | 50 | 60 | 70 | 100 | 100 | 120 | 120 | 140 |
| Stroke frequency (times/min) | 150 | 140 | 100 | 70 | 55 | 56 | 45 | 50 | 40 |
| Die Set Height (mm) | 120 | 130 | 170 | 200 | 240 | 275 | 300 | 320 | 340 |
| Die Height Adjustment | 30 | 40 | 40 | 40 | 56 | 63 | 70 | 80 | 90 |
| Worktable Size ( front-back) (mm) | 210 | 220 | 290 | 350 | 400 | 450 | 480 | 580 | 700 |
| Worktable Size ( Left-Right)(mm) | 350 | 370 | 460 | 560 | 680 | 680 | 780 | 910 | 1100 |
| Max Tilt Angle | 20 | 20 | 30 | 15 | 25 | 25 | 25 | 20 | 20 |
| Die Handle Hole Size (mm) | 25 | 30 | 35 | 40 | 50 | 50 | 60 | 60 | 60 |
| Thickness of the Worktable | 30 | 35 | 45 | 50 | 70 | 80 | 90 | 110 | 120 |
| Worktable Hole Diameter | 70 | 90 | 120 | 130 | 135 | 140 | 160 | 160 | 170 |
| Power(KW) | 0.75 | 1.5 | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 |
| Column Spacing (mm) | 140 | 170 | 190 | 240 | 250 | 280 | 320 | 390 | 400 |
| Dimensions (mm) | 400*500*1300 | 600*530*1500 | 760*650*1600 | 900*700*2000 | 1400*1000*2300 | 1700*1150*2500 | 2000*1300*2650 | 1950*1400*2850 | 2300*1500*3000 |
| Throat Depth (mm) | 120 | 130 | 170 | 190 | 250 | 260 | 290 | 330 | 330 |
Details:

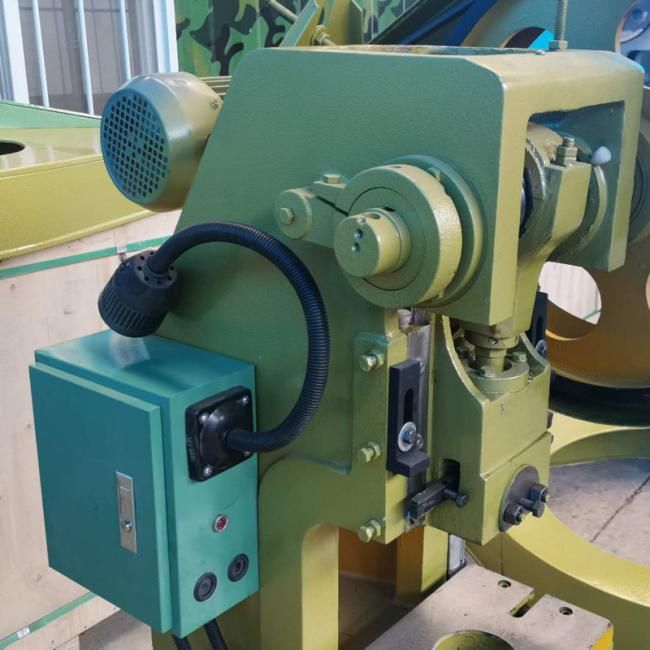

Safety light on our machine which is Convenient to use for lighting at night working.

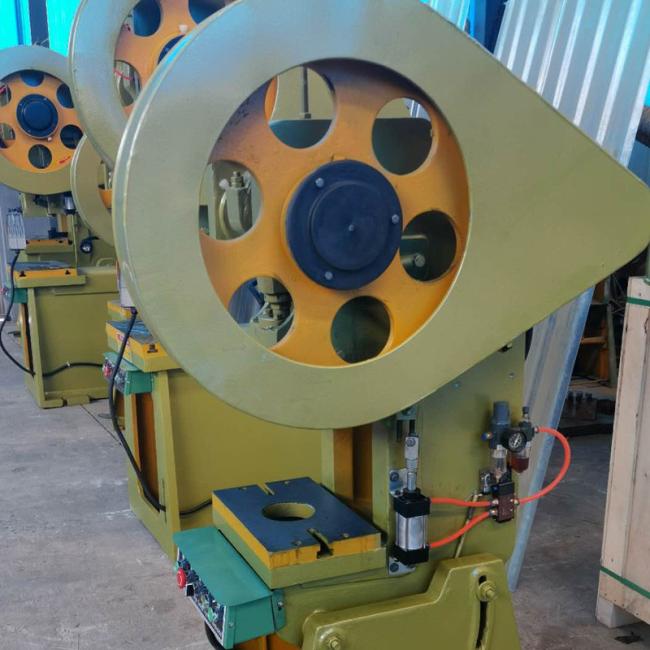

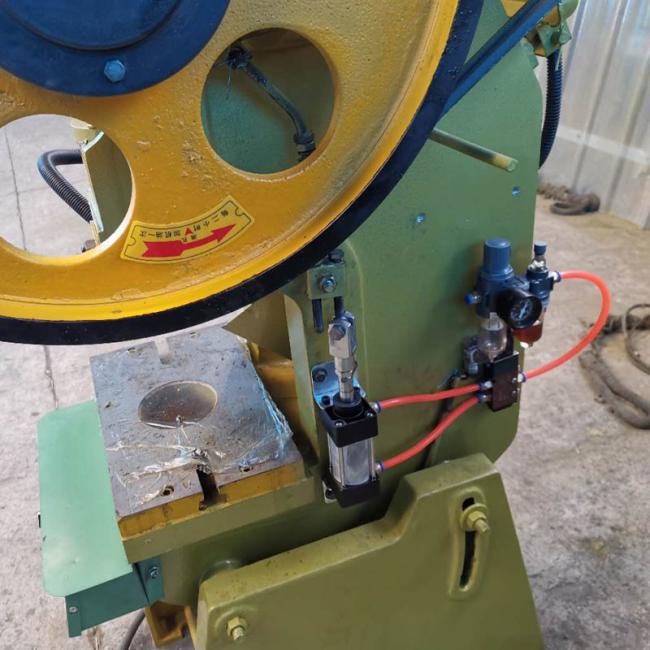

Air Clutch
Different from traditional mechanical punch machine ,our machine can be equipped with the machine, with this air clutch the machine to stop at any time at any position.

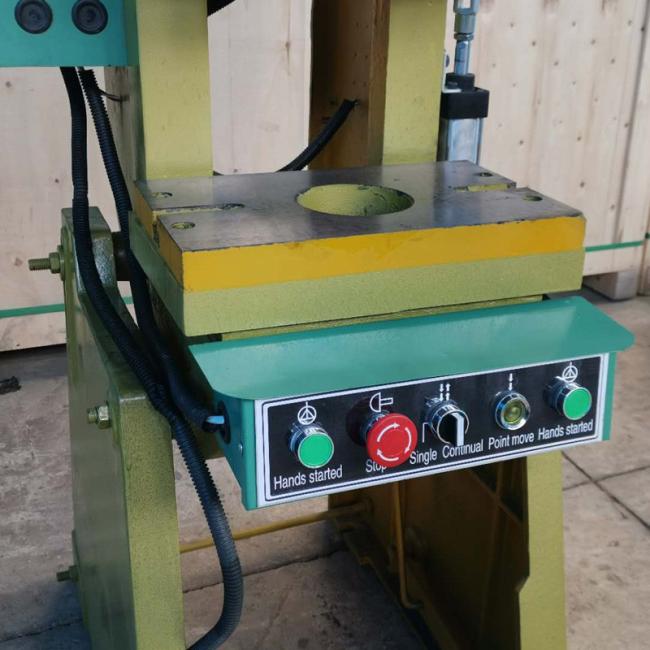

The standard double hand start button is the basic assurance of our machine.
Iron cover all around to protect the machine inside parts, which can highly extended service life of the parts.
