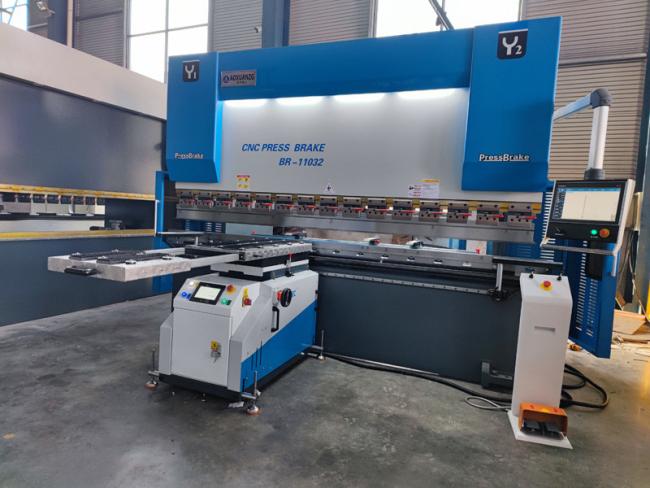

7.5kw 4mm Hydraulic CNC Press Brake For Metal Plate
1. Steel-welded construction, vibration to eliminate stress, with high strength and good rigidity.
2. Hydualic top-drive, steadiness and reliability. Mechanical stop, steel torsion bar maintain synchronization, high precision.
3. Motorize-adjustinf device of backgauge and rams stroke, fine adjusting by handwheel, numberical display.
HYDRAULIC PRESS BRAKE
1. Adopt integrated hydraulic control system, more reliable and easy for maintenance. main hydraulic valves from Bosch (Germany)
2. All pipes, flange and joint with vibrations proof and leakage proof design and setting .
3. Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly.
4. The hydraulic system is made in compliance with current regulations.
ELECTRICAL SYSTEM
1. Electrical Cabinet under the international Standard, safe and reliable, strong anti interference capability.
2. Protective fence to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.
SYNCHRO CONTROL SYSTEM
1. Patented system for exact parallelism and a high repeat accuracy
2. The worktable adopts the particular design,reducing the crowning distortion amount of lower tool effectively.
3. Adopt steel torsion bar synchro system,simple in structure and high in accuracy,ensures the parallelism between beams is used for the synchronism.
RAM AND DIES
1. The equipped difference standard Dies according machine’s model, special non-standard mold is available under client's
requirement according to real workpiece situation.
2. Upper and buttom die can be sectioned according to customer’s requirement.
3. The Machine By CNC Controller or NC Control With the point of programming, can calculate thebending angle bending depth.
Technical Parameters:
| Model | Norminal pressure (KN) | Worktable Length (mm) | Columns Distance (mm) | Throat Depth (mm) | Slider Stroke(mm) | Max Open hight (mm) | Main motor power(KW) | Crowing Cylinders | Control Axes | X axis stroke(mm) | X axis speed(mm/s) | Dimension LxWxH (mm) |
| WC67Y/K-63/2500 | 630 | 2500 | 1900 | 350 | 170 | 380 | 5.5 | 2 | 3+1 | 500 | 200 | 3100×1450×2050 |
| WC67Y/K-80/3200 | 800 | 3200 | 2700 | 350 | 170 | 380 | 7.5 | 3 | 3+1 | 500 | 200 | 3500×1550×2100 |
| WC67Y/K-100/3200 | 1000 | 3200 | 2700 | 400 | 200 | 420 | 7.5 | 3 | 3+1 | 500 | 200 | 3500×1580×2400 |
| WC67Y/K-160/3200 | 1600 | 3200 | 2700 | 400 | 200 | 420 | 11 | 3 | 3+1 | 500 | 200 | 3500×1650×2550 |
| WC67Y/K-200/3200 | 2000 | 3200 | 2700 | 400 | 200 | 420 | 15 | 3 | 3+1 | 500 | 200 | 3500×1680×2550 |
| WC67Y/K-250/3200 | 2500 | 3200 | 2700 | 400 | 200 | 420 | 15 | 3 | 3+1 | 500 | 200 | 3500×1700×2600 |
| WC67Y/K-320/3200 | 3200 | 3200 | 2700 | 400 | 200 | 420 | 22 | 3 | 3+1 | 500 | 200 | 3500×1800×2730 |
| WC67Y/K-400/4000 | 4000 | 4000 | 3500 | 500 | 320 | 600 | 30 | 4 | 3+1 | 500 | 200 | 4300×2450×3500 |
| WC67Y/K-500/5000 | 5000 | 5000 | 3900 | 500 | 320 | 600 | 37 | / | 3+1 | 800 | 200 | 5400×2810×4300 |
| WC67Y/K-500/6000 | 5000 | 6000 | 4900 | 500 | 320 | 600 | 37 | / | 3+1 | 800 | 200 | 6500×2810×4300 |
| WC67Y/K-500/7000 | 5000 | 7000 | 4900 | 500 | 320 | 600 | 37 | / | 3+1 | 800 | 200 | 7500×2810×4900 |
| WC67Y/K-600/5000 | 6000 | 5000 | 3900 | 500 | 320 | 600 | 45 | / | 3+1 | 800 | 200 | 5500×2910×4900 |
| WC67Y/K-600/6000 | 6000 | 6000 | 4900 | 500 | 320 | 600 | 45 | / | 3+1 | 800 | 200 | 6500×2910×5100 |
| WC67Y/K-600/7000 | 6000 | 7000 | 5900 | 500 | 320 | 600 | 45 | / | 3+1 | 800 | 200 | 7500×2910×5200 |
| WC67Y/K-800/6000 | 8000 | 6000 | 4900 | 600 | 400 | 600 | 55 | / | 3+1 | 800 | 200 | 6500×2750 ×5300 |
| WC67Y/K-800/8000 | 8000 | 8000 | 6900 | 600 | 400 | 600 | 55 | / | 3+1 | 800 | 200 | 8500×2750×5900 |
| WC67Y/K-1000/6000 | 10000 | 6000 | 4900 | 600 | 400 | 600 | 2×37 | / | 3+1 | 800 | 200 | 6500×2800×5600 |
| WC67Y/K-1000/8000 | 10000 | 8000 | 6900 | 600 | 400 | 600 | 2×37 | / | 3+1 | 800 | 200 | 8500×2800×6100 |
| WC67Y/K-1000/10000 | 10000 | 10000 | 8000 | 600 | 400 | 600 | 2×37 | / | 3+1 | 800 | 200 | 10500×2800×5850 |
| WC67Y/K-1200/6000 | 12000 | 6000 | 4900 | 600 | 400 | 800 | 2×37 | / | 3+1 | 1000 | 200 | 6500×3100×5850 |
| WC67Y/K-1200/8000 | 12000 | 8000 | 6900 | 600 | 400 | 800 | 2×37 | / | 3+1 | 1000 | 200 | 8500×3100×7150 |
Details:
Main Configuration
Laimore EL15T CNC Controller
Adopting HIWIN ball screw and linear guide rail, accuracy 0.01mm
Front supporter bracket
Germany Bosch Rexroth hydraulic valve block
Germany EMB oil tube connector
Germany Siemens main motor
France Schneider electrics
Hydraulic & electrical overload protection
Automatic Mechanical compensation
Upper and lower dies(86°, R0.6mm, material: 42CrMo)
Kacon pedal switch
South Korea KACON pedal switch, improving the service life and operational sensitivity
Automatic Bracket
Fully automatic, more high-end, save time and labor!
Ball Screw & Guide LinearBall
Adopt the HIWIN brand from Taiwan Ball Screw and guide linear , promise the high precision and speed when workingAdopt the HIWIN brand from Taiwan Ball Screw and guide linear , promise the high precision and speed when working
Our Service
Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging * Inquiry and consulting support.
* Sample testing support.
In-sales.
* We will provide you with the latest progress in the product assembly, packaging and transportation.
After-sales.
* We will provide free accessories for the damage to non - human parts. * Training how to install the machine, training how
to use the machine with video and so on * And our technical staff can go abroad to provide technical guidance.
