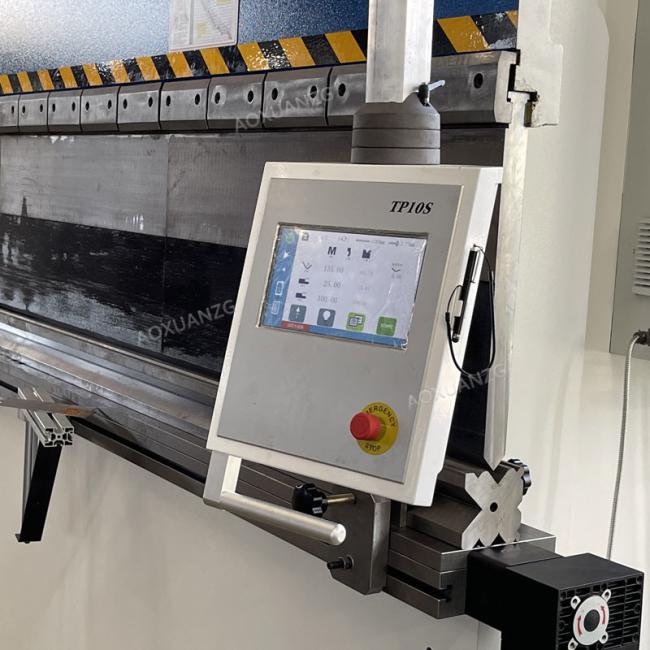

CNC Hydraulic Press Brakes With Servo Motor TP10S
Technical Parameters:
| Model | Nominal pressure (KN) | Worktable Length (mm) | Columns Distance (mm) | Throat | Slider | Max | Main | Dimension |
| Depth | Stroke | Open | motor | L x W x H | ||||
| (mm) | (mm) | height | Power | (mm) | ||||
| (mm) | (KW) | |||||||
| WC67Y/K-30/1600 | 300 | 1600 | 1280 | 200 | 80 | 190 | 3 | 1700×900×1650 |
| WC67Y/K-30/2000 | 300 | 2000 | 1280 | 200 | 80 | 190 | 3 | 1700×900×1650 |
| WC67Y/K-40/2500 | 400 | 2500 | 1900 | 280 | 100 | 320 | 5.5 | 2600×1100×1900 |
| WC67Y/K-63/2500 | 630 | 2500 | 1900 | 350 | 170 | 380 | 5.5 | 3100×1450×2050 |
| WC67Y/K-80/3200 | 800 | 3200 | 2700 | 350 | 170 | 380 | 7.5 | 3500×1550×2100 |
| WC67Y/K-100/3200 | 1000 | 3200 | 2700 | 400 | 200 | 420 | 7.5 | 3500×1580×2400 |
| WC67Y/K-160/3200 | 1600 | 3200 | 2700 | 400 | 200 | 420 | 11 | 3500×1650×2550 |
| WC67Y/K-200/3200 | 2000 | 3200 | 2700 | 400 | 200 | 420 | 15 | 3500×1680×2550 |
| WC67Y/K-250/3200 | 2500 | 3200 | 2700 | 400 | 200 | 420 | 15 | 3500×1700×2600 |
| WC67Y/K-320/3200 | 3200 | 3200 | 2700 | 400 | 200 | 420 | 22 | 3500×1800×2730 |
| WC67Y/K-400/4000 | 4000 | 4000 | 3500 | 500 | 320 | 600 | 30 | 4300×2450×3500 |
| WC67Y/K-500/5000 | 5000 | 5000 | 3900 | 500 | 320 | 600 | 37 | 5400×2810×4300 |
| WC67Y/K-500/6000 | 5000 | 6000 | 4900 | 500 | 320 | 600 | 37 | 6500×2810×4300 |
| WC67Y/K-500/7000 | 5000 | 7000 | 4900 | 500 | 320 | 600 | 37 | 7500×2810×4900 |
| WC67Y/K-600/5000 | 6000 | 5000 | 3900 | 500 | 320 | 600 | 45 | 5500×2910×4900 |
| WC67Y/K-600/6000 | 6000 | 6000 | 4900 | 500 | 320 | 600 | 45 | 6500×2910×5100 |
| WC67Y/K-600/7000 | 6000 | 7000 | 5900 | 500 | 320 | 600 | 45 | 7500×2910×5200 |
| WC67Y/K-800/6000 | 8000 | 6000 | 4900 | 600 | 400 | 600 | 55 | 6500×2750 ×5300 |
| WC67Y/K-800/8000 | 8000 | 8000 | 6900 | 600 | 400 | 600 | 55 | 8500×2750×5900 |
| WC67Y/K-1000/6000 | 10000 | 6000 | 4900 | 600 | 400 | 600 | 2×37 | 6500×2800×5600 |
| WC67Y/K-1000/8000 | 10000 | 8000 | 6900 | 600 | 400 | 600 | 2×37 | 8500×2800×6100 |
| WC67Y/K-1000/10000 | 10000 | 10000 | 8000 | 600 | 400 | 600 | 2×37 | 10500×2800×5850 |
| WC67Y/K-1200/6000 | 12000 | 6000 | 4900 | 600 | 400 | 800 | 2×37 | 6500×3100×5850 |
| WC67Y/K-1200/8000 | 12000 | 8000 | 6900 | 600 | 400 | 800 | 2×37 | 8500×3100×7150 |
The standard cofiguration:

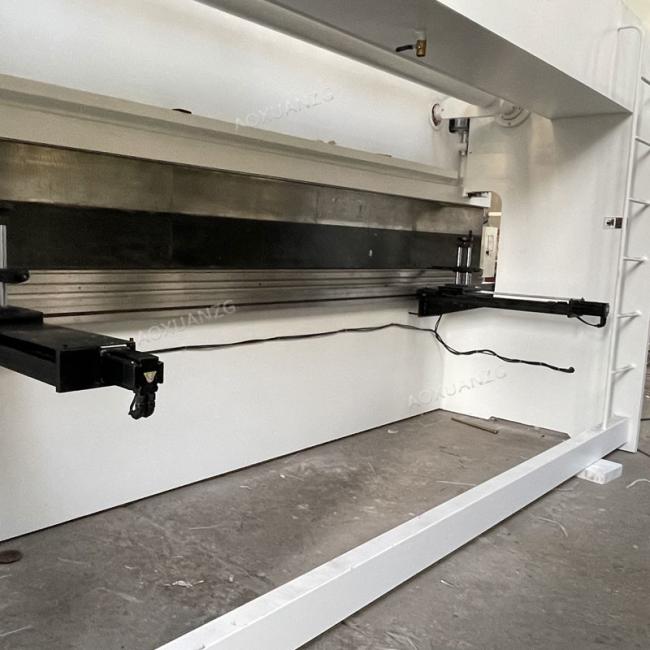

High precision backguage
Germany Bosch Rexroth safety valve
Germany EMB Hose connector
Schneider Electric Syste
RV reducer motor working table compensation (Optional)
Compensation device on workbench (Optional
Quick mold clamping device

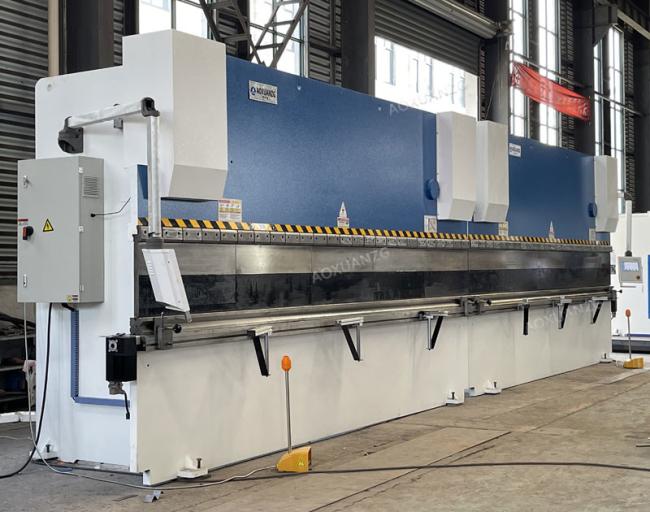

Details:
Certifications:
Our Service
Pre-sales.
* Project design, performance introduction, technical agreement, contract signing, packaging
* Inquiry and consulting support.
* Sample testing support.
In-sales.
* We will provide you with the latest progress in the product assembly, packaging and transportation.
After-sales.
* We will provide free accessories for the damage to non - human parts.
* Training how to install the machine, training how to use the machine with video and so on
* And our technical staff can go abroad to provide technical guidance.
