China 63T 2500MM Hydraulic Press Brakes CNC With DA66T 8+1 Axis for sale

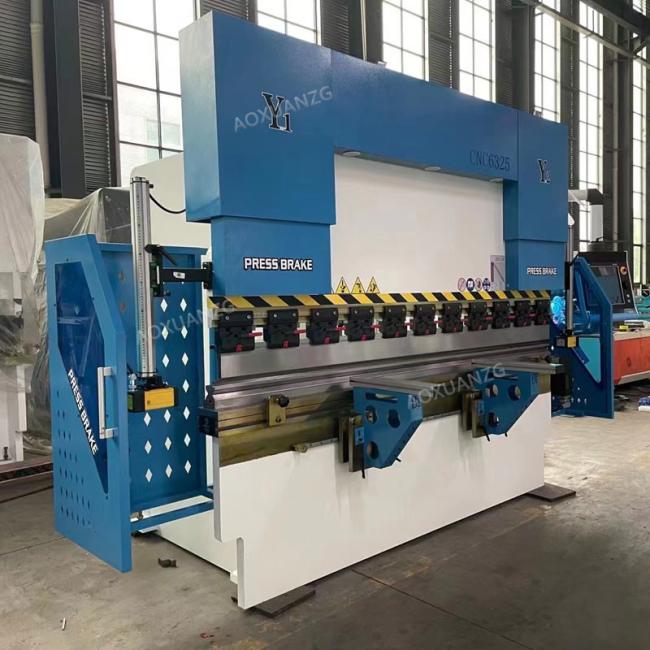

63T 2500MM Hydraulic Press Brakes CNC With DA66T 8+1 Axis

Price Negotiable

Price: $28859-$39978/unit

MOQ: 1 set

Delivery Time: 20-30 days

Brand: AOXUANZG

Product Description

Hydraulic Accuracy 63T2500MM Hydraulic Press Brakes Press Bendder CNC With DA66T 8+1 Axis

Features:
WC67Y Hydraulic Press brake
1. Steel-welded construction, vibration to eliminate stress, with high strength and good rigidity.
2. Hydualic top-drive, steadiness and reliability. Mechanical stop, steel torsion bar maintain synchronization, high precision.
3. Motorize-adjustinf device of backgauge and rams stroke, fine adjusting by handwheel, numberical display.

Characteristics
1. Adopt integrated hydraulic control system, more reliable and easy for maintenance. main hydraulic valves from Bosch (Germany)
2. All pipes, flange and joint with vibrations proof and leakage proof design and setting .
3. Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly.
4. The hydraulic system is made in compliance with current regulations.

Technical Parameters:

Model	Nominal pressure (KN)	Worktable Length (mm)	Columns Distance (mm)	Throat	Slider	Max	Main	Dimension
				Depth	Stroke	Open	motor	L x W x H
				(mm)	(mm)	height	Power	(mm)
						(mm)	(KW)
WC67Y/K-30/1600	300	1600	1280	200	80	190	3	1700×900×1650
WC67Y/K-30/2000	300	2000	1280	200	80	190	3	1700×900×1650
WC67Y/K-40/2500	400	2500	1900	280	100	320	5.5	2600×1100×1900
WC67Y/K-63/2500	630	2500	1900	350	170	380	5.5	3100×1450×2050
WC67Y/K-80/3200	800	3200	2700	350	170	380	7.5	3500×1550×2100
WC67Y/K-100/3200	1000	3200	2700	400	200	420	7.5	3500×1580×2400
WC67Y/K-160/3200	1600	3200	2700	400	200	420	11	3500×1650×2550
WC67Y/K-200/3200	2000	3200	2700	400	200	420	15	3500×1680×2550
WC67Y/K-250/3200	2500	3200	2700	400	200	420	15	3500×1700×2600
WC67Y/K-320/3200	3200	3200	2700	400	200	420	22	3500×1800×2730
WC67Y/K-400/4000	4000	4000	3500	500	320	600	30	4300×2450×3500
WC67Y/K-500/5000	5000	5000	3900	500	320	600	37	5400×2810×4300
WC67Y/K-500/6000	5000	6000	4900	500	320	600	37	6500×2810×4300
WC67Y/K-500/7000	5000	7000	4900	500	320	600	37	7500×2810×4900
WC67Y/K-600/5000	6000	5000	3900	500	320	600	45	5500×2910×4900
WC67Y/K-600/6000	6000	6000	4900	500	320	600	45	6500×2910×5100
WC67Y/K-600/7000	6000	7000	5900	500	320	600	45	7500×2910×5200
WC67Y/K-800/6000	8000	6000	4900	600	400	600	55	6500×2750 ×5300
WC67Y/K-800/8000	8000	8000	6900	600	400	600	55	8500×2750×5900
WC67Y/K-1000/6000	10000	6000	4900	600	400	600	2×37	6500×2800×5600
WC67Y/K-1000/8000	10000	8000	6900	600	400	600	2×37	8500×2800×6100
WC67Y/K-1000/10000	10000	10000	8000	600	400	600	2×37	10500×2800×5850
WC67Y/K-1200/6000	12000	6000	4900	600	400	800	2×37	6500×3100×5850
WC67Y/K-1200/8000	12000	8000	6900	600	400	800	2×37	8500×3100×7150

Details:

The standard cofiguration:

Germany Bosch Rexroth safety valve
Germany EMB Hose connector
Schneider Electric System
Quick mold clamping device

DA66T Controller System:

Backgauge
6 Axis CNC Backgauge ,including the R1 R2 ; X1 X2 ; Z1 Z2 ,can move up and down ; front and back , left and right , the fine adjustment with high accuracy up to ± 0.02mm

Quick Clamp
The standard quick fixture will help you to change the upper mold better in a short time. Convenient to save time and improve work efficiency.

Laser Protection Device (optional)
It can effectively prevent the occurrence of pinching when working in fast mode. Good safety performance and long service life.
