White Frame 52 IR Safety Glasses For Red Lasers 808nm Diodes
Ir Laser Safety Protection Glasses Eyewear Shields For Red Lasers, 808nm Diodes With White Frame 52
Information of Laser Safety Glasses:
| Model No.: | RTD-3 | Protect Wavelength: | 630-660nm & 800-1100nm |
|---|---|---|---|
| Transmittance: | 35% | OD Value: | OD2+@630-660nm & OD5+@800-1100nm |
| Material: | Polycarbonate | Suit for: | 635nm, 660nm, 808nm, 980nm etc., |
| Logo: |
Customize Logo |
Application: | Red Laser, 808nm 980nm Diodes |
Laser Safety Glasses RTD-3 Advantage:
1. Wavelength: 630-660nm&800-1100nm
2. Optical density: 630 - 660nm OD2+, 800 - 1100nm OD5+
3. Visible light transmittance: 35%
4. Available for: 635nm, 808nm, 980nm
5. According : CE EN207
6. Application: red lasers, 808nm diodes
7. Stable, clear and flexible PVC curved body, fits the face.
8. Safety Glasses for laser exposure in industrial, military and medical applications.
9. Wind-proof, Sand-proof

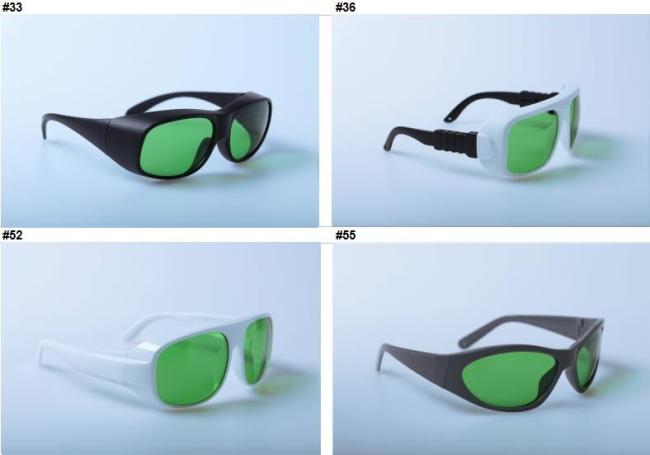

Four Frames #33 #36 #52 #55:
The lens of the glasses are made of macromolecule and laser absorber. The optical properties of the lens meet all demand of the standard EN 207.
Safe Packing:

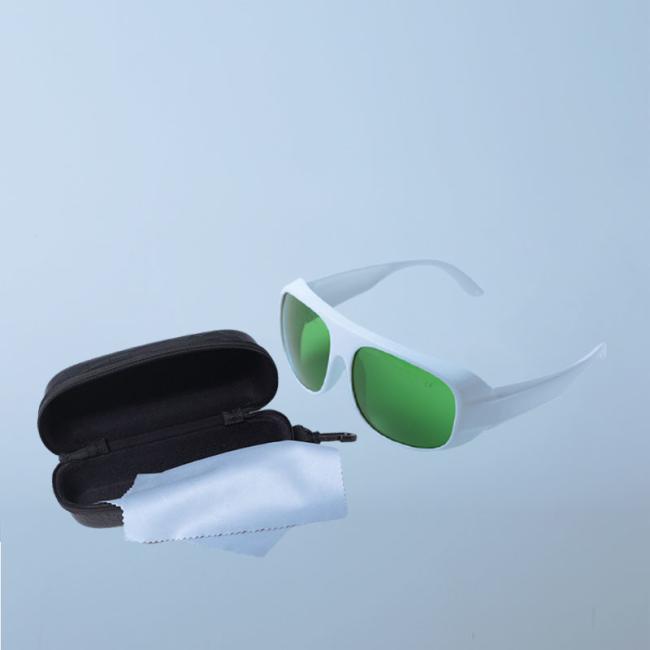

Each pair of safety glasses comes with a protective storage case and a cleaning cloth.
Related Products:
Our laser safety glasses are strictly in accordance with ANSI Z136 and EN207.
IPL safety glasses and patient eyewear are strictly in accordance with EN169.
| Normal Type | Typical For | Transmittance | O.D | L-Rating |
| GTY | 532&1064nm | 30% | 200 - 540nm O.D 6+ & 900 - 1100nm O.D 5+ | 315 - 540nm DIRM LB5 & 900 - 1070nm DIR LB5 |
| RTD-3 | 635&808nm&980nm | 35% | 630 - 660nm O.D2+ & 800nm - 1100nm O.D5+ | 630 - 660nm DIR LB2 & 800 - 1100nm DIR LB5 |
| RTD-4 | 635&905nm&980nm | 37% | 630 - 660nm O.D3+ & 800nm - 830nm O.D3+ & 900 - 1100nm O.D5+ | 630 - 660nm DIR LB3 & 800 - 830nm DIR LB3 & 900 - 1100nm DIR LB5 |
| ADY | 755&808&1064nm | 40% | 740 - 1100nm O.D 5+ & 780 - 1070nm O.D7+ | 740 - 1100nm DIR LB5 & 800 - 1070nm IR LB7 |
| DTY | 980&1064&1320nm | 40% | 800 - 1700nm O.D 4+ & 900 - 1100nm O.D 5+ | 800 - 1400nm DIR LB4 & 1400 - 1700nm DI LB3 |
| YHP | High Power 808&980&1064nm | 60% | 800 - 1100nm O.D 5+ & 1060 - 1070nm O.D 7+ | 800 - 1100nm DIR LB5 & 1000 - 1070nm IR LB7 |
| CHP | 10600nm | 90% | 9000-11000nm O.D 6+ | 9000-11000nm DI LB3 |
| IPL | 200 – 1400nm | 10% | IPL Machine | |
| YLW | 1064nm Laser Window | 40% | 800 -1100nm O.D 4+ & 1064nm O.D 6+ | 1064nm DIR LB5 |
CE Certificate:
Our laser safety glasses are all certificated by the EU National Laboratory with EN207.
Quality Control:
Our QC department is composed of 3 QC engineers and 5 QC assistants,with the expanding of our output,more QC staffs are needed. We strictly conduct international quality standards to meet the clients demands.
