740-1100nm Laser Safety Glasses CE EN207 For Alexandrite Diodes Nd YAG
Laser Safety Glasses Eye Protection Eyewear for Alexandrite, Diodes, Nd: YAG with CE EN207
755nm, 808nm, 980nm, 1064nm Eye Protection EyewearWith High Protection
LaserPair recommends that you wear laser safety glasses when the laser class is greater than Class 1. Choose different laser safety glasses according to different laser wavelengths and working environments.
Specification of Laser Safety Glasses:
| Model No.: | ADY | Protect Wavelength: | 740-1100nm |
|---|---|---|---|
| Transmittance: | 40% | OD Value: | OD5+@740-1100nm & OD7+@780-1070nm |
| Material: | Polycarbonate | Suit for: | 755nm, 808nm, 980nm, 1064nm etc., |
|
LensType: |
Protection |
Application: | Alexandrite Laser, Diode Laser, ND:YAG Laser |
Advantage:
1. Protect Wavelength: 740-1100nm
2. Optical density: OD5+@740-1100nm & OD7+@780-1070nm
3. Visible light transmittance: 40%
4. Available for: 755nm, 808nm, 980nm, 1064nm
5. According : CE EN207
6. Application: Alexandrite Laser, Diode Laser, ND:YAG Laser
Four Frames #33 #36 #52 #55:
The lens of the glasses are made of macromolecule and laser absorber. The optical properties of the lens meet all demand of the standard EN 207.

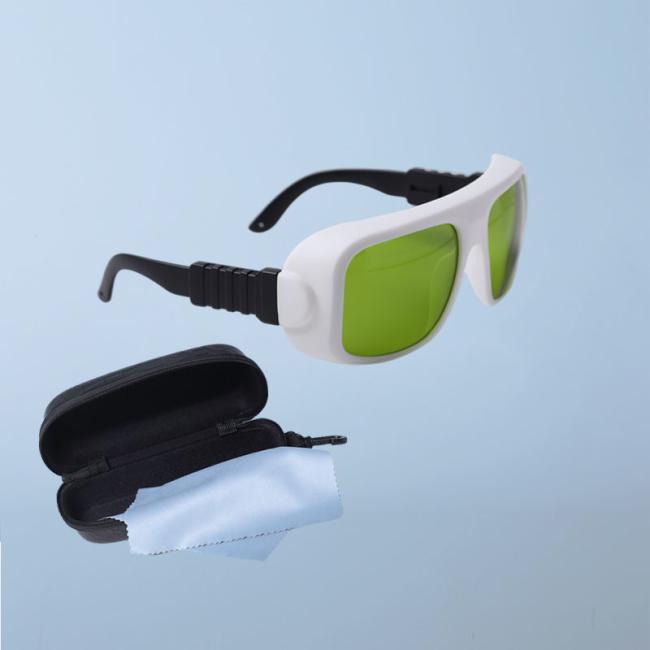

Safe Packing:
Each pair of safety glasses comes with a protective storage case and a cleaning cloth.
Related Products:
Our laser safety glasses are strictly in accordance with ANSI Z136 and EN207.
IPL safety glasses and patient eyewear are strictly in accordance with EN169.
| Normal Type | Typical For | Transmittance | O.D | L-Rating |
| GTY | 532&1064nm | 30% | 200 - 540nm O.D 6+ & 900 - 1100nm O.D 5+ | 315 - 540nm DIRM LB5 & 900 - 1070nm DIR LB5 |
| RTD-3 | 635&808nm&980nm | 35% | 630 - 660nm O.D2+ & 800nm - 1100nm O.D5+ | 630 - 660nm DIR LB2 & 800 - 1100nm DIR LB5 |
| RTD-4 | 635&905nm&980nm | 37% | 630 - 660nm O.D3+ & 800nm - 830nm O.D3+ & 900 - 1100nm O.D5+ | 630 - 660nm DIR LB3 & 800 - 830nm DIR LB3 & 900 - 1100nm DIR LB5 |
| ADY | 755&808&1064nm | 40% | 740 - 1100nm O.D 5+ & 780 - 1070nm O.D7+ | 740 - 1100nm DIR LB5 & 800 - 1070nm IR LB7 |
| DTY | 980&1064&1320nm | 40% | 800 - 1700nm O.D 4+ & 900 - 1100nm O.D 5+ | 800 - 1400nm DIR LB4 & 1400 - 1700nm DI LB3 |
| YHP | High Power 808&980&1064nm | 60% | 800 - 1100nm O.D 5+ & 1060 - 1070nm O.D 7+ | 800 - 1100nm DIR LB5 & 1000 - 1070nm IR LB7 |
| CHP | 10600nm | 90% | 9000-11000nm O.D 6+ | 9000-11000nm DI LB3 |
| IPL | 200 – 1400nm | 10% | IPL Machine | |
| YLW | 1064nm Laser Window | 40% | 800 -1100nm O.D 4+ & 1064nm O.D 6+ | 1064nm DIR LB5 |
