Product Description
The MBC2406 is a high-performance, integrated control board designed specifically for pedestrian turnstile gates and access control systems. By unifying motion control logic and brushless servo driving into a single mainboard, it delivers smooth gate operation, precise position tracking without external encoders, and intelligent safety protection.
Whether you are manufacturing speed gates, swing gates, flap barrier gates, or tripod turnstiles, the MBC2406 provides a reliable, plug-and-play control architecture with comprehensive logic detection and flexible sensor layouts.

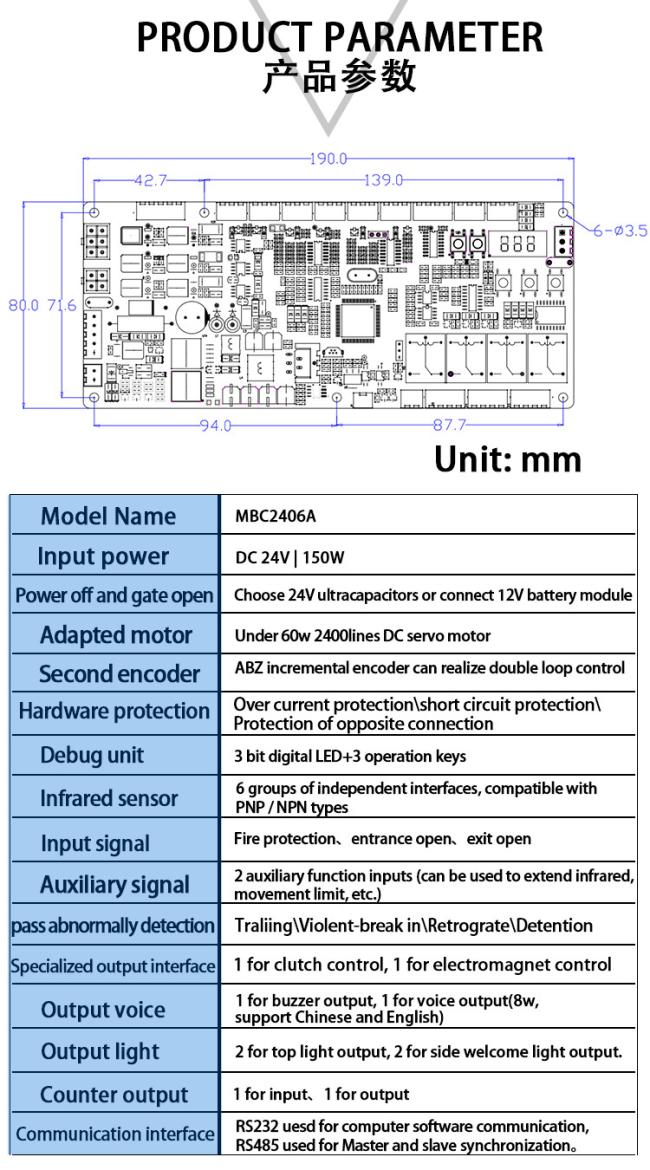

| Feature / Parameter | Specification / Details |
| Model | MBC2406 |
| Type | Turnstile Gate Brushless Servo Driver Control All-in-One Board |
| Motor Compatibility | Brushless Servo Motor (no external encoder required for standard setup) |
| Communication Interface | RS232 (Supports standard protocols for Host Computer / IPC integration) |
| Infrared Sensor Layouts | Supports 3 groups, 4 groups (4 top / 2 bottom), or 6 groups (6 top / 2 bottom) |
| Safety Features | Self-learning load curve, physical anti-pinch, adjustable sensitivity, infrared anti-pinch |
| Logic Detection Functions | Illegal entry, tailgating detection, reverse passage, lingering detection |
| Passage Modes | Card swipe entry/exit, free passage, entry/exit prohibited |
| Applicable Gate Types | Speed gates, swing gates, flap barriers, sliding gates, tripod turnstiles, full-height turnstiles |
