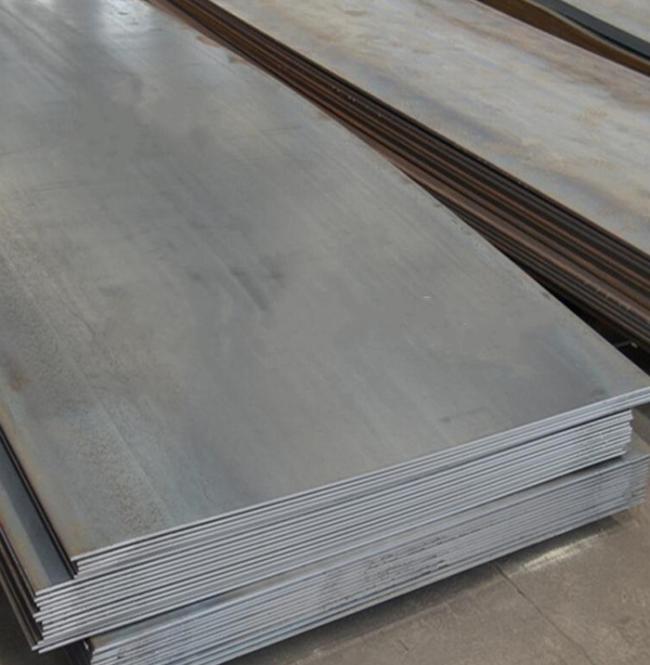

Steel Plate: ASTM A516 Grade 70
ASTM A516 Gr 70 Rolled Plate is a manganese, phosphorus, sulfur, and silicon alloy with a mild carbon content. These additional alloying elements boost strength and adaptability in high-stress applications such as pressure vessels needing moderate to low temperatures and notch toughness.
There are further tests available, such as charpy impacts, ultrasonic examination, and carbon equivalency. All plates thicker than 1-1/2" must be normalized. See ASTM A516-70 Normalized for further details.
Chemical Requirements
*Elements represented in percentage
| Elements | SA 516 Gr 60 (Grade 415) |
SA 516 Gr 65 (Grade 450) |
SA 516 Gr 70 (Grade 485) |
|---|---|---|---|
| Carbon, max composition% | |||
| 1/2 in. (12.5 mm) and under | 0.21 | 0.24 | 0.27 |
| Over 1/2 to 2 in. (12.5 to 50 mm), incl | 0.23 | 0.26 | 0.28 |
| Over 2 to 4 in. (50 to 100 mm), incl | 0.25 | 0.28 | 0.30 |
| Over 4 to 8 in. (100 to 200 mm), incl | 0.27 | 0.29 | 0.31 |
| Over 8 in. (200 mm) | 0.27 | 0.29 | 0.31 |
| Manganese, max | |||
| 1/2 (12.5) and under: | |||
| Heat analysis | 0.60-0.90 | 0.85-1.20 | 0.85-1.20 |
| Product analysis | 0.55-0.98 | 0.79-1.30 | 0.79-1.30 |
| Over 1/2 in (12.5) | |||
| Heat analysis | 0.85-1.20 | 0.85-1.20 | 0.85-1.20 |
| Product analysis | 0.79-1.30 | 0.79-1.30 | 0.79-1.30 |
| Phosphorus, max | 0.025 | 0.025 | 0.025 |
| Sulfur, max | 0.025 | 0.025 | 0.025 |
| Silicon | |||
| Heat analysis | 0.15-0.40 | 0.15-0.40 | 0.15-0.40 |
| Product analysis | 0.13-0.45 | 0.13-0.45 | 0.13-0.45 |
Tensile Requirements
| SA 516 Gr 60 (Grade 415) |
SA 516 Gr 65 (Grade 450) |
SA 516 Gr 70 (Grade 485) |
|
|---|---|---|---|
| Tensile strength, ksi (MPa) | 60-80(415-550) | 65-85(450-585) | 70-90(485-620) |
| Yield strength, min.B ksi (MPa) | 32(220) | 35(240) | 38(260) |
| Elongation in 8 in. (200 mm), min. | 21 | 19 | 17 |
| Elongation in 2 in. (50 mm), min. | 25 | 23 | 21 |
