ASTM A36 1008 4320 S235jr Low Carbon Steel Diamond Plate Sheet Metal
ASTM A36 1008 4320 S235jr Low Carbon Steel Diamond Plate Sheet Metal

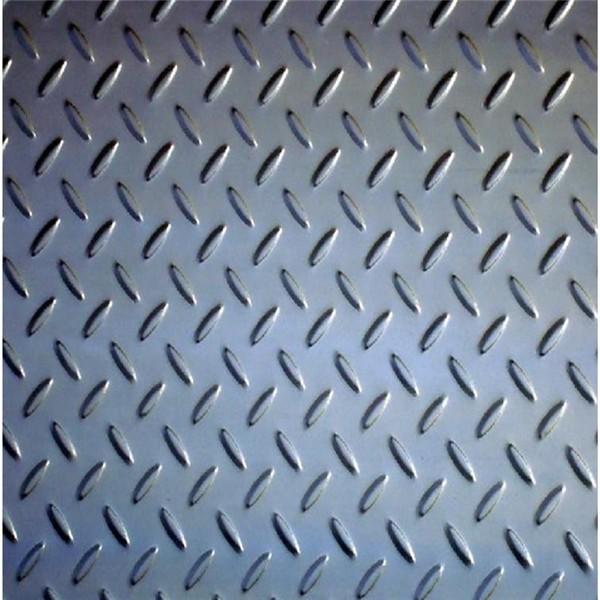

The term "checkered steel plate" refers to the decorative pattern surface of steel plates that have many uses in transportation, architecture, decoration, equipment, flooring, machinery, shipbuilding, and other fields. The quality of the pattern board is primarily determined by the height and pattern of the flowers; currently, the thickness that is commonly used on the market varies from 1.5 to 12 mm, and the width is 1250, 1500, and 1800 mm (also can according to the buyer need)
| rade | Carbon/Galvanized | Stainless | Aluminium |
| Q235,SS400,St37-2,St52,ASTMA36,A283GRC,S235JR... | 201,202,301,302,304,304L,310S, 310, 309, 309S, 316, 316L, 316Ti,403, 405, 409, 409L, 410, 410S, 420, 430....... | 1050,1060,1100,2024,2204,3003, 5052, 5754...... | |
| Thickness | 1-10mm(2-8mm usually used) | ||
| Width | 1000-2000mm (1250 and 1500mm usually used) | ||
| Length | 1000-12000mm or as your request | ||
| Surface | Carbon,Galvanized,Stainless,Aluminium | ||
| Pattern | Diamond,Round Bean,Hyacinth Bean,5 Bar...... | ||
| Carbon Checkered Plate Theoretical Weight(Kg/ m²) |
||||||||||
| Pattern/Thc(mm) | (Diamond) | (Tear Drop) | (Round Bean) | |||||||
| 2.5 | 21.6 | 21.3 | 21.1 | |||||||
| 3 | 25.6 | 24.4 | 24.3 | |||||||
| 3.5 | 29.5 | 28.4 | 28.3 | |||||||
| 4 | 33.4 | 32.4 | 32.3 | |||||||
| 4.5 | 37.3 | 36.4 | 36.2 | |||||||
| 5 | 42.3 | 40.5 | 40.2 | |||||||
| 5.5 | 46.2 | 44.3 | 44.1 | |||||||
| 6 | 50.1 | 48.4 | 48.1 | |||||||
| 7 | 59 | 52.6 | 52.4 | |||||||
| 8 | 66.8 | 56.4 | 56.2 | |||||||
| Stainless Checkered Plate Theoretical Weight(Kg/ m²) |
||||||||||
| Thickness(mm) | (Kg/ m²) | |||||||||
| 2.5 | 22.6 | |||||||||
| 3 | 26.6 | |||||||||
| 3.5 | 30.5 | |||||||||
| 4 | 34.4 | |||||||||
| 4.5 | 38.3 | |||||||||
| 5 | 42.3 | |||||||||
| 6 | 50.1 | |||||||||
| 8 | 66.8 | |||||||||
|
Aluminium Checkered Plate
Theoretical Weight(Kg/ m²)
|
||||||||||
| Material Thc(mm) |
LY12 (2024) |
LY11 (2.8) |
L1-L6() Pure Aluminium |
LY11 (2017) |
LF6 KF43 | LY11 | ||||
| 1 | 3.45 | - | - | - | - | - | ||||
| 1.2 | 4.01 | - | - | - | - | - | ||||
| 1.5 | 4.84 | - | 4.67 | - | 4.62 | - | ||||
| 1.8 | 5.68 | - | - | - | - | - | ||||
| - | - | - | - | - | - | - | ||||
| 2 | 6.23 | 6.9 | 6.02 | 5.06 | 5.96 | - | ||||
| 2.5 | 7.62 | 8.3 | 7.38 | 7.46 | 7.3 | - | ||||
| 3 | 9.01 | 9.7 | 8.73 | 8.86 | 8.64 | 9.1 | ||||
| 3.5 | - | 11.1 | 10.09 | 10.26 | 9.98 | - | ||||
| 4 | - | 12.5 | 11.44 | 11.66 | 11.32 | 11.95 | ||||
| 4.5 | - | - | 12.8 | - | - | - | ||||
| 5 | - | - | - | - | - | 15.35 | ||||
FAQ
Q1. Where is your factory ?
A1: Our company’s processing center is located in Wuxi,Jiangsu, China. Which is well equipped with kinds of machines, such as laser cutting machine,mirror polishing machine and so on. We can provide a wide range of personalized services according to the customers’ needs.
Q2. What are your company's main products ?
A2: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.
Q3. How do you control quality ?
A3: Mill Test Certification is supplied with shipment, Third Party Inspection is available.
Q4. What are the advantages of your company ?
A4: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.
Q5. How many coutries you already exported ?
A5: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan, India, etc.
Q6. Can you provide sample ?
A6: Small samples in store and can provide the samples for free. Customized samples will take about 5-7days.
