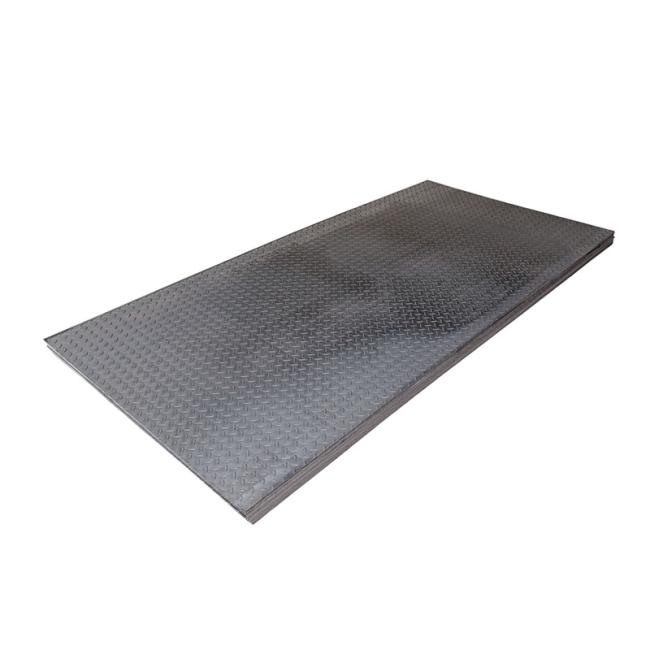

Q235 Ms Diamond Steel Sheet Mild Carbon Steel Sheet Structural Steel Ms Chequered Steel Sheet
Q235 Ms Diamond Steel Sheet Mild Carbon Steel Sheet Structural Steel Ms Chequered Steel Sheet
This specification covers four grades of carbon steel plates of structural quality for general application. Steel samples shall be melt processed by either open-hearth, basic-oxygen, or electric furnace. Heat and product analysis shall be performed wherein steel materials shall conform to required chemical compositions of carbon, manganese, phosphorus, sulfur, silicon, and copper. Steel specimens shall undergo tensile tests and shall conform to required values of tensile strength, yield point, and elongation. ASTM A283 plate steel features low and intermediate tensile strength carbon steel plate of structural quality. The four common variants are represented as separate materials.
| Grade A | Grade B | Grade C | Grade D | |
| Carbon, max | 0.14 | 0.17 | 0.24 | 0.27 |
| Manganese, max | 0.90 | 0.90 | 0.90 | 0.90 |
| Phosphorus, max | 0.035 | 0.035 | 0.035 | 0.035 |
| Sulphur, max | 0.04 | 0.04 | 0.04 | 0.04 |
| Silicon Plates 1 1/2 in and under, max Plates over 1 1/2 in |
0.40 0.15-0.40 | 0.40 0.15-0.40 | 0.40 0.15-0.40 | 0.40 0.15-0.40 |
| Copper min % when copper steel is specified | 0.20 | 0.20 | 0.20 | 0.20 |
ASTM A283 Mechanical Properties
Grade A |
Grade B | Grade C | Grade D | |
| Tensile Strength: | 45,000 -60,000 psi [310 - 415 MPa] |
50,000 -65,000 psi [345 - 450 MPa] |
55,000 75,000 psi [380 - 515 MPa] |
60,000 -80,000 psi [415 - 550 MPa] |
| Min. Yield Point: | 24,000psi [165 MPa] |
27,000psi [185 MPa] |
30,000psi [205 MPa] |
33,000psi [ 230 MPa] |
| Elongation in 8": | 27% min | 25% min | 22% min | 20% min |
| Elongation in 2": | 38% min | 28% min | 25% min | 23% min |
ASTM A283 carbon steel is an alloy of iron, further classified as a carbon steel. This is steel specification covers four grades of low carbon steel plates of structural quality for general application. Grades A, B, C and D.
FAQ
Q1. Where is your factory ?
A1: Our company’s processing center is located in Wuxi,Jiangsu, China. Which is well equipped with kinds of machines, such as laser cutting machine,mirror polishing machine and so on. We can provide a wide range of personalized services according to the customers’ needs.
Q2. What are your company's main products ?
A2: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.
Q3. How do you control quality ?
A3: Mill Test Certification is supplied with shipment, Third Party Inspection is available.
Q4. What are the advantages of your company ?
A4: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.
Q5. How many coutries you already exported ?
A5: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan, India, etc.
Q6. Can you provide sample ?
A6: Small samples in store and can provide the samples for free. Customized samples will take about 5-7days.
