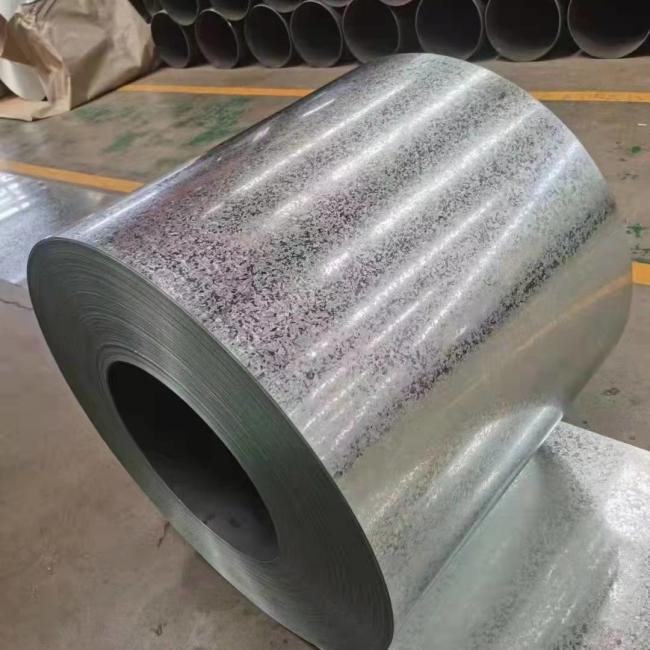

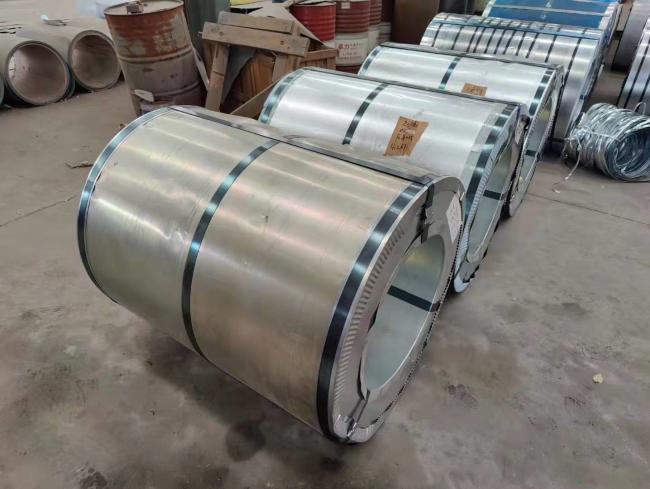

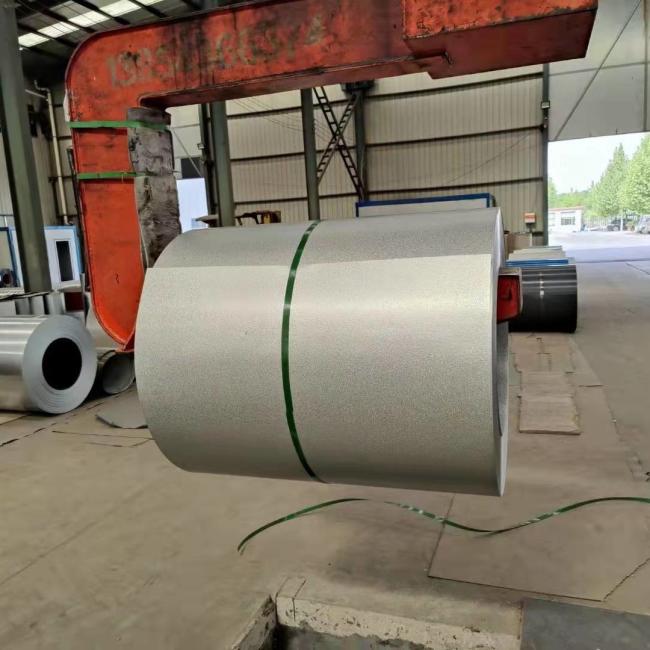

EN10147 ASTM Galvanized Steel Coil Coated Iron Sheet Rolled Z30 Zinc
|
Technical Standard |
EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653 |
|
Steel Grade |
Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490, SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement |
|
Type |
Coil/Sheet/Plate/Strip |
|
Thickness |
0.12-6.00mm, or customer's requirement |
|
Width |
600mm-1500mm, according to customer's requirement |
|
Type of Coating |
Hot Dipped Galvanized Steel(HDGI) |
|
Zinc Coating |
30-275g/m2 |
|
Surface Treatment |
Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U) |
|
Surface Structure |
Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS) |
|
Quality |
Approved by SGS, ISO |
|
Coil Weight |
3-20 metric ton per coil |
|
Package |
Water-proof paper is inner packing, galvanized steel or coated steel sheet is outer packing, side guard plate, then wrapped by seven steel belt. or according to customer's requirement |
|
Export market |
Europe, Africa, Central Asia, Southeast Asia, Middle East, South America, North America, etc |
01. Anticorrosive:13 years in heavy industrial areas,50 years in the ocean,104 years in the suburbs and 30 years in cities.
02. Cheap:The cost of hot-dip galvanizing is lower than that of other coatings.
03. Reliable:The zinc coating is metallurgically bonded to the steel and forms part of the steel surface,so the coating is more durable.
04. Strong toughness:The galvanized layer forms a special metallurgical structure that can withstand mechanical damage during transportation and use.
05. Comprehensive protection:Every part of the plated piece can be galvanized,and is fully protected even in depressions,sharp corners,and hidden places.
06. Save time and energy:Galvanizing process is faster than other coating methods.
